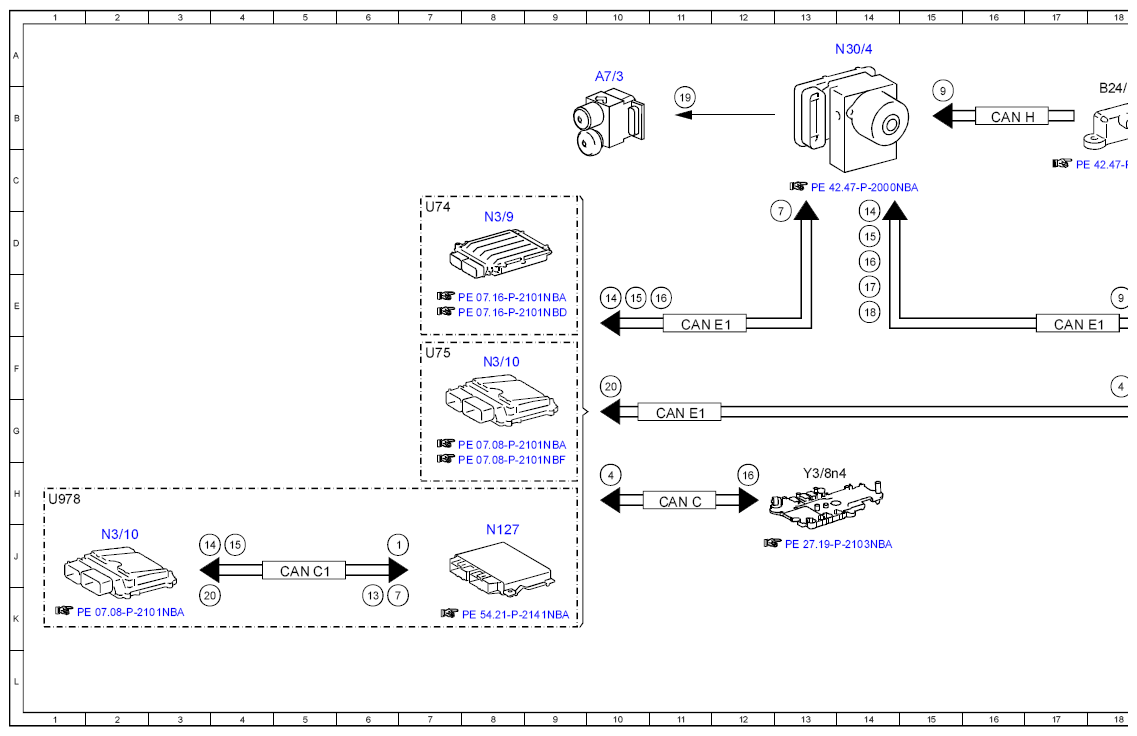

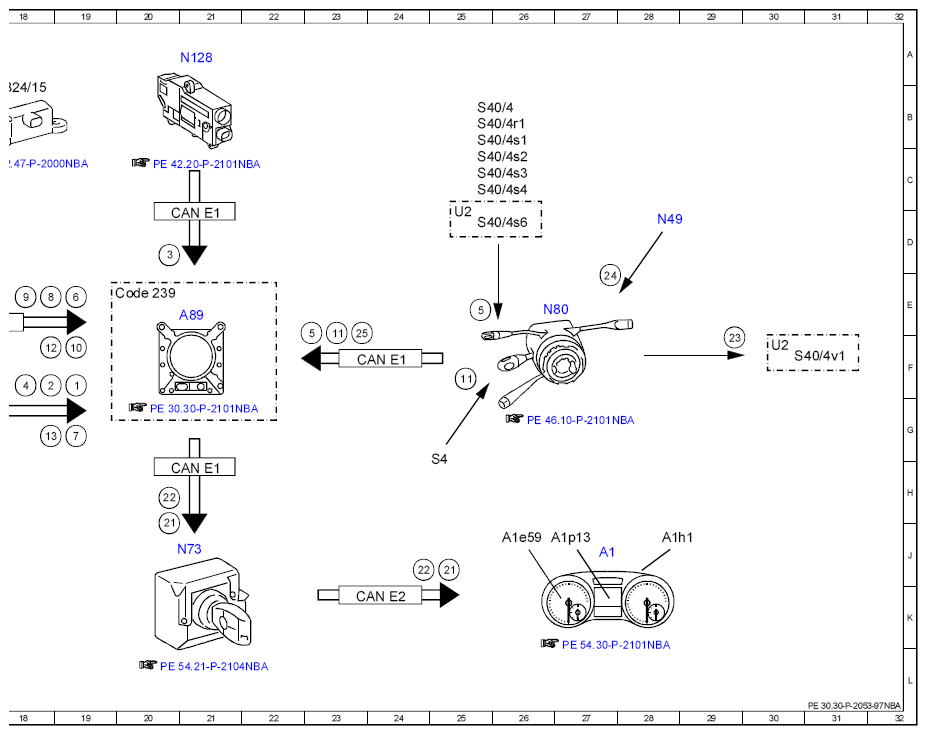

Distronic Plus Electrical Function Schematic - PE30.30-P-2053-97NBA
MODEL 166 as of model year 2016 with CODE 239 (DISTRONIC PLUS)
MODEL 292 with CODE 239 (DISTRONIC PLUS)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 6J |
| 1 | Engine running, signal | 19F |
| 10 | Wheel angle, signal | 19F |
| 11 | Combination switch, status | 25F |
| 11 | Combination switch, status | 23F |
| 12 | Brake pedal, status | 19F |
| 13 | Accelerator pedal, status | 6K |
| 13 | Accelerator pedal, status | 18G |
| 14 | Engine torque, increase request | 3J |
| 14 | Engine torque, increase request | 10E |
| 14 | Engine torque, increase request | 14D |
| 15 | Engine torque, reduce request | 4J |
| 15 | Engine torque, reduce request | 10E |
| 15 | Engine torque, reduce request | 14D |
| 16 | Engage targeted gear, request | 11E |
| 16 | Engage targeted gear, request | 14D |
| 16 | Engage targeted gear, request | 12H |
| 17 | Braking torque increase, request | 14D |
| 18 | Braking torque reduction, request | 14E |
| 19 | Traction system hydraulic unit, actuation | 11B |
| 2 | Drivetrain operational, signal | 18F |
| 20 | Object information, data package | 10F |
| 20 | Object information, data package | 3K |
| 21 | Warning and system messages, request | 20J |
| 21 | Warning and system messages, request | 25J |
| 22 | Warning tone, request | 20H |
| 22 | Warning tone, request | 24J |
| 23 | Light-emitting diode actuation | 29F |
| 24 | Steering wheel angle sensor, signal | 27E |
| 25 | Steering wheel angle, signal | 23F |
| 3 | Parking brake, status | 20D |
| 4 | Gear range, status | 10H |
| 4 | Gear range, status | 18F |
| 5 | CRUISE CONTROL lever, signal | 23F |
| 5 | CRUISE CONTROL lever, signal | 25E |
| 6 | Wheel speed, signal | 19E |
| 7 | Available torque, signal | 6K |
| 7 | Available torque, signal | 13D |
| 7 | Available torque, signal | 19G |
| 8 | Braking torque, signal | 18E |
| 9 | Turn rate, lateral and longitudinal acceleration sensor, signal | 15B |
| 9 | Turn rate, lateral and longitudinal acceleration sensor, signal | 18E |
| A1 | Instrument cluster | 27J |
| A1e59 | DISTRONIC warning lamp | 26J |
| A1h1 | Warning buzzer | 28J |
| A1p13 | Multifunction display | 26J |
| A7/3 | Traction system hydraulic unit | 10A |
| A89 | DISTRONIC electric controller unit | 21E |
| B24/15 | Yaw rate sensor for lateral and longitudinal acceleration | 18B |
| CAN | C Drive train CAN | 11H |
| CAN | C1 Engine CAN | 5J |
| CAN | E1 Chassis CAN 1 | 11G |
| CAN | E1 Chassis CAN 1 | 11E |
| CAN | E1 Chassis CAN 1 | 21H |
| CAN | E1 Chassis CAN 1 | 17E |
| CAN | E1 Chassis CAN 1 | 21D |
| CAN | E1 Chassis CAN 1 | 24F |
| CAN | E2 Chassis CAN 2 | 24K |
| CAN | H Vehicle dynamics CAN | 16B |
| Code | 239 DISTRONIC PLUS | 19E |
| N127 | Drivetrain control unit | 8J |
| N128 | Electric parking brake control unit | 21A |
| N3/10 | ME-SFI [ME] control unit | 2J |
| N3/10 | ME-SFI [ME] control unit | 8F |
| N3/9 | CDI control unit | 8D |
| N30/4 | Electronic Stability Program control unit | 14A |
| N49 | Steering wheel angle sensor | 28D |
| N73 | Electronic ignition switch control unit | 21J |
| N80 | Steering column module control unit | 26E |
| S4 | Combination switch | 25H |
| S40/4 | Cruise control lever | 25B |
| S40/4r1 | DISTRONIC control | 25B |
| S40/4s1 | Resume from memory switch | 25B |
| S40/4s2 | Decelerate and set switch | 25C |
| S40/4s3 | Accelerate and set switch | 25C |
| S40/4s4 | OFF switch | 25C |
| S40/4s6 | SPEEDTRONIC switch | 25D |
| S40/4v1 | SPEEDTRONIC light emitting diode | 30F |
| U2 | Valid for all except USA | 25D |
| U2 | Valid for all except USA | 30F |
| U74 | Valid for diesel engines | 7C |
| U75 | Valid for gasoline engines | 7F |
| U978 | Valid for hybrid drive | 1H |
| Y3/8n4 | Fully integrated transmission control unit | 13H |
