Remove/Install Oil Lines Of Oil Cooling For Automatic Transmission - AR27.55-P-0600MNG
Transmission 725.0 in model 253 with engine 177
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove center and rear lower engine compartment lining. | AR61.20-P-1105LW | |
| 2 | Remove bracket (4). | *BA49.10-P-1009-02E | |
| 3 | Remove screw/bolts (6). | *BA27.55-P-1018-01D | |
| 4 | Remove oil lines (2, 3) from automatic transmission (1). | AR27.10-P-0501-03LF | |

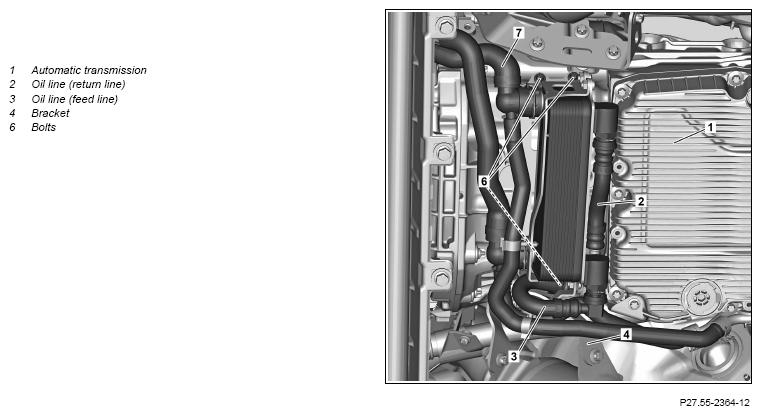

| Fig 1 | |||
| 5 | Seal openings in automatic transmission (1) using suitable stop plugs. | Fig 1 | |
| 6 | Remove oil lines (2, 3) from oil cooler. | AR27.10-P-0501-03LF | |
| Fig 1 | |||
| 7 | Seal openings in oil cooler using suitable stop plugs. | Fig 1 | |
| 8 | Remove oil lines (2, 3) downwards. | ||
| 9 | Check seals in oil cooler and in threaded fitting in automatic transmission (1) for any signs of leakage. | If the seals are leaky, ↓ replace threaded fitting in automatic transmission (1) or oil cooler. |
|
| AR27.55-P-1000MNG | |||
| *BA27.10-P-1007-04H | |||
| 10 | Install in the reverse order. | ||
| 11 | Check and correct oil level in automatic transmission (1). | AR27.00-P-0270EWN | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Perform engine test run, while ding so check automatic transmission (1) for proper operation and the oil lines (2, 3) for leak tightness. | ||
| 13 | Install center and rear lower engine compartment lining. | AR61.20-P-1105LW |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.10-P-1007-04H | Threaded fitting for oil line to torque converter housing | Nm | 40 |
OIL COOLING
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.55-P-1018-01D | Bolt, oil cooler to transmission | Nm | 12 |
EXHAUST SYSTEM
| Number | Designation | Engine 177 in model 253 | |
|---|---|---|---|
| BA49.10-P-1009-02E | Bolt, exhaust system bracket to transmission | Nm | 20 |
