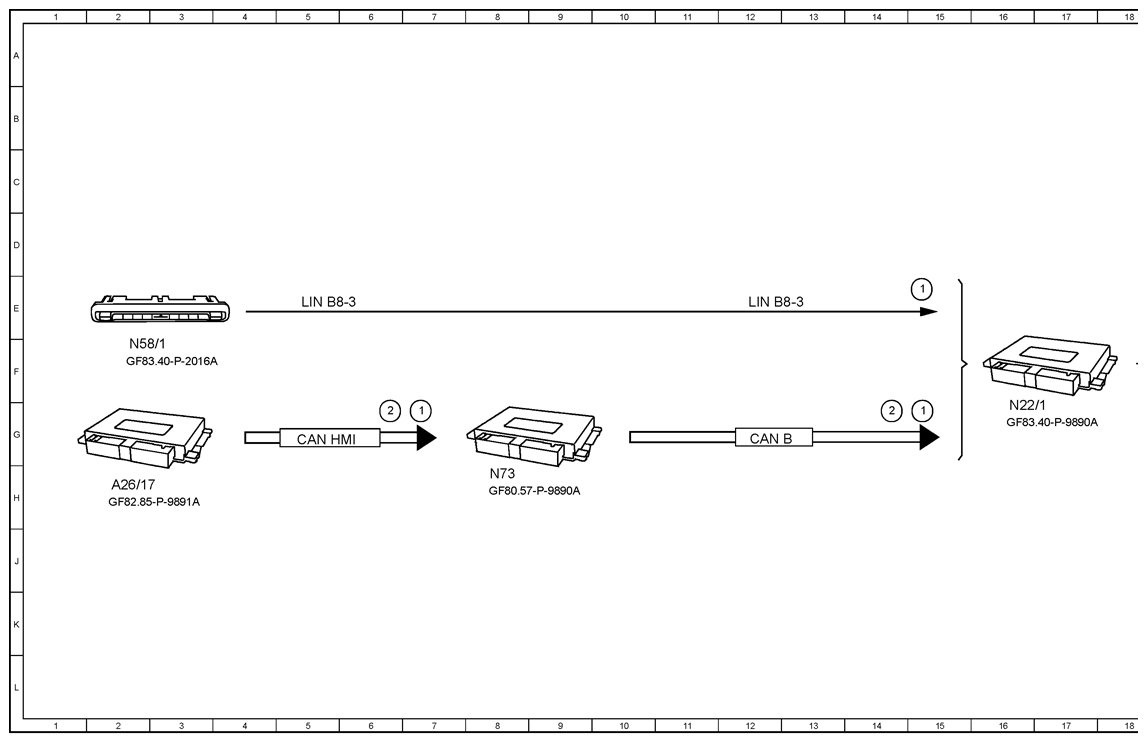

(Function Schematic For Actuating Ionization - PE83.80-P-2502-97A)
Model 167 with code P21 (Air quality package)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 15G |
| 1 | Operation, signal | 15E |
| 1 | Operation, signal | 7G |
| 2 | Switch on ionization, request | 7G |
| 2 | Switch on ionization, request | 15G |
| 3 | Ionizer, actuation | 21F |
| A26/17 | Head unit | 2H |
| CAN B | Interior CAN | 12G |
| CAN HMI | User interface CAN | 5G |
| LIN B8 | 2 Climate control LIN 2 | 19F |
| LIN B8 | 3 AC operation LIN | 12E |
| LIN B8 | 3 AC operation LIN | 5E |
| N18/9 | Driver side air vent ionizer | 21G |
| N22/1 | Climate control, control unit | 16G |
| N58/1 | Climate control operating unit | 2F |
| N73 | Electronic ignition switch control unit | 8H |
