Air Quality Sensor, Basic Function - GF83.40-P-2022A
Model all (CAR)
with code 581 (Automatic air conditioning)
Model all (CAR)
with code 830 (China version)
General
The air quality sensor records the concentration of the following pollutants in the outside air:
- Carbon monoxide (CO)
- Nitrogen oxides (NOx )
The air quality sensor sends switching recommendations to the climate control. It regulates the pollutant-controlled air-recirculation mode depending on this.

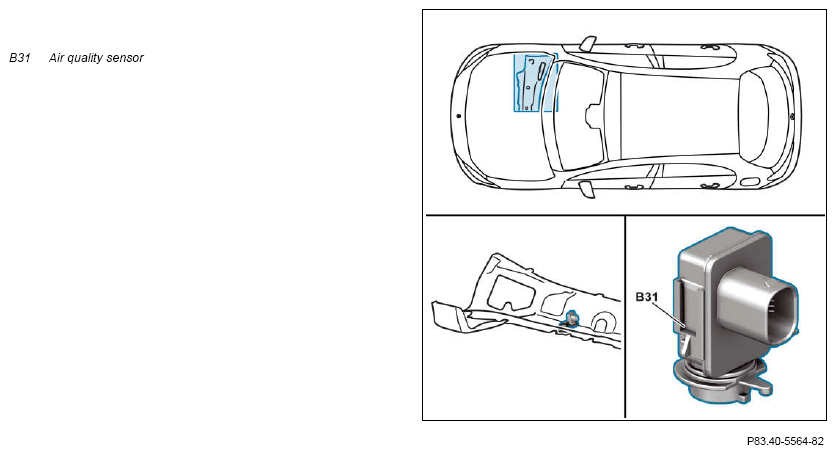

Location
The air quality sensor is fastened to the air/water duct with a holder.
Function requirements
- Circuit 15 ON
- Climate control switched on
