Air Conditioner Housing, Basic Function - GF83.40-P-2015A
Model all (CAR)

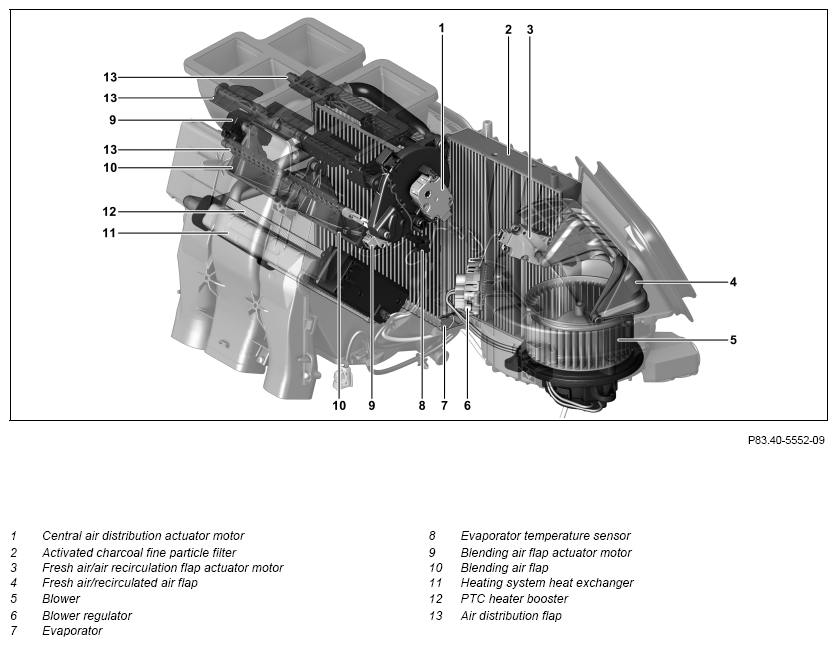

Shown on 2-zone automatic climate control
Depending on the vehicle model and the equipment installed, additional actuator motors and air flaps may be located in the air conditioner housing and in the air ducts under the center console.
General
The components of the climate control system, which are responsible for air delivery, filtering and temperature control, are located in the air conditioner housing.
Location
The air conditioner housing is located between the instrument panel and the firewall.
Function requirement
- Circuit 30t ON
