Remove/Install Line From Cartridge To Inerting System In Engine Compartment - AR86.10-P-0219LWE

Model 205, 213, 253 with engine 177, 256, 264, 274, 276

with code 2U8 (Alternative refrigerant)

Model 238 with engine 256, 264, 274, 276

with code 2U8 (Alternative refrigerant)

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove rear fender liner in right front fender.	Model 213 with engine 177, 256, 264, 274, 276 with code 2U8 (Alternative refrigerant) Model 238 with engine 256, 264, 274, 276 with code 2U8 (Alternative refrigerant)	AR88.10-P-1300LWE
		Model 205, 253 with engine 177, 264, 274, 276 with code 2U8 (Alternative refrigerant)	AR88.10-P-1300LW

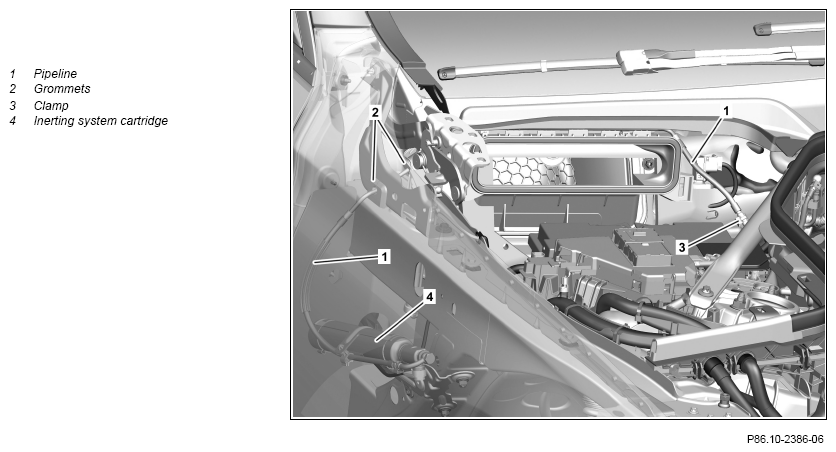

2	Open clamp of piping (1) and remove piping (1) from inerting system cartridge (4).	Installation:  Replace clamp on piping (1).
3	Remove air duct segment with dust filter below the right engine compartment cover.
		Model 213, 253 with engine 177, 256, 264, 274, 276 with code 2U8 (Alternative refrigerant) Model 238 with engine 256, 264, 274, 276 with code 2U8 (Alternative refrigerant)	AP83.00-P-8381C
		Model 205 with engine 177, 264, 274, 276 with code 2U8 (Alternative refrigerant)	AP83.00-P-8381B
4	Open clamp (3) and remove piping (1) from distributor.	Installation:  Replace hose clamp (3).
5	Expose piping (1) and remove.	Observe installation position of grommets (2).
	Check
6	Check piping (1) for damage and plugging.	If there is a problem, ↓ replace piping (1).
7	Install in the reverse order
