Remove/Install Left Inerting System Line In Engine Compartment - AR86.10-P-0319LWE

Model 205, 213, 253 with engine 276

with code 2U8 (Alternative refrigerant)

Model 238 with engine 276

with code 2U8 (Alternative refrigerant)

Courtesy of MERCEDES-BENZ USA

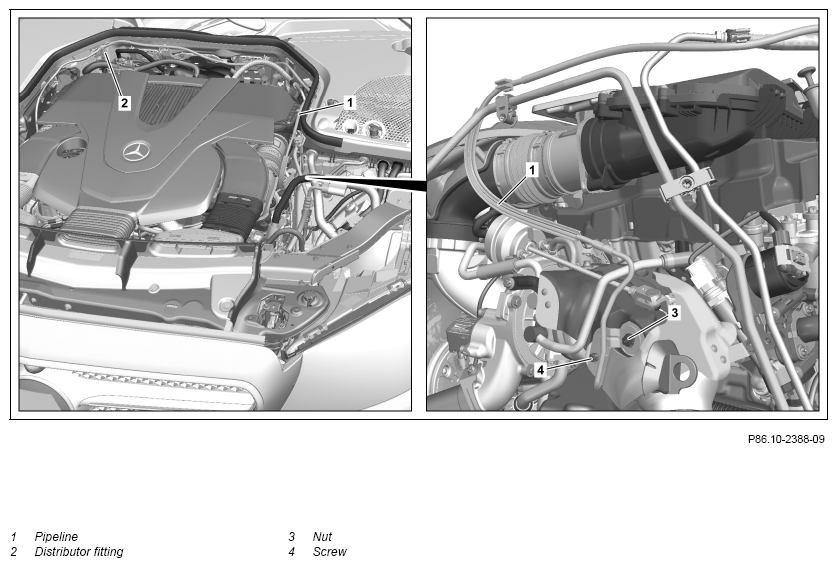

Shown on engine 276

	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Remove/install
1	Remove left-hand air filter housing	Model 205, 253 with engine 276.8 with code 2U8 (Alternative refrigerant)	AR09.10-P-1150MMV
		Model 213, 238 with engine 276.8 with code 2U8 (Alternative refrigerant)	AR09.10-P-1151MND
2	Unscrew bolt (4) and nut (3)	Pipe for inerting to engine	*BA86.10-P-1002-03E
3	Open clamp of pipe (1) and remove pipe (1) from distributor (2)	Installation:  Replace clamp on pipe (1).
4	Loosen pipe (1) from retaining clips and remove
	Check
5	Check pipe (1) for damage and plugging	In the event of complaints ↓ Replace pipe (1).
6	Install in the reverse order
