Remove/Install Inertization Cartridge - AR86.10-P-0106LWE

Model 205, 253 with engine 177, 274, 276

with code 2U8 (Alternative refrigerant)

Model 213 with engine 177, 256, 264, 274, 276

with code 2U8 (Alternative refrigerant)

Model 238 with engine 256, 264, 274, 276

with code 2U8 (Alternative refrigerant)

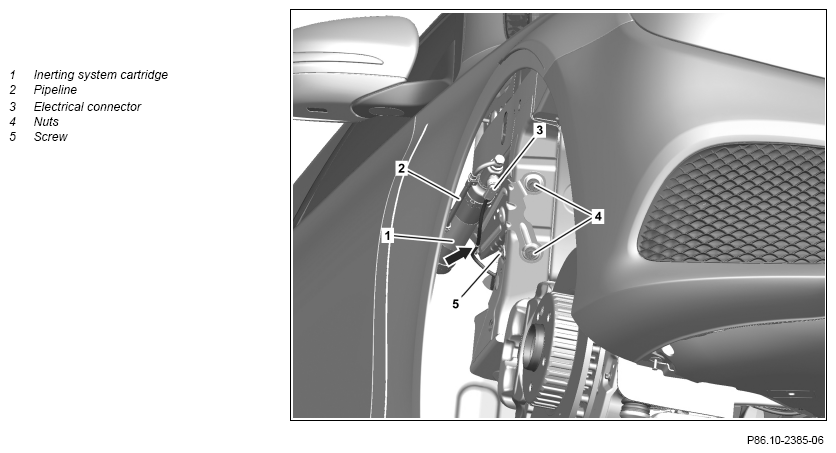

Shown on model 205

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Disconnect ground line from battery.	Model 238 with engine 256, 264, 274, 276 with code 2U8 (Alternative refrigerant)	AR54.10-P-0003LWO
		Model 205, 253 with engine 177, 274, 276 with code 2U8 (Alternative refrigerant) Model 213 with engine 177, 256, 264, 274, 276 with code 2U8 (Alternative refrigerant)	AR54.10-P-0003LW
2	Remove rear fender liner in right front fender.	Model 213 with engine 177, 256, 264, 274, 276 with code 2U8 (Alternative refrigerant) Model 238 with engine 256, 264, 274, 276 with code 2U8 (Alternative refrigerant)	AR88.10-P-1300LWE
		Model 205, 253 with engine 177, 274, 276 with code 2U8 (Alternative refrigerant)	AR88.10-P-1300LW
3	Open clamp of the piping (2) and remove piping (2) from the inerting system cartridge (1).	Installation:  Replace clamp on pipe (2).
4	Disconnect cable tie (arrow).	Installation:  Replace cable tie (arrow).
5	Disconnect electrical connector (3).	Removal lever	Fig 1
6	Remove screw (5).
7	Unscrew nuts (4) and remove inerting system cartridge (1) with the bracket.	Nut, holder for pressure medium reservoir to body	*BA86.10-P-1001-03E
8	Disconnect electrical connector from the alarm siren and unclip the electric line from the bracket of the inerting system cartridge (1).	Model 205, 253 with engine 177, 274, 276 with code 228 (Auxiliary heater) with code 2U8 (Alternative refrigerant) with code 882 (Interior protection and tow-away protection) Model 213 with engine 177, 256, 264, 274, 276 with code 228 (Auxiliary heater) with code 2U8 (Alternative refrigerant) with code 882 (Interior protection and tow-away protection) Model 238 with engine 256, 264, 274, 276 with code 228 (Auxiliary heater) with code 2U8 (Alternative refrigerant) with code 882 (Interior protection and tow-away protection)
9	Install in the reverse order.

Fig 1: Identifying Removal Lever (203 589 04 33 00)

Courtesy of MERCEDES-BENZ USA
