Check And Lubricate Hand Control Unit - AP86.20-P-8650C
Model 156, 169, 172, 176, 177, 204, 205, 207, 212, 213, 218, 221, 222, 223, 238, 245, 246, 247, 253, 257 with code 45P (Disability conversion - Sales control code)
Classic operating lever
Compact operating lever
Multima2 operating lever
| Check | |||

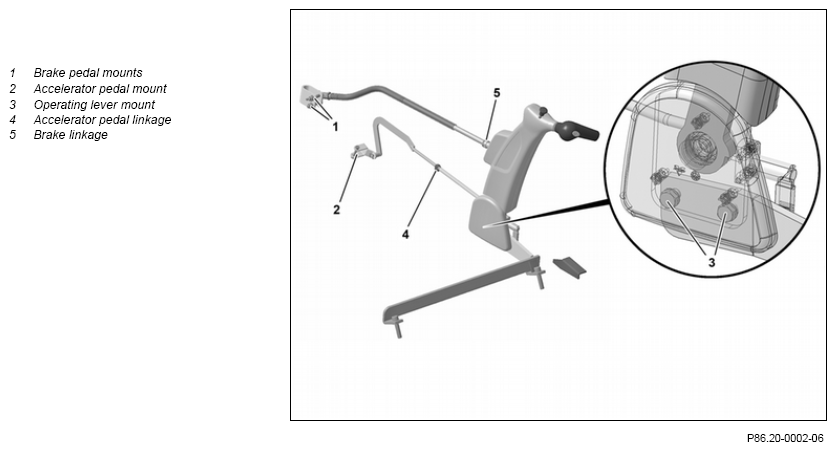

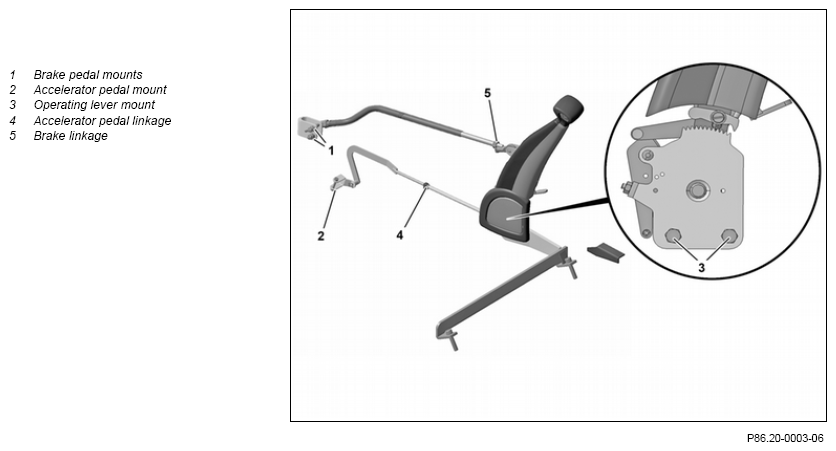

| 1 | Check that brake pedal mounts (1) are firmly seated. | Vehicle with Classic operating lever or Compact operating lever. If the mounts at the brake pedal (1) are not adequately fastened. ↓ Retighten mounts at brake pedal (1). |
|
| 2 | Check that accelerator pedal mount (2) is firmly seated. | Vehicle with Classic operating lever or Compact operating lever. If the mounts at the accelerator pedal (2) are not adequately fastened. ↓ Retighten mounts at accelerator pedal (2). |
|

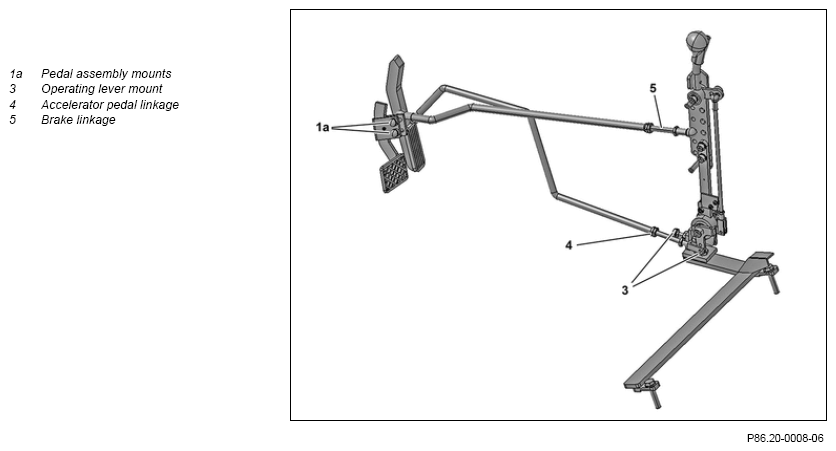

| 3 | Check that the pedal assembly mounts (1a) are firmly seated. | Vehicle with Multima2 operating lever. If the mounts at the pedal assembly (1a) are no adequately fastened. ↓ Retighten pedal assembly mounts (1a). |
|
| 4 | Check control lever mounts (3) are firmly seated. | If the mounts at the control lever (3) are not adequately fastened. ↓ Retighten mounts at control lever (3). |
|
| 5 | Check play of accelerator pedal linkage (4). | If the play of the accelerator pedal linkage (4) is incorrect. ↓ Adjust play in accelerator pedal linkage (4). |
|
| 6 | Check play of brake linkage (5). | If the play of the brake linkage (5) is incorrect. ↓ Adjust play in brake linkage (5). |
|
| Lubricate | |||
| 7 | Lubricate movable mounts at accelerator and brake pedal connections. | ||
| 8 | Lubricate movable mount of accelerator pedal linkage at control lever. |
