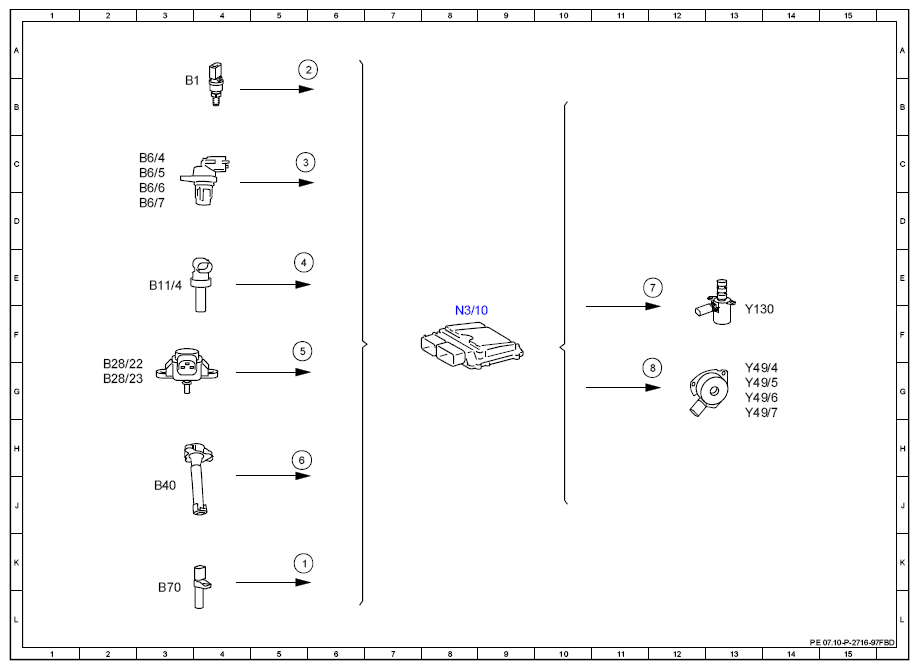

Electrical Function Schematic For Camshaft Adjustment - PE07.10-P-2716-97FBD

Engine 177.9 in model 205, 253

Code: Designation: Position:
1 Crankshaft Hall sensor, signal 5K
2 Oil temperature sensor, signal 5A
3 Camshaft Hall sensor, signal 5C
4 Coolant temperature sensor, signal 5E
5 Pressure sensor downstream of throttle valve, signal 5F
6 Oil sensor (oil level, temperature and quality), signal 5H
7 Engine oil pump valve, actuation 12E
8 Camshaft solenoids, actuation 12G
B1 Engine oil temperature sensor 3B
B11/4 Coolant temperature sensor 3E
B28/22 Left pressure sensor downstream of throttle valve 2G
B28/23 Right pressure sensor downstream of throttle valve 2G
B40 Oil sensor (oil level, temperature and quality) 3J
B6/4 Left intake camshaft Hall sensor 3C
B6/5 Right intake camshaft Hall sensor 3C
B6/6 Left exhaust camshaft Hall sensor 3D
B6/7 Right exhaust camshaft Hall sensor 3D
B70 Crankshaft Hall sensor 3L
N3/10 ME-SFI [ME] control unit 8F
Y130 Engine oil pump valve 13F
Y49/4 Left intake camshaft solenoid 13G
Y49/5 Right intake camshaft solenoid 13G
Y49/6 Left exhaust camshaft solenoid 13G
Y49/7 Right exhaust camshaft solenoid 13G
G12816938Courtesy of MERCEDES-BENZ USA
