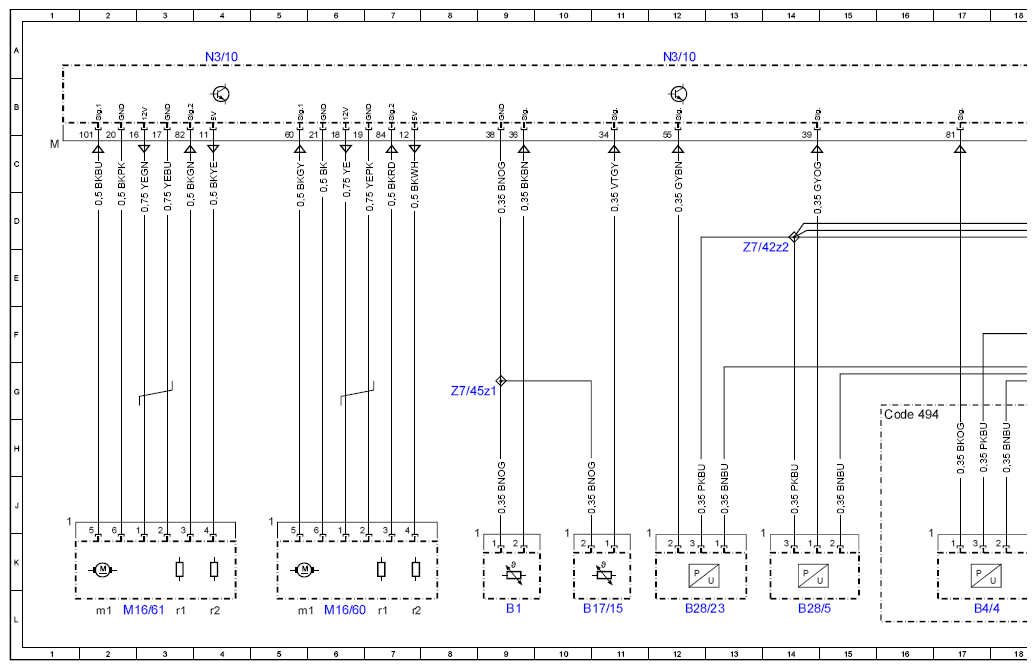

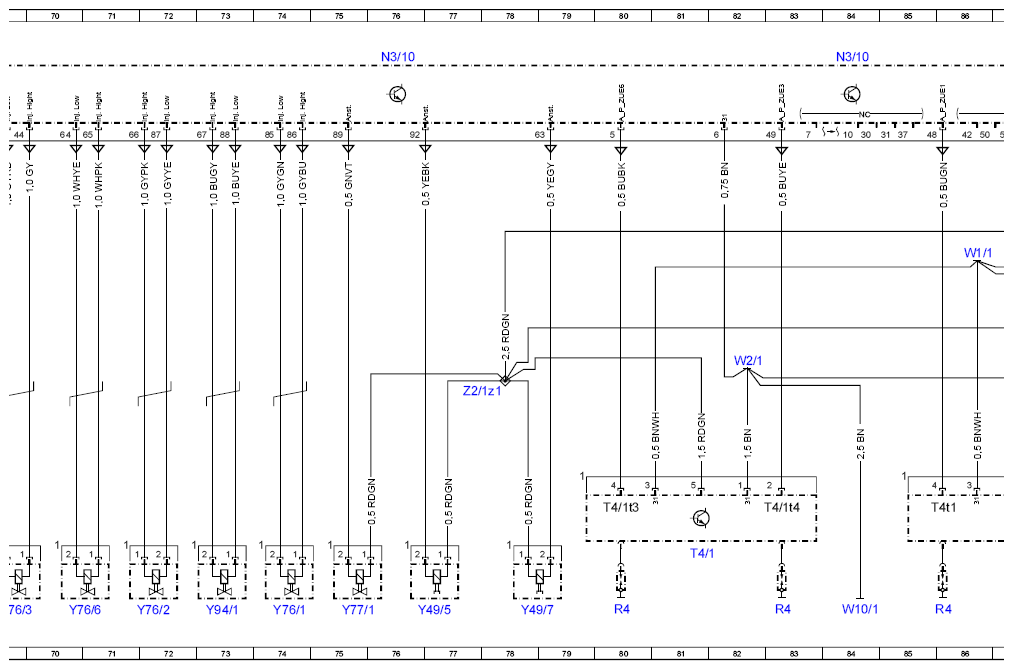

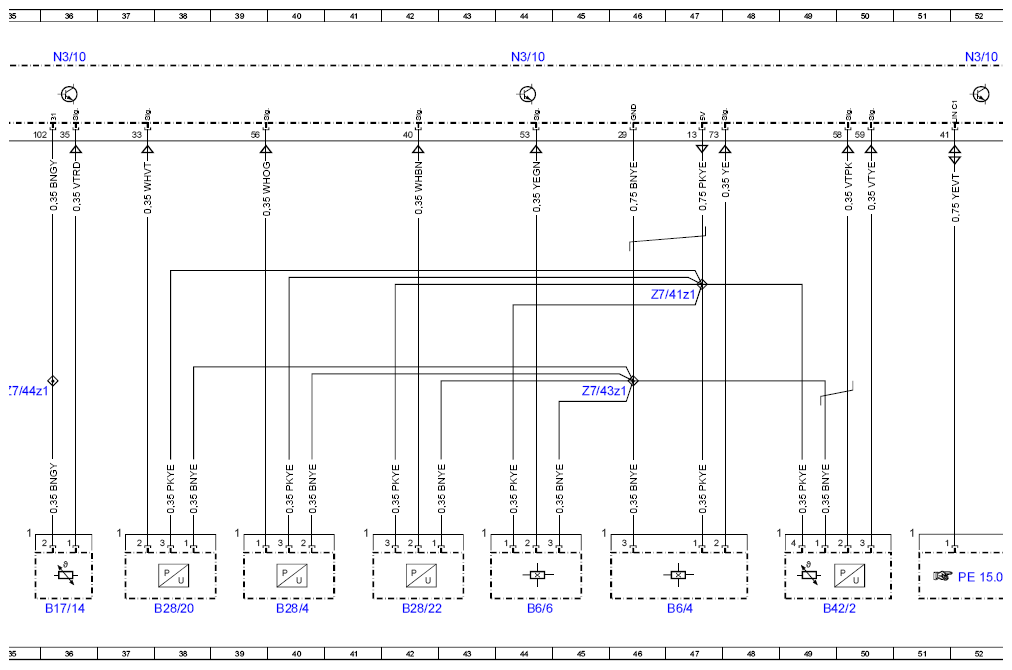

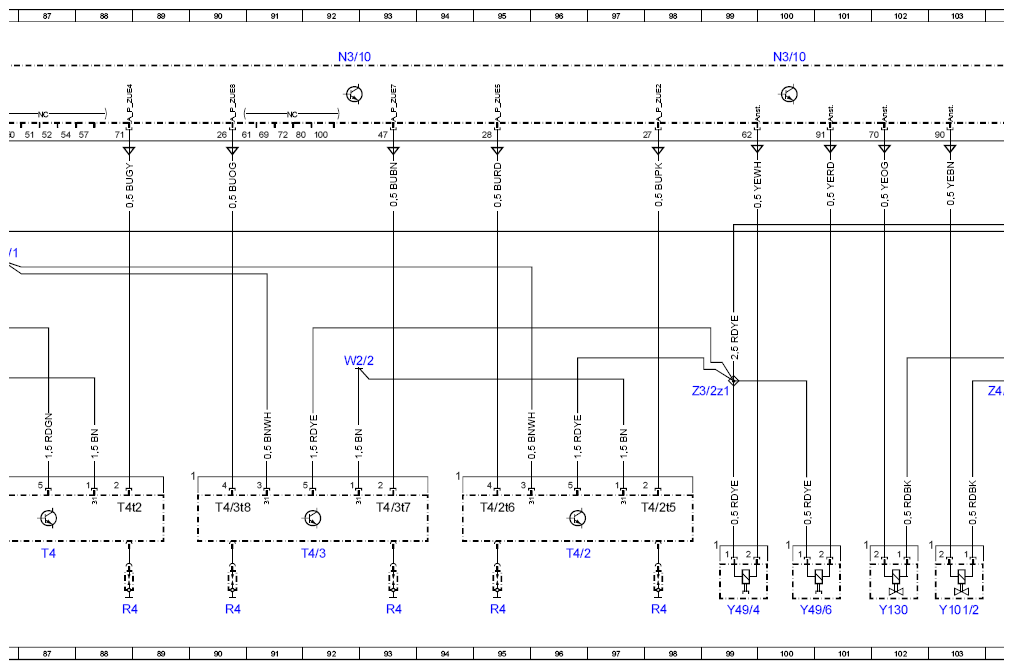

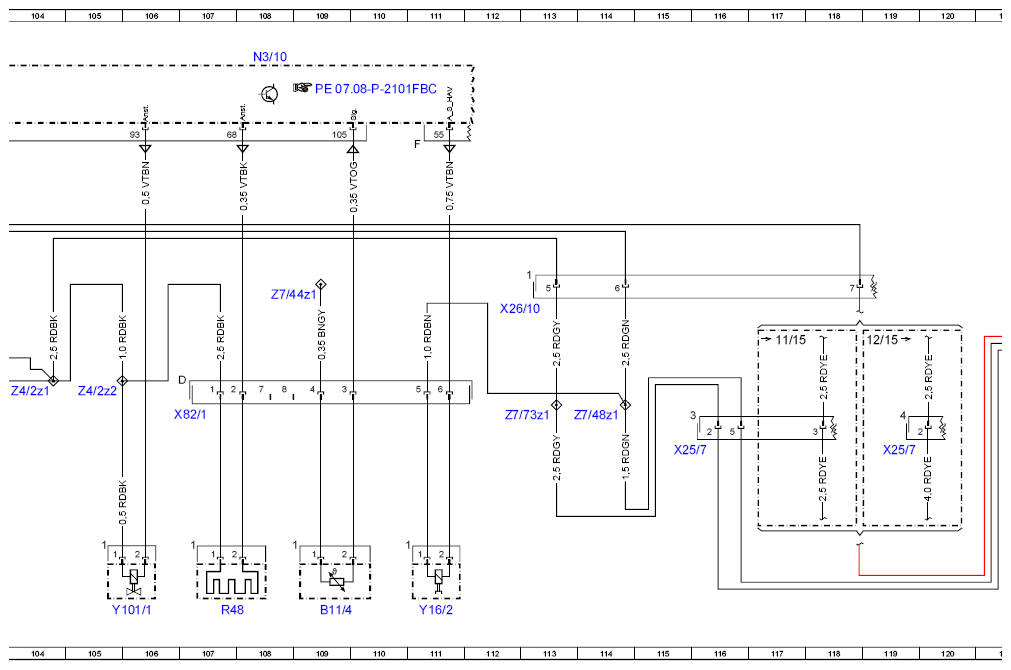

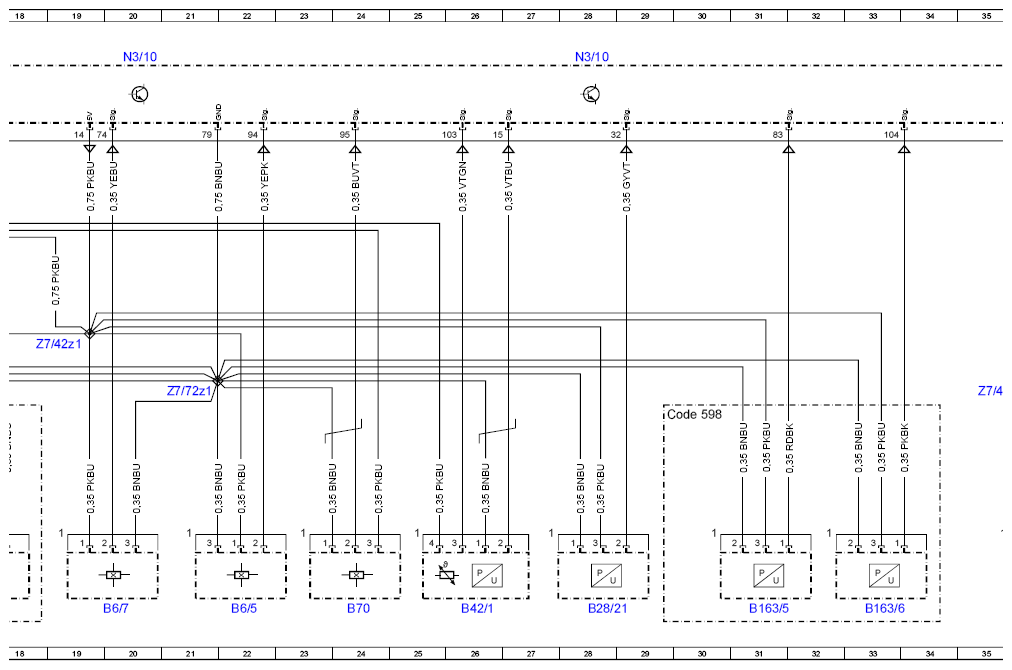

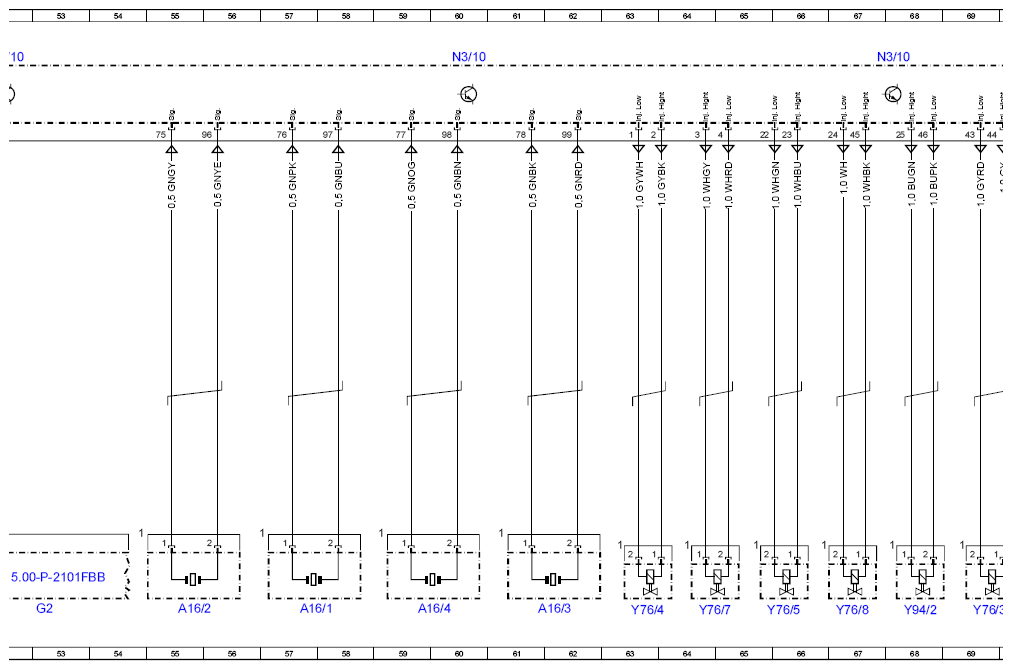

Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97FBD
Engine 177 in model 205 up to model year 2019 Control unit N3/10, engine side Engine 177 in model 253 up to model year 2020 Control unit N3/10, engine side
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 129L |
| A16/1 | Knock sensor 1 | 57L |
| A16/2 | Knock sensor 2 | 55L |
| A16/3 | Knock sensor 3 | 62L |
| A16/4 | Knock sensor 4 | 59L |
| B1 | Engine oil temperature sensor | 9L |
| B11/4 | Coolant temperature sensor | 109L |
| B163/5 | Left gasoline particulate filter differential pressure sensor | 31L |
| B163/6 | Right gasoline particulate filter differential pressure sensor | 33L |
| B17/14 | Left charge air temperature sensor | 36L |
| B17/15 | Right charge air temperature sensor | 11L |
| B28/20 | Left pressure sensor upstream of throttle valve | 38L |
| B28/21 | Right pressure sensor upstream of throttle valve | 28L |
| B28/22 | Left pressure sensor downstream of throttle valve | 42L |
| B28/23 | Right pressure sensor downstream of throttle valve | 12L |
| B28/4 | Pressure sensor downstream air filter, left cylinder bank | 40L |
| B28/5 | Pressure sensor downstream of air filter, right cylinder bank | 14L |
| B4/4 | Purging pressure sensor | 17L |
| B42/1 | Right fuel pressure and temperature sensor | 26L |
| B42/2 | Left fuel pressure and temperature sensor | 49L |
| B6/4 | Left intake camshaft Hall sensor | 47L |
| B6/5 | Right intake camshaft Hall sensor | 22L |
| B6/6 | Left exhaust camshaft Hall sensor | 44L |
| B6/7 | Right exhaust camshaft Hall sensor | 20L |
| B70 | Crankshaft Hall sensor | 24L |
| Code 494 | USA version | 16G |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 29G |
| G2 | Alternator | 53L |
| K40/8 | Engine fuse and relay module | 126L |
| K40/8f101 | Fuse 101 | 123L |
| K40/8f103 | Fuse 103 | 122L |
| K40/8f104 | Fuse 104 | 125L |
| M16/60 | Left throttle valve actuator | 6L |
| M16/60m1 | Left throttle valve actuator motor | 5L |
| M16/60r1 | Left actual value potentiometer 1 | 7L |
| M16/60r2 | Left actual value potentiometer 2 | 7L |
| M16/61 | Right throttle valve actuator | 2L |
| M16/61m1 | Right throttle valve actuator motor | 2L |
| M16/61r1 | Right actual value potentiometer 1 | 3L |
| M16/61r2 | Right actual value potentiometer 2 | 4L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 44A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 60A |
| N3/10 | ME-SFI [ME] control unit | 67A |
| N3/10 | ME-SFI [ME] control unit | 76A |
| N3/10 | ME-SFI [ME] control unit | 84A |
| N3/10 | ME-SFI [ME] control unit | 92A |
| N3/10 | ME-SFI [ME] control unit | 100A |
| N3/10 | ME-SFI [ME] control unit | 108A |
| R4 | Spark plugs | 80L |
| R4 | Spark plugs | 83L |
| R4 | Spark plugs | 90L |
| R4 | Spark plugs | 95L |
| R4 | Spark plugs | 93L |
| R4 | Spark plugs | 86L |
| R4 | Spark plugs | 88L |
| R4 | Spark plugs | 98L |
| R48 | Coolant thermostat heating element | 107L |
| T4 | Cylinder 1+2 ignition coil | 87K |
| T4/1 | Cylinder 3+4 ignition coil | 81K |
| T4/1t3 | Cylinder 3 ignition coil | 80J |
| T4/1t4 | Cylinder 4 ignition coil | 83J |
| T4/2 | Cylinders 5+6 ignition coil | 96K |
| T4/2t5 | Cylinder 5 ignition coil | 98J |
| T4/2t6 | Cylinder 6 ignition coil | 95J |
| T4/3 | Cylinders 7+8 ignition coil | 92K |
| T4/3t7 | Cylinder 7 ignition coil | 93J |
| T4/3t8 | Cylinder 8 ignition coil | 90J |
| T4t1 | Cylinder 1 ignition coil | 85J |
| T4t2 | Cylinder 2 ignition coil | 88J |
| W1/1 | Combustion engine ground point | 86E |
| W10/1 | Left on-board electrical system battery ground point | 84L |
| W2/1 | Right front ground point | 82G |
| W2/2 | Left front ground point | 92G |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 119H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 115H |
| X26/10 | Vehicle interior/engine electrical connector | 112F |
| X82/1 | Engine wiring harness electrical intermediate connector | 107G |
| Y101/1 | Left bypass air switchover valve | 105L |
| Y101/2 | Right bypass air switchover valve | 103L |
| Y130 | Engine oil pump valve | 102L |
| Y16/2 | Heating system shutoff valve | 111L |
| Y49/4 | Left intake camshaft solenoid | 99L |
| Y49/5 | Right intake camshaft solenoid | 77L |
| Y49/6 | Left exhaust camshaft solenoid | 100L |
| Y49/7 | Right exhaust camshaft solenoid | 78L |
| Y76/1 | Cylinder 1 fuel injector | 74L |
| Y76/2 | Cylinder 2 fuel injector | 72L |
| Y76/3 | Cylinder 3 fuel injector | 69L |
| Y76/4 | Cylinder 4 fuel injector | 63L |
| Y76/5 | Cylinder 5 fuel injector | 66L |
| Y76/6 | Cylinder 6 fuel injector | 70L |
| Y76/7 | Cylinder 7 fuel injector | 64L |
| Y76/8 | Cylinder 8 fuel injector | 67L |
| Y77/1 | Boost pressure control pressure transducer | 75L |
| Y94/1 | Left quantity control valve | 73L |
| Y94/2 | Right quantity control valve | 68L |
| Z2/1z1 | Terminal 87/2 | 77G |
| Z3/2z1 | Circuit 87/3 connector sleeve | 99G |
| Z4/2z1 | Terminal 87/4 | 104G |
| Z4/2z2 | Terminal 87/4 | 105G |
| Z7/41z1 | Sensor voltage connector sleeve | 47E |
| Z7/42z1 | Voltage supply connector sleeve | 19F |
| Z7/42z2 | Voltage supply connector sleeve | 14E |
| Z7/43z1 | Sensor ground connector sleeve | 45G |
| Z7/44z1 | Sensor ground connector sleeve | 35G |
| Z7/44z1 | Sensor ground connector sleeve | 108E |
| Z7/45z1 | Ground connection connector sleeve | 8G |
| Z7/48z1 | Circuit 87/2 connector sleeve | 114G |
| Z7/72z1 | Sensor ground connector sleeve | 21G |
| Z7/73z1 | Circuit 87/4 connector sleeve | 113G |
