Remove/Install Left Throttle Valve Actuator - AR07.51-P-1402MNG
Engine 177 in Model 253
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Remove left charge air cooler (2) | AR09.41-P-6827MNG | |

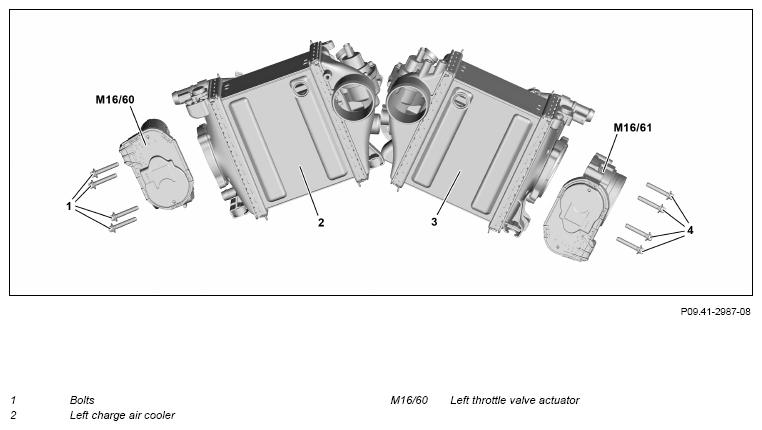

| 2 | Remove screws (1) and remove left throttle valve actuator M16/60) from left charge air cooler (2) | ||
| *BA09.41-P-1008-01X | |||
| 3 | Install in the reverse order | ||
| Risk of accident from Vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure Vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
4 |
Perform an engine test run and check engine for proper operation and leaktightness | ||
| 5 | Install center and front lower engine compartment paneling | AR61.20-P-1105LW |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1008-01X | Bolt, throttle valve actuator to charge air cooler | Nm | 9 |
