Remove/Install Right Rear Engine Suspension Lug - AR01.20-P-5012-02MNG
Engine 177 in model 253
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6X1 | Nm | 9 | 13 |
CYLINDER HEAD
| Number | Designation | Engine 177 | ||
|---|---|---|---|---|
| BA01.30-P-1003-01N | Bolt, heat shield/rear lifting eye to cylinder head | M6 | Nm | 9 |

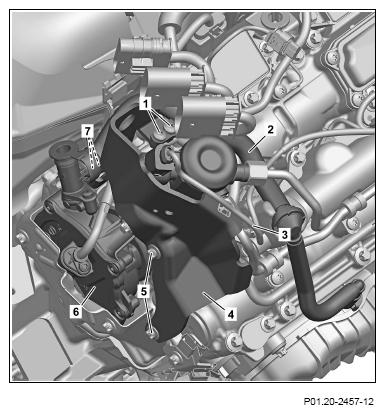

- Remove screw/bolt (1)
.
- Remove vacuum hose (2) from vacuum pump (6) and place to one side.
- Remove bolts (7)
- Unclip electric line (3) from engine lifting lug (4).
- Remove screws (5)
- Remove engine lifting lug (4) in upward direction.
- Install in the reverse order.
