Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97FCB
Engine 177 in model 253 as of model year 2020 Control unit N3/10, engine connector
| Code: | Designation: | Position: |
|---|---|---|

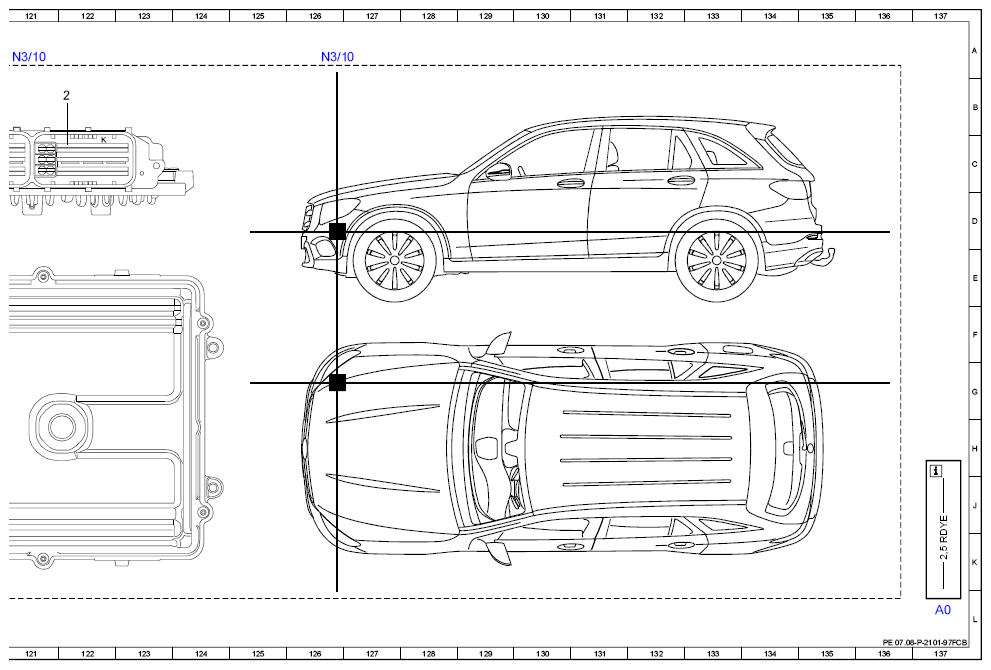

| A0 | Use of wiring diagrams | 137L |

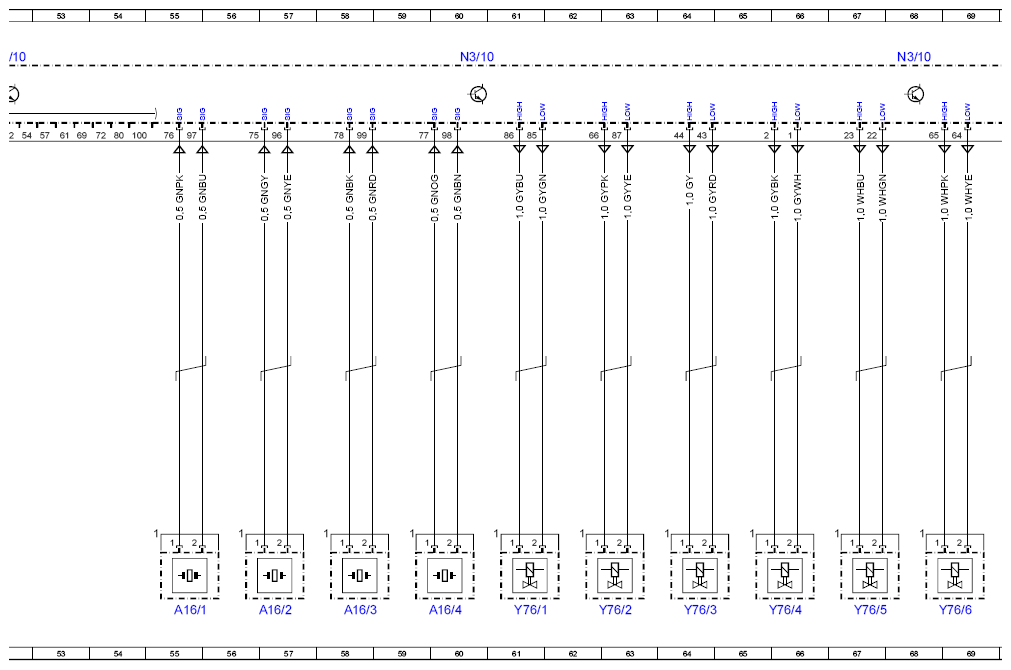

| A16/1 | Knock sensor 1 | 55L |
| A16/2 | Knock sensor 2 | 57L |
| A16/3 | Knock sensor 3 | 58L |
| A16/4 | Knock sensor 4 | 60L |
| B11/4 | Coolant temperature sensor | 102L |
| B163/5 | Left gasoline particulate filter differential pressure sensor | 16L |

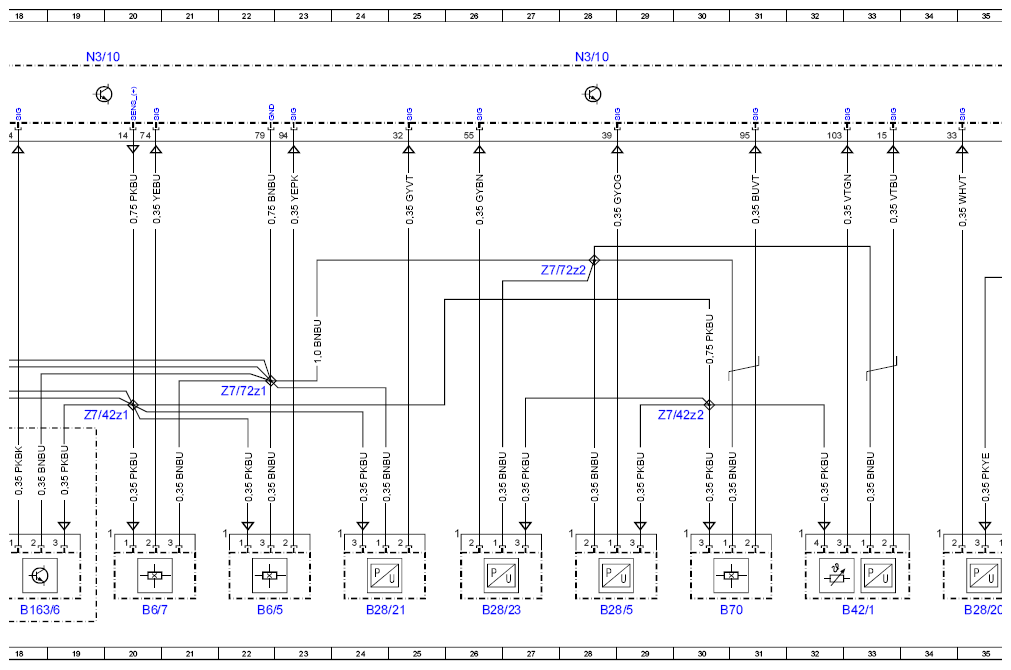

| B163/6 | Right gasoline particulate filter differential pressure sensor | 18L |
| B17/14 | Left charge air temperature sensor | 94L |
| B17/15 | Right charge air temperature sensor | 11L |
| B28/20 | Left pressure sensor upstream of throttle valve | 35L |
| B28/21 | Right pressure sensor upstream of throttle valve | 24L |
| B28/22 | Left pressure sensor downstream of throttle valve | 39L |
| B28/23 | Right pressure sensor downstream of throttle valve | 26L |

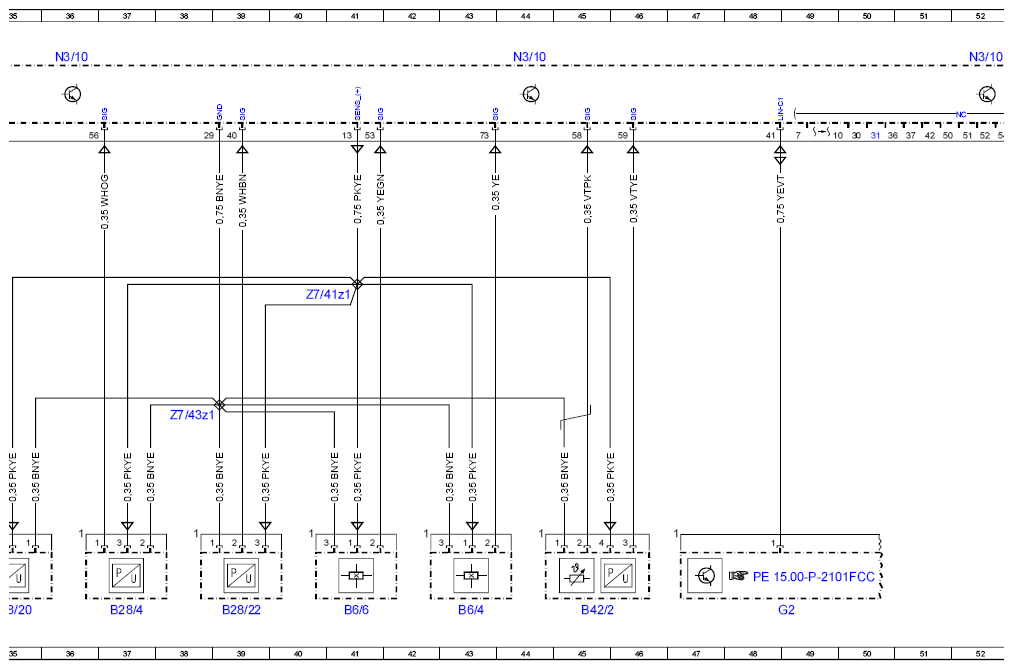

| B28/4 | Pressure sensor downstream air filter, left cylinder bank | 37L |
| B28/5 | Pressure sensor downstream of air filter, right cylinder bank | 28L |
| B4/4 | Purging pressure sensor | 13L |
| B42/1 | Right fuel pressure and temperature sensor | 33L |
| B42/2 | Left fuel pressure and temperature sensor | 45L |
| B6/4 | Left intake camshaft Hall sensor | 43L |
| B6/5 | Right intake camshaft Hall sensor | 22L |
| B6/6 | Left exhaust camshaft Hall sensor | 41L |
| B6/7 | Right exhaust camshaft Hall sensor | 20L |
| B70 | Crankshaft Hall sensor | 30L |
| Code 494 | USA version | 12H |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 15H |
| Code 961 | Exhaust system with OPF, Generation 2.0 | 15H |
| G2 | Alternator | 49L |

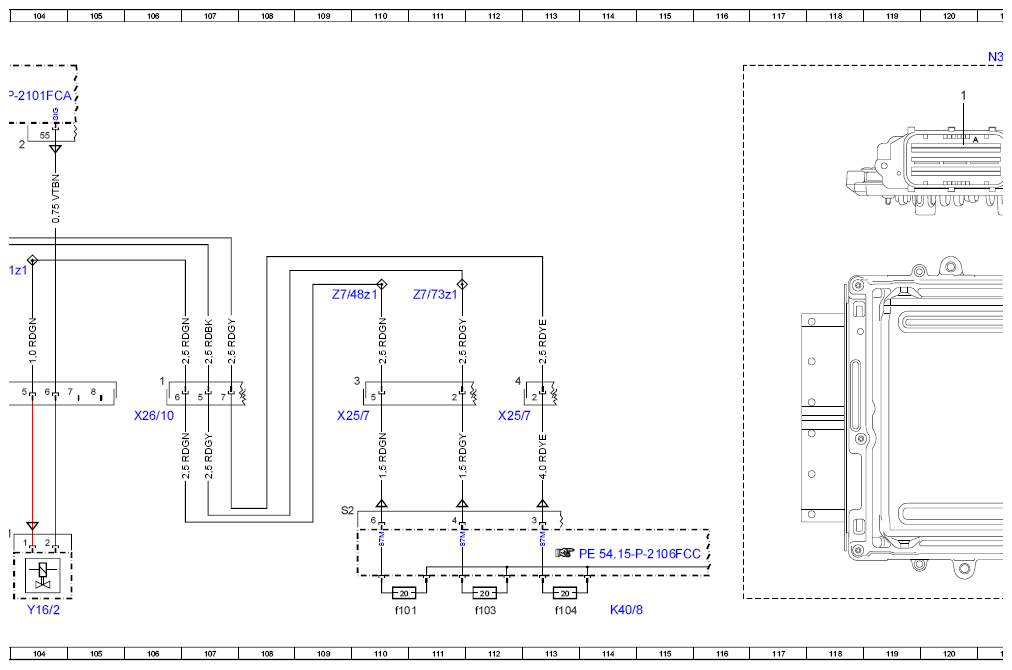

| K40/8 | Engine fuse and relay module | 114L |
| K40/8f101 | Fuse 101 | 110L |
| K40/8f103 | Fuse 103 | 112L |
| K40/8f104 | Fuse 104 | 113L |

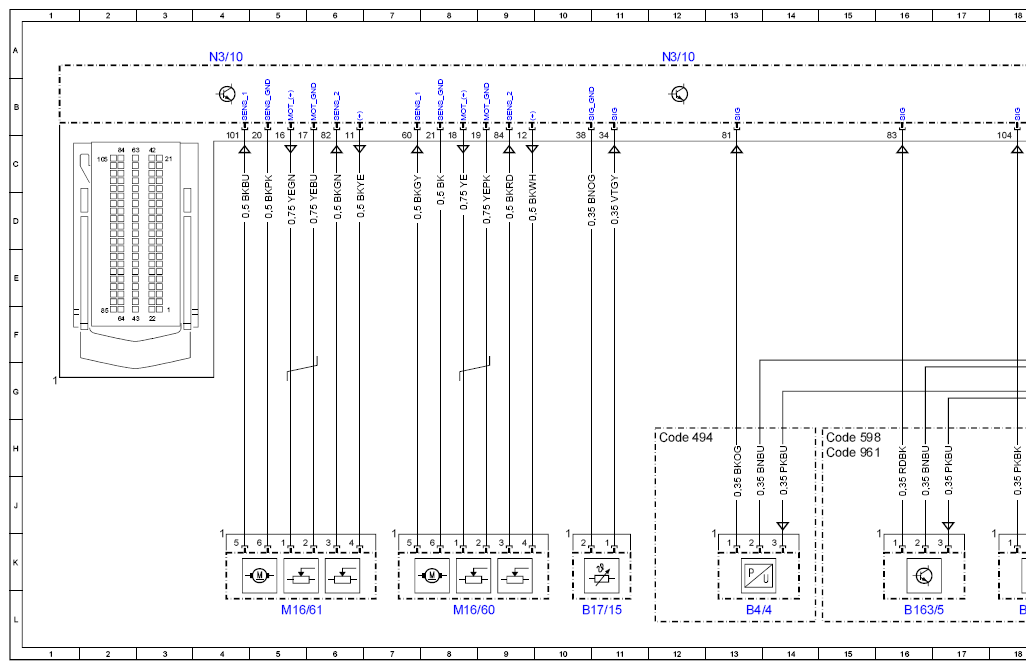

| M16/60 | Left throttle valve actuator | 8L |
| M16/61 | Right throttle valve actuator | 5L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 19A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 44A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 60A |
| N3/10 | ME-SFI [ME] control unit | 68A |
| N3/10 | ME-SFI [ME] control unit | 76A |
| N3/10 | ME-SFI [ME] control unit | 84A |
| N3/10 | ME-SFI [ME] control unit | 92A |
| N3/10 | ME-SFI [ME] control unit | 100A |
| N3/10 | ME-SFI [ME] control unit | 121A |
| N3/10 | ME-SFI [ME] control unit | 126A |

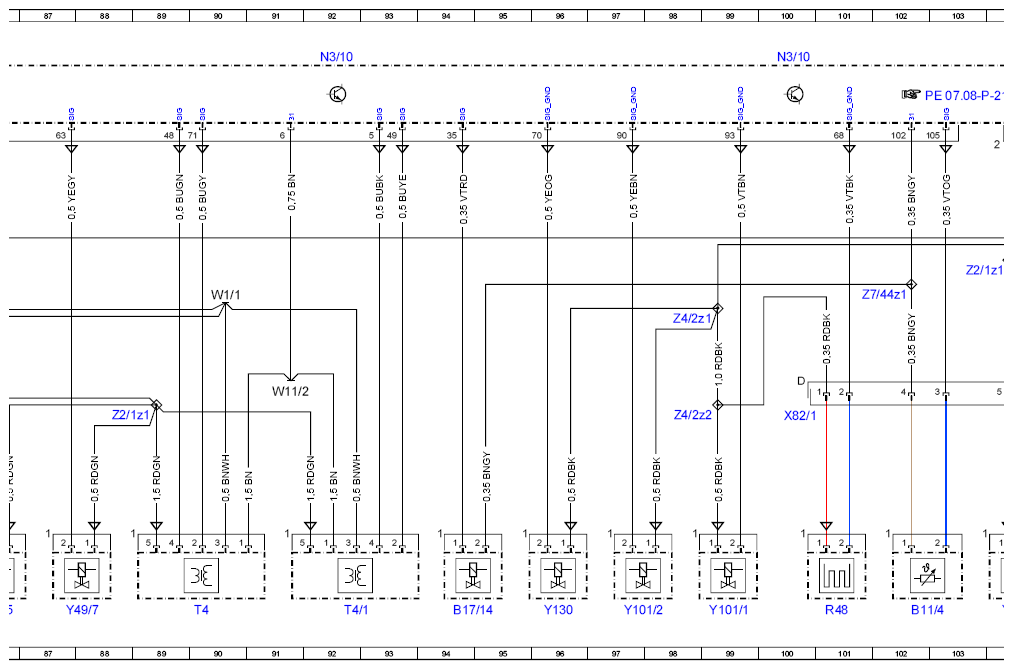

| R48 | Coolant thermostat heating element | 101L |
| T4 | Cylinder 1+2 ignition coil | 90L |
| T4/1 | Cylinder 3+4 ignition coil | 92L |
| T4/2 | Cylinders 5+6 ignition coil | 80L |
| T4/3 | Cylinders 7+8 ignition coil | 82L |
| W1/1 | Combustion engine ground point | 90E |
| W11/2 | Right combustion engine ground point | 91G |
| W11/3 | Left combustion engine ground point | 82H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 11 OH |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 112H |
| X26/10 | Vehicle interior/engine electrical connector | 106H |
| X82/1 | Engine wiring harness electrical intermediate connector | 100H |
| Y101/1 | Left bypass air switchover valve | 99L |
| Y101/2 | Right bypass air switchover valve | 97L |
| Y130 | Engine oil pump valve | 96L |
| Y16/2 | Heating system shutoff valve | 104L |

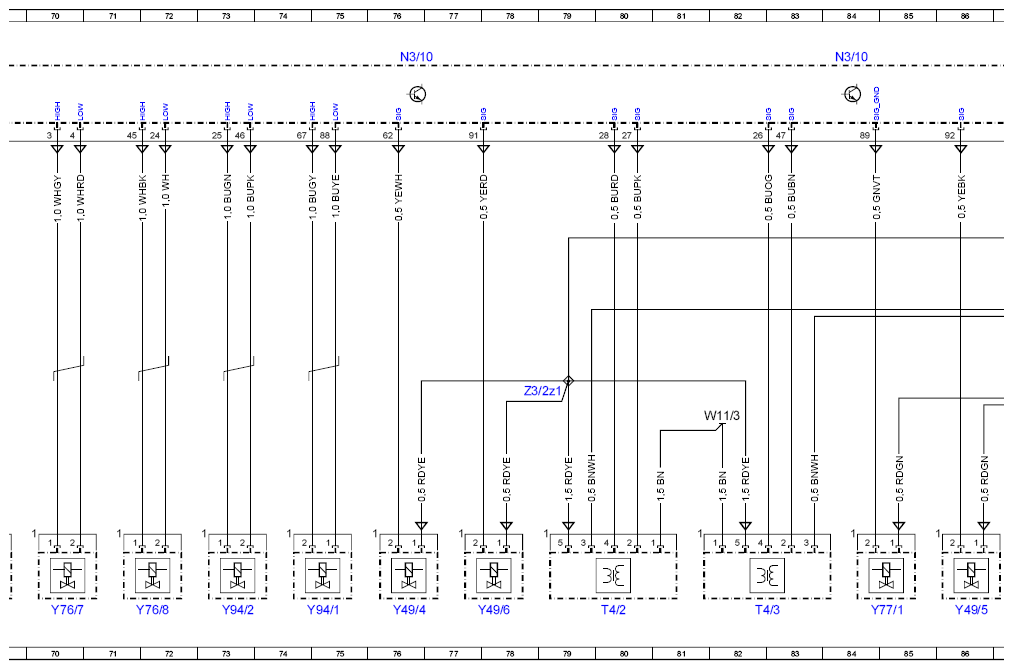

| Y49/4 | Left intake camshaft solenoid | 76L |
| Y49/5 | Right intake camshaft solenoid | 86L |
| Y49/6 | Left exhaust camshaft solenoid | 78L |
| Y49/7 | Right exhaust camshaft solenoid | 87L |
| Y76/1 | Cylinder 1 fuel injector | 61L |
| Y76/2 | Cylinder 2 fuel injector | 63L |
| Y76/3 | Cylinder 3 fuel injector | 64L |
| Y76/4 | Cylinder 4 fuel injector | 66L |
| Y76/5 | Cylinder 5 fuel injector | 67L |
| Y76/6 | Cylinder 6 fuel injector | 69L |
| Y76/7 | Cylinder 7 fuel injector | 70L |
| Y76/8 | Cylinder 8 fuel injector | 72L |
| Y77/1 | Boost pressure control pressure transducer | 84L |
| Y94/1 | Left quantity control valve | 75L |
| Y94/2 | Right quantity control valve | 73L |
| Z2/1z1 | Terminal 87/2 | 88G |
| Z2/1z1 | Terminal 87/2 | 103E |
| Z3/2z1 | Circuit 87/3 connector sleeve | 79G |
| Z4/2z1 | Terminal 87/4 | 98F |
| Z4/2z2 | Terminal 87/4 | 98G |
| Z7/41z1 | Sensor voltage connector sleeve | 41E |
| Z7/42z1 | Voltage supply connector sleeve | 20G |
| Z7/42z2 | Voltage supply connector sleeve | 30G |
| Z7/43z1 | Sensor ground connector sleeve | 38G |
| Z7/44z1 | Sensor ground connector sleeve | 102E |
| Z7/48z1 | Circuit 87/2 connector sleeve | 110E |
| Z7/72z1 | Sensor ground connector sleeve | 22G |
| Z7/72z2 | Sensor ground connector sleeve | 28E |
| Z7/73z1 | Circuit 87/4 connector sleeve | 111E |
