Remove/Install Left High-Pressure Fuel Line - AR07.03-P-1001MNG
Engine 177 in Model 253
MODIFICATION NOTES
| 13.11.2017 | Method completely revised. |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Risk of explosion caused by fuel igniting. Risk of injury to skin and eyes caused by fuel spraying out at high pressure | Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. |
AS07.16-Z-0001-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp Vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred Vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| General information on work on gasoline direct injection system | AH07.00-P-2000-01A | ||
| Remove/install | |||
| 1 | Remove fuel system high pressure pump | AR07.02-P-1023MNG | |

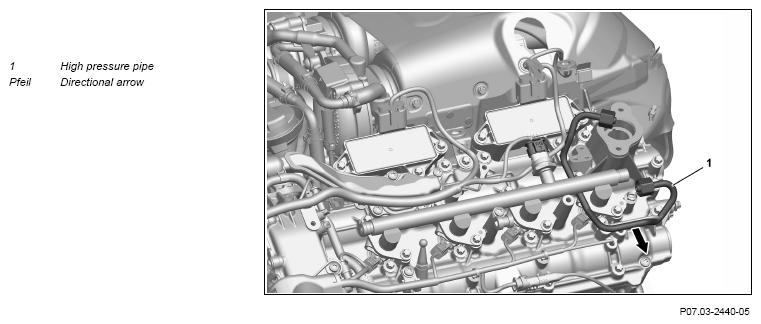

| 2 | Remove high-pressure line (1) in the direction of the arrow (arrow) and remove upward | ||
| 3 | Check high-pressure line (1) for damage | AR07.03-P-1010-03MNA | |
| Assembly cleaner | *BR00.45-Z-1028-04A | ||
| In case of a complaint ↓ Install new high-pressure line (1). |
|||
| 4 | Install in the reverse order |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | Adolf Wurth GmbH & Co. KG |
