Remove/Install Left Fuel Rail With Fuel Injectors - AR07.03-P-1050MNG

Engine 177 in Model 253

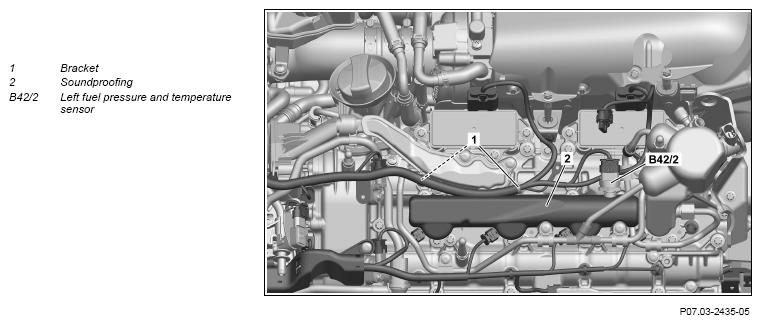

G12816752Courtesy of BMW OF NORTH AMERICA, INC.
Fig 1: Left Fuel Rail Components Location - Engine 177 In Model 253

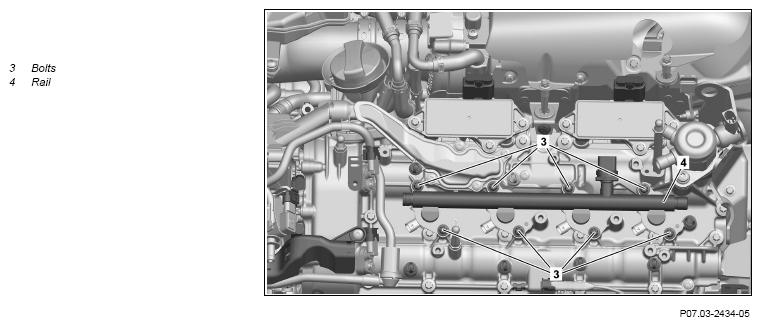

G12816753Courtesy of BMW OF NORTH AMERICA, INC.

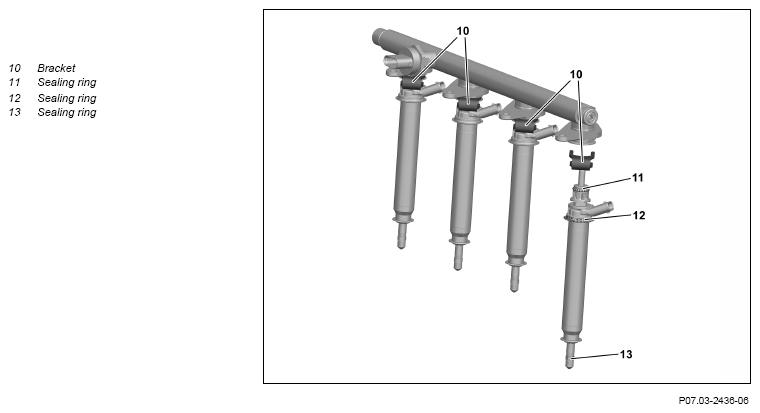

G12816754Courtesy of BMW OF NORTH AMERICA, INC.

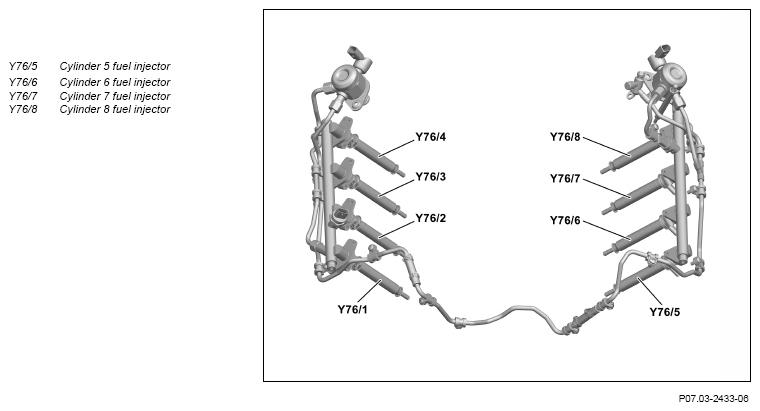

G12816755Courtesy of BMW OF NORTH AMERICA, INC.
WARNING Risk of accident  from Vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure Vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
  Risk of explosion  caused by fuel igniting. Risk of injury  to skin and eyes caused by fuel spraying out at high pressure Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. AS07.16-Z-0001-01A
  Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp Vehicle parts Always wear protective gloves when working on or near sharp and non-deburred Vehicle parts. Deburr repair panels. AS00.00-Z-0017-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  General information on work on gasoline direct injection system   AH07.00-P-2000-01A
REMOVING Remove
1 Remove high-pressure line on left   AR07.03-P-1001MNG
2 Release and disconnect electrical connector on left fuel pressure and temperature sensor (B42/2)
3 Remove the bracket (1) of the cylinder head cover, and remove the engine wiring harness with connected lines from the working area
4 Release and disconnect electrical connections of fuel injector cylinders 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8)
5 Remove the bracket (10) between rail (4) and fuel injector cylinder 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8)
6 Mark fuel injector cylinders 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8) for the cylinder in question When reusing fuel injector cylinders 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8).
7 Unscrew screws/bolts (3) on rail (4) NOTES Unscrew screws/bolts (3) alternately by half a revolution each. Start in center of rail (4), and work outwards.
Otherwise, damage to rail (4) occurs.

8 Remove rail (4) of fuel injector cylinders 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8) and seal openings with suitable stop plugs SPECIAL TOOL Record plug Figure
9 Remove fuel injectors of cylinders 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8) from the cylinder head and seal injector well bores with suitable stop plugs   AR07.03-P-0004-03MM
SPECIAL TOOL Puller Figure
SPECIAL TOOL Plug Fig 3
10 Check fuel injectors of cylinders 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8) for external damage and replace if necessary When reusing the fuel injectors of cylinders 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8).
INSTALLING Install
11 Clean fuel ports on the fuel injectors of cylinders 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8) NOTES For cleaning the fuel connections, hold downwards.
Otherwise, the fuel injectors of cylinders 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8) will fail.
NOTES If fuel injectors of cylinders 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8) are being replaced, they must be installed immediately after the transport protection caps have been removed.
Leaks can occur otherwise.
Assembly cleaner
*BR00.45-Z-1028-04A
12 Replace sealing packages for fuel injectors of cylinders 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8) on rail (4)   AR07.03-P-0004-02MM
Assembly cleaner *BR00.45-Z-1028-04A
SPECIAL TOOL Drift Figure
13 Replace the sealing rings (11, 12) on the fuel injectors of cylinders 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8)
14 Replace the sealing rings (13) on the fuel injectors of cylinders 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8)   AR07.03-P-0004-01MM
Assembly cleaner *BR00.45-Z-1028-04A
SPECIAL TOOL Assembly tool Figure
15 Install fuel injectors of cylinders 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8) into the rail (4) and secure them with new brackets (10) NOTES If reusing fuel injectors of cylinders 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8), these must be inserted into the cylinders in which they were installed in the past.
Engine damage will occur otherwise.

16 Read off and note injector injection quantity adjustment coding on the fuel injectors of cylinders 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8) When replacing the fuel injectors of cylinders 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8).
17 Insert rail (4) with the fuel injectors of cylinders 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8) into the left-hand cylinder head
18 Tighten screws/bolts (3) on rail (4) NOTES Screw in screws/bolts (3) alternately by half a revolution each. Start in center of rail (4), and work outwards.
Otherwise, damage to rail (4) occurs.
TORQUE SPECIFICATION Bolt, fuel distributor to cylinder head cover
*BA07.52-P-1001-01J
19 Install new left fuel pressure and temperature sensor (B42/2) on rail (4) On replacing rail (4). AR07.04-P-0201MNG
20 Connect electrical connections on the fuel injectors of cylinders 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8) until they lock
21 Attach the engine wiring harness with the brackets (1) on the left-hand cylinder head, and connect the electrical connections on the left-hand fuel pressure and temperature sensor (B42/2) until it locks
22 Install high-pressure line on left   AR07.03-P-1001MNG
23 Read out and erase fault memory using the diagnostic system REFER TO SELF-DIAGNOSTIC SYSTEMS AD00.00-P-2000-04B
24 Store injector injection quantity adjustment coding in engine management control unit When replacing the fuel injectors of cylinders 5 to 8 (Y76/5, Y76/6, Y76/7, Y76/8).
    REFER TO SELF-DIAGNOSTIC SYSTEMS AD00.00-P-2000-04B
25 Check fuel high-pressure circuit for leaktightness   AR07.03-P-1010-04MM
    REFER TO SELF-DIAGNOSTIC SYSTEMS AD00.00-P-2000-04B
WARNING Risk of accident  from Vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure Vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
26 Perform an engine test run and check engine for proper operation and leaktightness
FUEL DISTRIBUTOR

Number Designation Engine 177
BA07.52-P-1001-01J Bolt, fuel distributor to cylinder head cover Nm 9
Fig 2: Identifying Puller (278 589 00 33 00)
G11128361Courtesy of BMW OF NORTH AMERICA, INC.
Fig 3: Identifying Plug (270 589 03 91 00)
G11974108Courtesy of BMW OF NORTH AMERICA, INC.
Fig 4: Identifying Record Plug (129 589 00 91 00)
G12078802Courtesy of BMW OF NORTH AMERICA, INC.
Fig 5: Identifying Drift (278 589 01 15 00)
G10247786Courtesy of BMW OF NORTH AMERICA, INC.
Fig 6: Identifying Assembly Tool (272 589 00 43 00)
G10247776Courtesy of BMW OF NORTH AMERICA, INC.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner Adolf Wurth GmbH & Co. KG
