Tightening Procedure For Charge Air Distributor - AR09.41-P-8683-01MNG
Engine 177 in model 253
CHARGE AIR LINE/CHARGE AIR COOLING
| Number |
Designation |
Engine 177 |
| BA09.41-P-1004-01X |
Bolt, charge air distributor to cylinder head |
Nm |
13 |

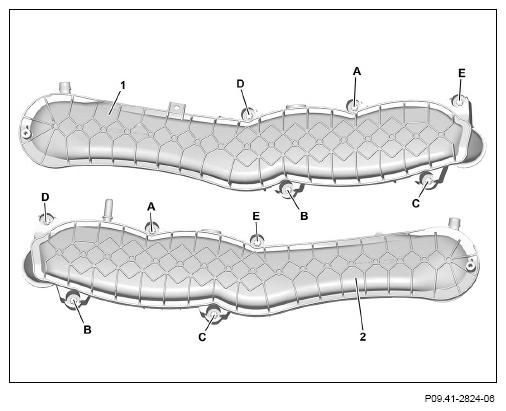

- Tighten screw/bolts (A to E) of the left and right charge air distributor (1 2) in the alphabetic sequence
.
