Remove/Install Right Charge Air Temperature Sensor Downstream Of Throttle Valve - AR09.41-P-0042MNG
Engine 177 in model 253
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove right engine air intake duct | AR09.10-P-1152MNG | |

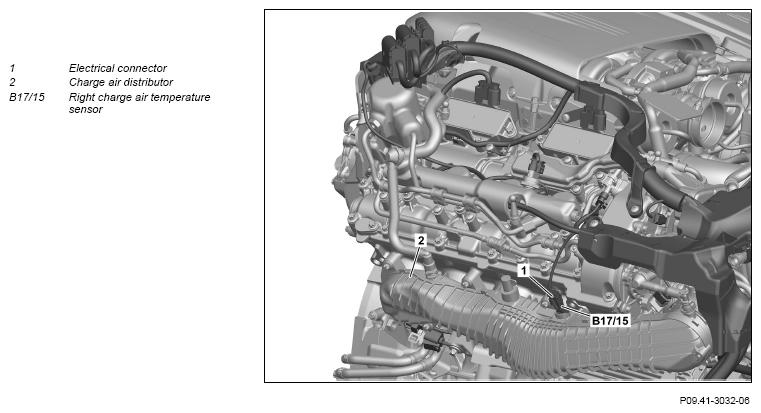

| 2 | Remove right charge air temperature sensor (B17/15) from charge-air distributor (2) | ||
| 3 | Release and disconnect electrical connector (1) and remove right charge air temperature sensor (B17/15) upwards | ||
| 4 | Seal opening at charge-air distributor (2) with a suitable stop plug | Fig 2 | |
| 5 | Check sealing ring of right charge air temperature sensor (B17/15) for damage | If damaged ↓ Replace right charge air temperature sensor (B17/15) |
|
| 6 | Install in the reverse order | ||
| 7 | Read out and erase fault memory | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run and check engine for proper function |
