Remove/Install Low Temperature Water Circuit Radiator - AR09.41-P-6935RF
Model 253 with engine 274, 276.8, 642, 651
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove/install | |||
| 1 | Remove radiator | AR20.20-P-3865RF | |
| 2 | Drain coolant from low-temperature circuit | AR09.41-P-6834LW | |

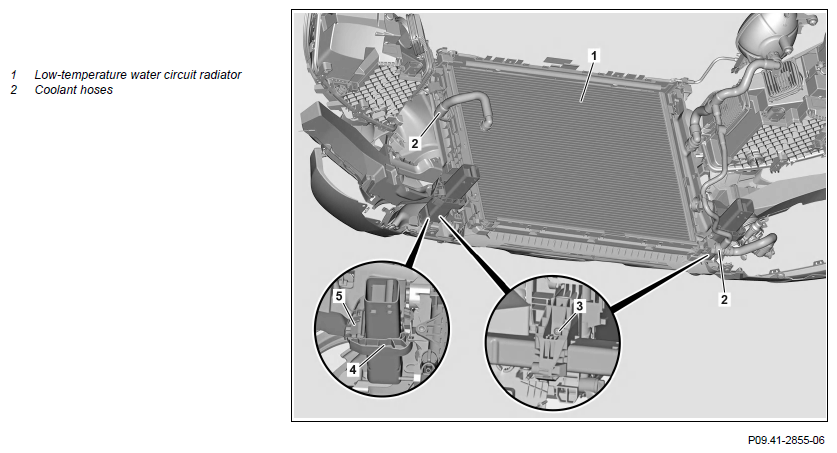

| 3 | Detach coolant hoses (2) on low-temperature circuit cooler (1) | AR20.20-P-7441-01RQ | |
| 4 | Remove low-temperature circuit cooler (1) to the rear and remove downwards | ||
| 5 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Carry out an engine test run and check the low-temperature circuit radiator (1) for leaktightness |
