Remove/Install Low Temperature Water Circuit Radiator - AR09.41-P-6935MNG
Engine 177 in model 253
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Remove radiator | AR20.20-P-3865MNG | |

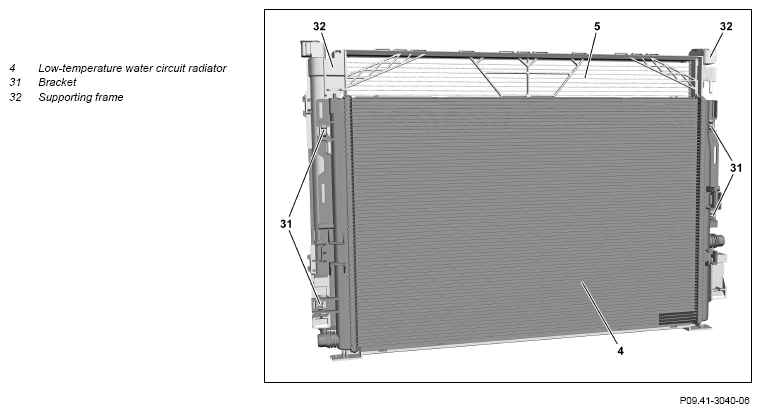

| 2 | Press brackets (31) together and remove low-temperature water circuit radiator (4) from supporting frame (32) | ||
| 3 | Check the low-temperature water circuit radiator (4) for damage | If damaged. ↓ Replace low-temperature water circuit radiator (4). |
|
| 4 | Install in the reverse order |
