Remove/Install Left Charge Air Temperature Sensor Downstream Of Throttle Valve - AR09.41-P-0041MNG
Engine 177 in model 253

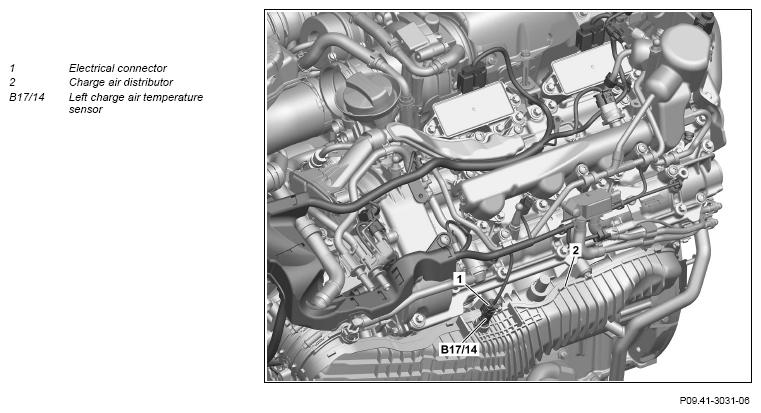

Fig 1: Left Air Charge Air Temperature Sensor (B17/14) Components Location - Engine 177 in Model 253
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove left charge air temperature sensor (B17/14) from charge-air distributor (2) | ||
| 2 | Release and disconnect electrical connector (1) and remove left charge air temperature sensor (B17/14) upward | ||
| 3 | Seal opening on charge-air distributor (2) with a suitable stop plug | Fig 2 | |
| 4 | Check the sealing ring of the charge-air temperature sensor on the left (B17/14) for damage | If damaged ↓ Replace the charge-air temperature sensor on the left (B17/14) |
|
| 5 | Install in the reverse order | ||
| 6 | Read out and erase fault memory | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform an engine test run and check engine for proper function |
