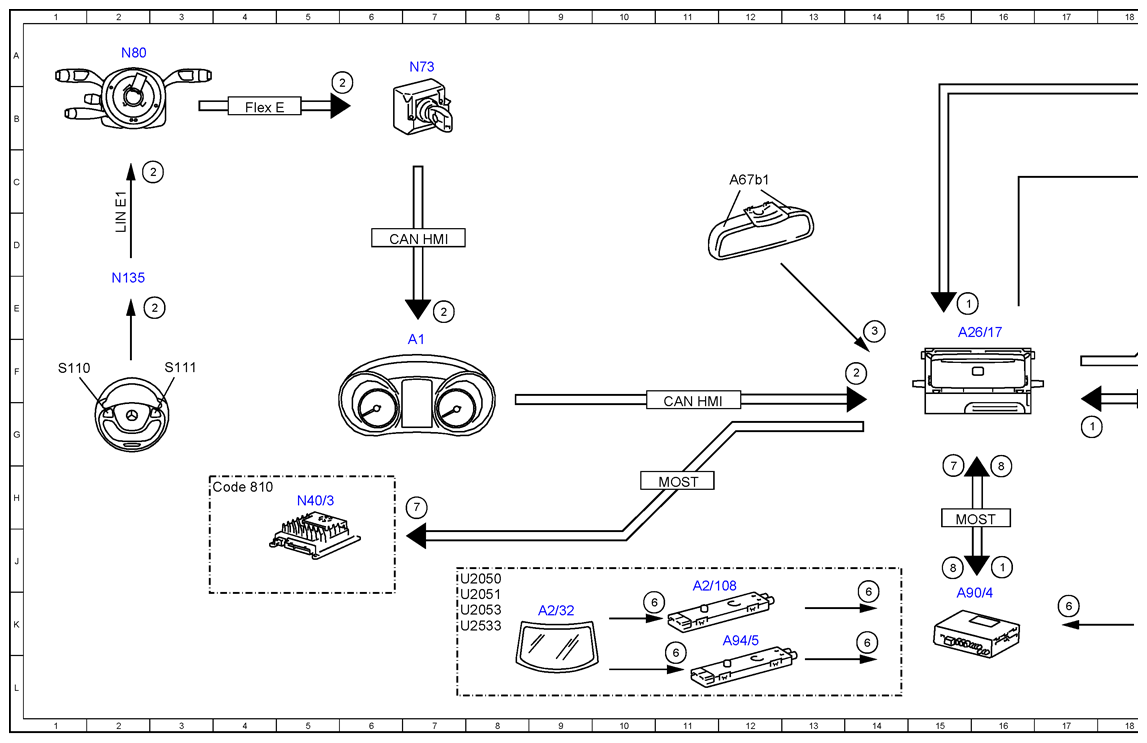

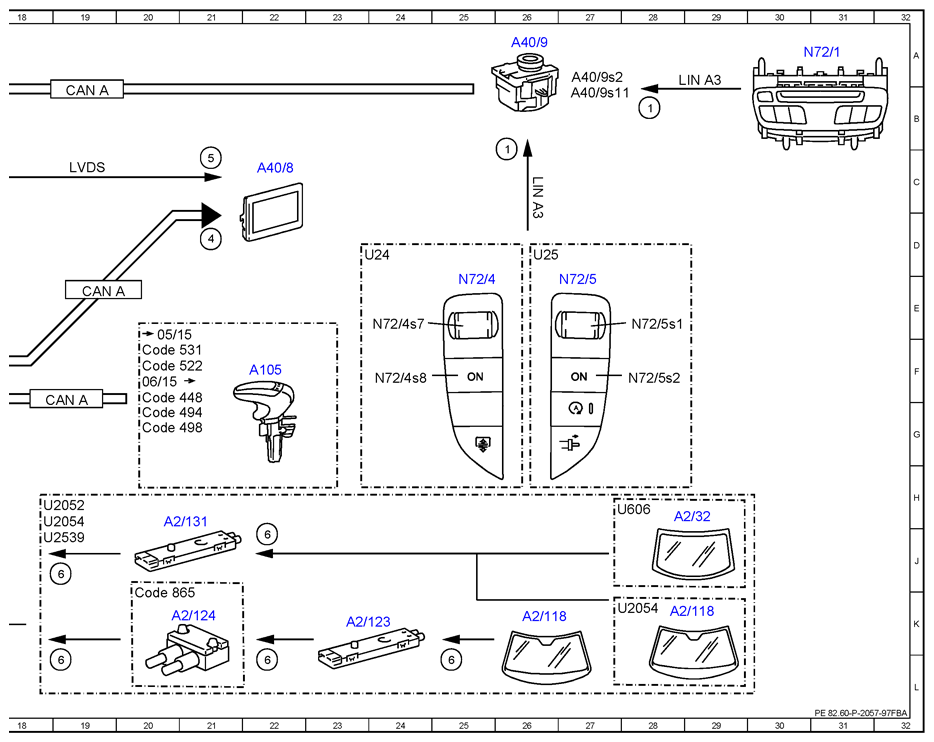

Electrical Function Diagram For Digital Audio Broadcasting, Function - PE82.60-P-2057-97FBA
Model 205 up to model year 2019 with code 537 (Digital radio (DAB)) Model 253 (except 253.99) up to model year 2020 with code 537 (Digital radio (DAB))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 16J |
| 1 | Operation, signal | 26C |
| 1 | Operation, signal | 15E |
| 1 | Operation, signal | 28B |
| 1 | Operation, signal | 17G |
| 2 | Multifunction steering wheel button group, signal | 6B |
| 2 | Multifunction steering wheel button group, signal | 7E |
| 2 | Multifunction steering wheel button group, signal | 14F |
| 2 | Multifunction steering wheel button group, signal | 3C |
| 2 | Multifunction steering wheel button group, signal | 3E |
| 3 | Voice input, signal | 14E |
| 4 | Switch-on request, signal | 21D |
| 5 | Audio/COMAND display, actuation | 21C |
| 6 | DAB band III, signal | 14K |
| 6 | DAB band III, signal | 14K |
| 6 | DAB band III, signal | 11L |
| 6 | DAB band III, signal | 10K |
| 6 | DAB band III, signal | 19L |
| 6 | DAB band III, signal | 19J |
| 6 | DAB band III, signal | 17K |
| 6 | DAB band III, signal | 22J |
| 6 | DAB band III, signal | 22L |
| 7 | Audio, signal | 15H |
| 7 | Audio, signal | 7H |
| 8 | DAB, communication | 15J |
| 8 | DAB, communication | 16H |
| A1 | Instrument cluster | 7F |
| A105 | Touchpad | 22F |
| A2/108 | FM 2 and DAB band III antenna amplifier | 11J |
| A2/118 | Windshield antenna | 26K |
| A2/118 | Windshield antenna | 28K |
| A2/123 | TV 2 and DAB band III antenna | 23K |
| A2/124 | TV and DAB antenna splitter | 21K |
| A2/131 | FM 2, DAB and TV 1 antenna amplifier | 20H |
| A2/32 | Rear window antenna | 28H |
| A2/32 | Rear window antenna | 9K |
| A26/17 | Head unit | 15E |
| A40/8 | Audio/COMAND display | 22C |
| A40/9 | Audio/COMAND control panel | 26A |
| A40/9s11 | Audio/COMAND controller | 27B |
| A40/9s2 | "Back" button | 27A |
| A67b1 | Hands-free system microphone | 12C |
| A90/4 | Tuner unit | 15K |
| A94/5 | TV 1 and DAB band III antenna | 12K |
| CAN A | Telematics CAN | 19B |
| CAN A | Telematics CAN | 19G |
| CAN A | Telematics CAN | 19E |
| CAN HMI | User interface CAN | 7D |
| CAN HMI | User interface CAN | 11G |
| Code 448 | Touchpad | 20F |
| Code 494 | USA version | 20G |
| Code 498 | Japan version | 20G |
| Code 522 | Audio 20 radio | 20F |
| Code 531 | COMAND APS | 20F |
| Code 810 | Sound system | 3H |
| Code 865 | TV tuner | 20K |
| Flex E | Chassis FlexRay | 4B |
| LIN A3 | LCP LIN | 26C |
| LIN A3 | LCP LIN | 29A |
| LIN E1 | Steering LIN | 2C |
| LVDS | Low voltage differential signal | 19C |
| MOST | Media Oriented System Transport | 15H |
| MOST | Media Oriented System Transport | 11H |
| N135 | Steering wheel electronics | 2E |
| N40/3 | Sound system amplifier control unit | 5H |
| N72/1 | Upper control panel control unit | 31A |
| N72/4 | Left lower control panel | 25E |
| N72/4s7 | Volume control button | 24E |
| N72/4s8 | "ON" button | 24F |
| N72/5 | Right lower control panel | 27E |
| N72/5s1 | Volume adjustment button | 28E |
| N72/5s2 | "ON" button | 28F |
| N73 | Electronic ignition switch control unit | 7A |
| N80 | Steering column module control unit | 2A |
| S110 | Left multifunction steering wheel button group | 1F |
| S111 | Right multifunction steering wheel button group | 3F |
| U2050 | Valid for model 205.0 | 7J |
| U2051 | Valid for model 205.1 | 7K |
| U2052 | Valid for model 205.2 | 18H |
| U2053 | Valid for model 205.3 | 7K |
| U2054 | Valid for model 205.4 | 18H |
| U2054 | Valid for model 205.4 | 27K |
| U24 | Valid for manual transmission | 23D |
| U25 | Valid for automatic transmission | 26D |
| U2533 | Valid for model 253.3 | 7K |
| U2539 | Valid for model 253.9 | 18J |
| U606 | Not valid for convertible | 27H |
