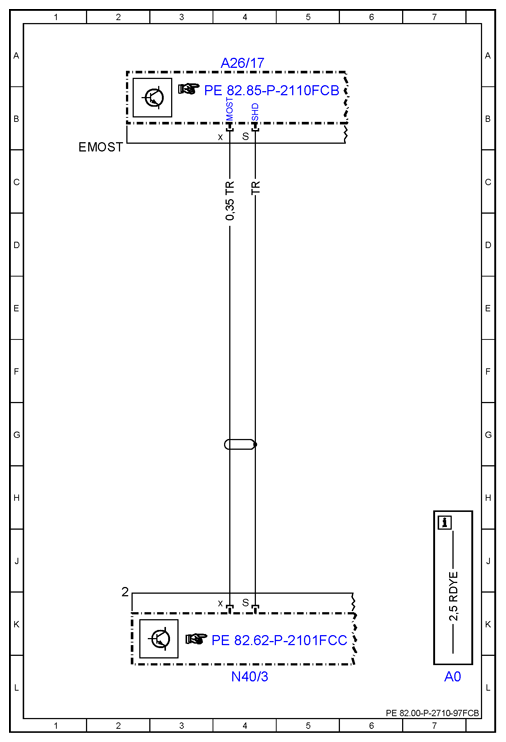

Wiring Diagram Of Most Bus - PE82.00-P-2710-97FCB
Model 253 (except 253.99) as of model year 2020
| Code: |
Designation: |
Position: |
| A0 |
Use of wiring diagrams |
7L |
| A26/17 |
Head unit |
4A |
| N40/3 |
Sound system amplifier control unit |
4L |
 Courtesy of MERCEDES-BENZ USA
|
