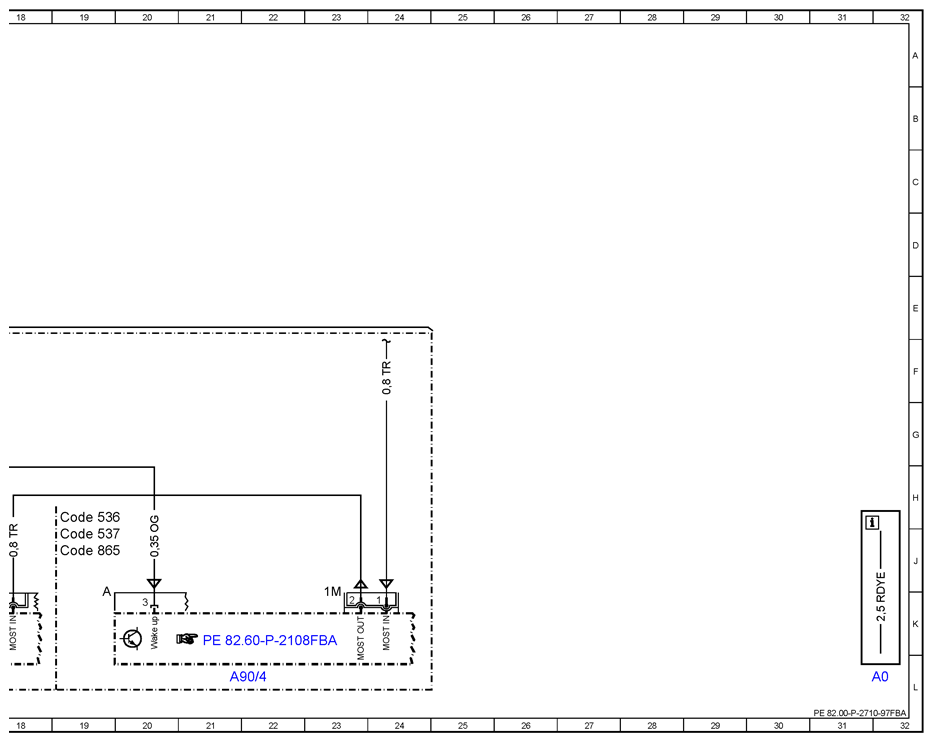

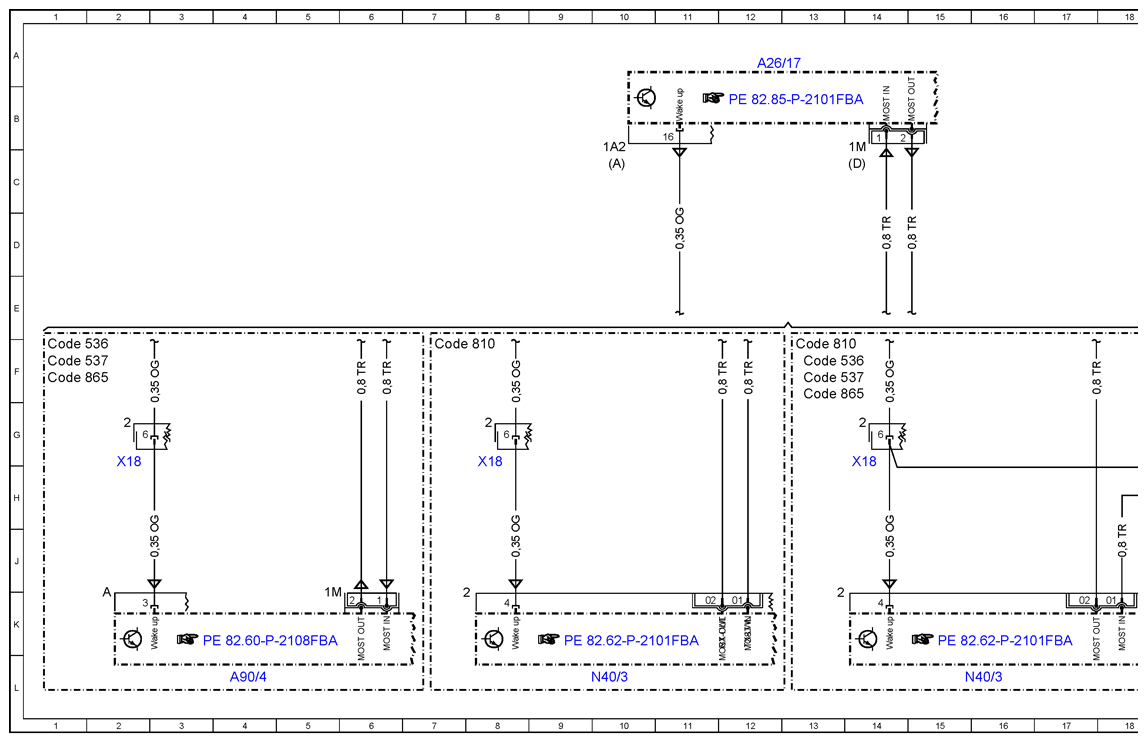

Wiring Diagram Of Most Bus - PE82.00-P-2710-97FBA
Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A26/17 | Head unit | 12A |
| A90/4 | Tuner unit | 4L |
| A90/4 | Tuner unit | 21L |
| Code 536 | SIRIUS satellite radio | 1F |
| Code 536 | SIRIUS satellite radio | 13F |
| Code 536 | SIRIUS satellite radio | 19H |
| Code 537 | Digital radio (DAB) | 13F |
| Code 537 | Digital radio (DAB) | 1F |
| Code 537 | Digital radio (DAB) | 19J |
| Code 810 | Sound system | 7F |
| Code 810 | Sound system | 13F |
| Code 865 | TV tuner | 1F |
| Code 865 | TV tuner | 13F |
| Code 865 | TV tuner | 19J |
| N40/3 | Sound system amplifier control unit | 10L |
| N40/3 | Sound system amplifier control unit | 16L |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 2H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 8H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 14H |
