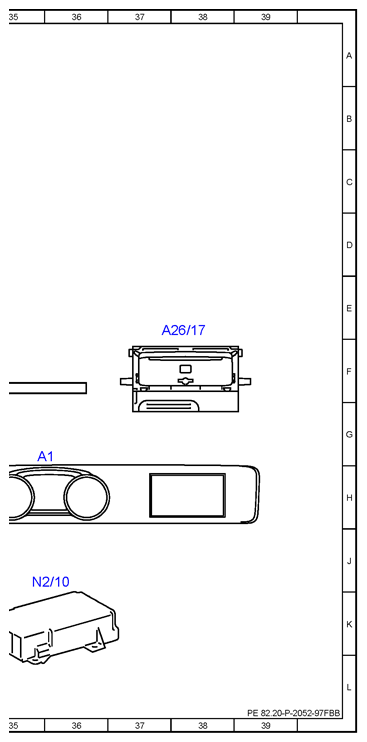

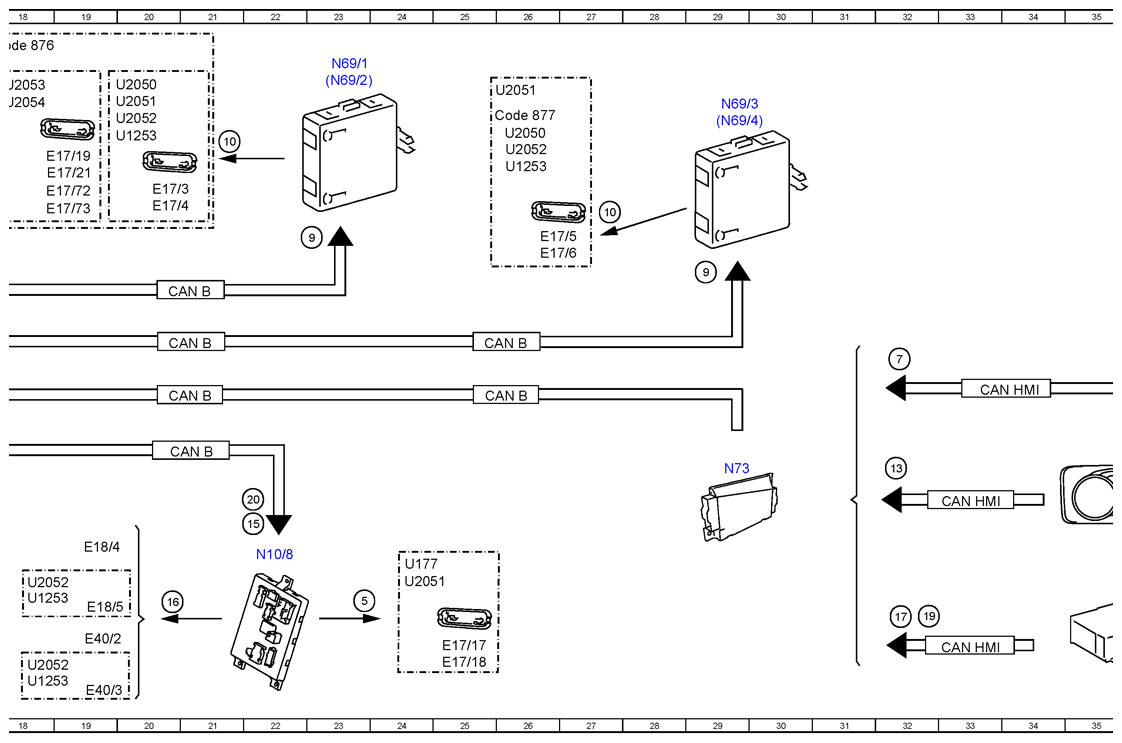

Automatic Interior Lights Control Electrical Function Schematic - PE82.20-P-2052-97FBB
Model 205 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Automatic function switch, status | 9F |
| 1 | Automatic function switch, status | 6C |
| 10 | Exit and warning lamp, actuation | 21B |
| 10 | Exit and warning lamp, actuation | 27D |
| 11 | Dusk setting, signal | 10G |
| 12 | Illuminated door sill molding actuation | 10J |
| 12 | Illuminated door sill molding actuation | 11J |
| 13 | Vehicle speed, signal | 14F |
| 13 | Vehicle speed, signal | 32H |
| 14 | Trunk lid/liftgate lock main catch switch, status | 13G |
| 15 | Ambient lamp, request | 22H |
| 16 | Ambient lamp, actuation | 20K |
| 17 | Crash, signal | 14F |
| 17 | Crash, signal | 32J |
| 18 | Ambience illumination, request | 11D |
| 18 | Ambience illumination, request | 14B |
| 18 | Ambience illumination, request | 14C |
| 19 | Seat belt buckle switch, status | 15F |
| 19 | Seat belt buckle switch, status | 32K |
| 2 | Central locking, status | 13F |
| 20 | Footwell lamp request | 22H |
| 3 | Interior lamp, request | 6E |
| 3 | Interior lamp, request | 3D |
| 4 | Interior lamp, actuation | 5J |
| 4 | Interior lamp, actuation | 4C |
| 4 | Interior lamp, actuation | 5C |
| 4 | Interior lamp, actuation | 7C |
| 5 | Footwell lamp, actuation | 13J |
| 5 | Footwell lamp, actuation | 23K |
| 6 | Circuit 15, status | 13F |
| 7 | OFF delay time, status | 14F |
| 7 | OFF delay time, status | 32F |
| 8 | Door rotary tumbler switch, status | 13D |
| 8 | Door rotary tumbler switch, status | 13E |
| 9 | Exit and warning lamp, request | 23D |
| 9 | Exit and warning lamp, request | 29E |
| A1 | Instrument cluster | 35G |
| A26/17 | Head unit | 38E |
| A67 | Inside rearview mirror | 1D |
| A67e1 | Left reading lamp | 1F |
| A67e2 | Right reading lamp | 2F |
| B38/2 | Rain/light sensor with additional functions | 7H |
| B38/2b2 | Light sensor | 7H |
| CAN B | Interior CAN | 21F |
| CAN B | Interior CAN | 26F |
| CAN B | Interior CAN | 15F |
| CAN B | Interior CAN | 21E |
| CAN B | Interior CAN | 15F |
| CAN B | Interior CAN | 26F |
| CAN B | Interior CAN | 21F |
| CAN B | Interior CAN | 21G |
| CAN B | Interior CAN | 7F |
| CAN B | Interior CAN | 11E |
| CAN B | Interior CAN | 15E |
| CAN B | Interior CAN | 15G |
| CAN HMI | User interface CAN | 33H |
| CAN HMI | User interface CAN | 33K |
| CAN HMI | User interface CAN | 33F |
| Code 876 | Interior lights package | 3K |
| Code 876 | Interior lights package | 1F |
| Code 876 | Interior lights package | 18A |
| Code 876 | Interior lights package | 4A |
| Code 876 | Interior lights package | 13K |
| Code 877 | Ambiance illumination | 9K |
| Code 877 | Ambiance illumination | 25B |
| Code 877 | Ambiance illumination | 9B |
| Code U05 | Make-up mirror in rear passenger compartment | 5K |
| E11/1 | Left rear dome lamp | 2L |
| E11/1e2 | Left rear interior lamp | 2L |
| E11/2 | Right rear dome lamp | 4L |
| E11/2e2 | Right rear interior lamp | 4L |
| E15/10 | Left rear vanity mirror unit | 6K |
| E15/10e2 | Left rear vanity mirror dome lamp | 6L |
| E15/11 | Right rear vanity mirror unit | 6L |
| E15/11e2 | Right rear vanity mirror dome lamp | 6L |
| E15/3 | Rear dome lamp | 7B |
| E15/3e3 | Rear interior lamp | 8C |
| E17/15 | Right front footwell lamp | 13L |
| E17/16 | Left front footwell lamp | 13L |
| E17/17 | Left rear footwell lamp | 25K |
| E17/18 | Right rear footwell lamp | 25L |
| E17/19 | Left front door warning lamp | 19C |
| E17/21 | Right front door warning lamp | 19C |
| E17/3 | Left front door exit and warning lamp | 20C |
| E17/4 | Right front door exit and warning lamp | 20C |
| E17/47 | Left front illuminated door sill molding | 10L |
| E17/48 | Right front illuminated door sill molding | 10L |
| E17/5 | Left rear door exit and warning lamp | 26D |
| E17/51 | Left rear illuminated door sill molding | 12L |
| E17/52 | Right rear illuminated door sill molding | 12L |
| E17/6 | Right rear door exit and warning lamp | 26D |
| E17/72 | Left front door exit lamp | 19C |
| E17/73 | Right front door exit lamp | 19D |
| E18/4 | Right luggage compartment lamp | 19J |
| E18/5 | Left luggage compartment lamp | 19K |
| E40/2 | Left trunk lid/liftgate ambient lamp and warning lamp | 19K |
| E40/3 | Right trunk lid/liftgate ambient lamp and warning lamp | 19L |
| E43/34 | Left rear footwell illumination ambiance illumination (LED) | 15C |
| E43/35 | Right rear footwell illumination ambiance illumination (LED) | 15C |
| E43/81 | Left front footwell ambiance illumination | 15C |
| E43/82 | Right front footwell ambiance illumination | 15D |
| LIN B13 | Roof LIN | 4D |
| LIN B16 | Rain and light sensor LIN | 9H |
| LIN B34 | Cockpit ambiance illumination LIN | 13B |
| LIN B36 | Roof ambiance illumination LIN | 13C |
| N10/6 | Front SAM control unit | 11F |
| N10/8 | Rear SAM control unit | 22J |
| N162 | Ambiance illumination control unit | 11B |
| N2/10 | Supplemental restraint system control unit | 35J |
| N69/1 | Left front door control unit | 23A |
| N69/2 | Right front door control unit | 23A |
| N69/3 | Left rear door control unit | 29B |
| N69/4 | Right rear door control unit | 29B |
| N70 | Overhead control panel control unit | 5C |
| N70e1 | Front dome lamp | 4B |
| N70e4 | Left interior/reading lamp | 5B |
| N70e5 | Right interior/reading lamp | 5B |
| N70s3 | Interior lamp automatic function button | 6A |
| N73 | Electronic ignition switch control unit | 29H |
| U1253 | Valid for model 253 | 3B |
| U1253 | Valid for model 253 | 3K |
| U1253 | Valid for model 253 | 1K |
| U1253 | Valid for model 253 | 1H |
| U1253 | Valid for model 253 | 19B |
| U1253 | Valid for model 253 | 9L |
| U1253 | Valid for model 253 | 18L |
| U1253 | Valid for model 253 | 18K |
| U1253 | Valid for model 253 | 26C |
| U177 | Not valid for ambiance illumination | 13K |
| U177 | Not valid for ambiance illumination | 24J |
| U2050 | Valid for model 205.0 | 3A |
| U2050 | Valid for model 205.0 | 3K |
| U2050 | Valid for model 205.0 | 1K |
| U2050 | Valid for model 205.0 | 1F |
| U2050 | Valid for model 205.0 | 19B |
| U2050 | Valid for model 205.0 | 9K |
| U2050 | Valid for model 205.0 | 26B |
| U2051 | Valid for model 205.1 | 5K |
| U2051 | Valid for model 205.1 | 11K |
| U2051 | Valid for model 205.1 | 3A |
| U2051 | Valid for model 205.1 | 3L |
| U2051 | Valid for model 205.1 | 1K |
| U2051 | Valid for model 205.1 | 1G |
| U2051 | Valid for model 205.1 | 19B |
| U2051 | Valid for model 205.1 | 8K |
| U2051 | Valid for model 205.1 | 25B |
| U2051 | Valid for model 205.1 | 24J |
| U2052 | Valid for model 205.2 | 18L |
| U2052 | Valid for model 205.2 | 18J |
| U2052 | Valid for model 205.2 | 3B |
| U2052 | Valid for model 205.2 | 3L |
| U2052 | Valid for model 205.2 | 1K |
| U2052 | Valid for model 205.2 | 1G |
| U2052 | Valid for model 205.2 | 19B |
| U2052 | Valid for model 205.2 | 9L |
| U2052 | Valid for model 205.2 | 26C |
| U2053 | Valid for model 205.3 | 3B |
| U2053 | Valid for model 205.3 | 7B |
| U2053 | Valid for model 205.3 | 1G |
| U2053 | Valid for model 205.3 | 18B |
| U2053 | Valid for model 205.3 | 9L |
| U2054 | Valid for model 205.4 | 4A |
| U2054 | Valid for model 205.4 | 18B |
| U2054 | Valid for model 205.4 | 9L |
