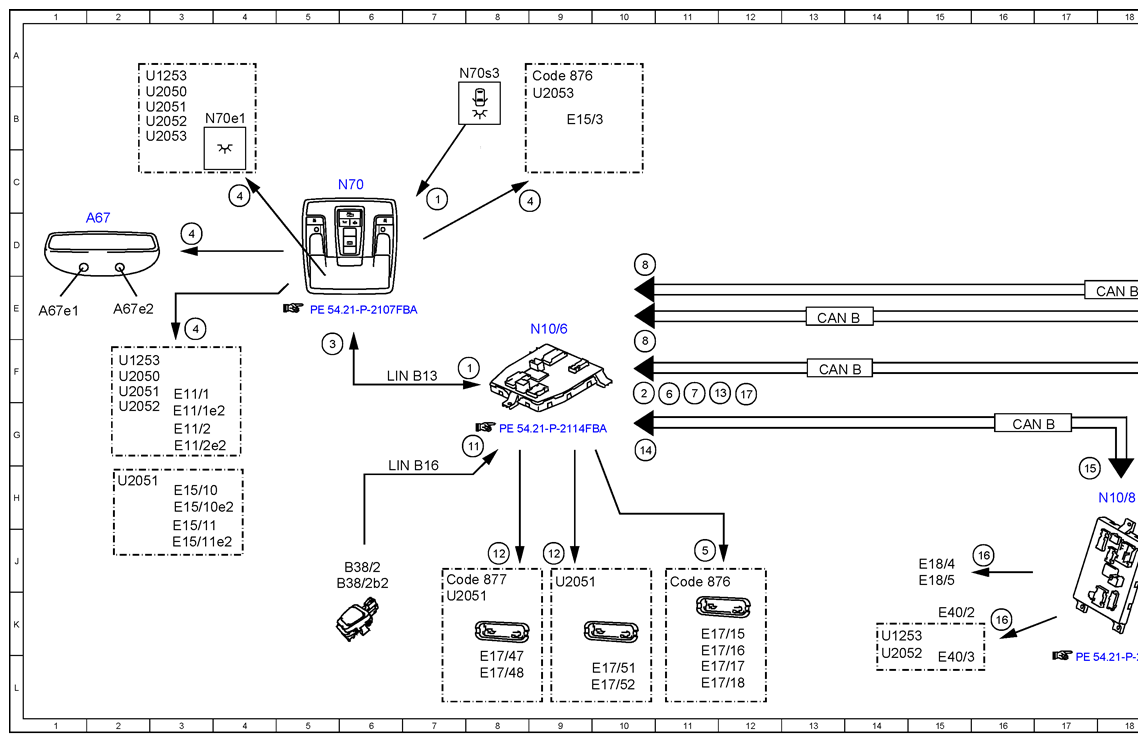

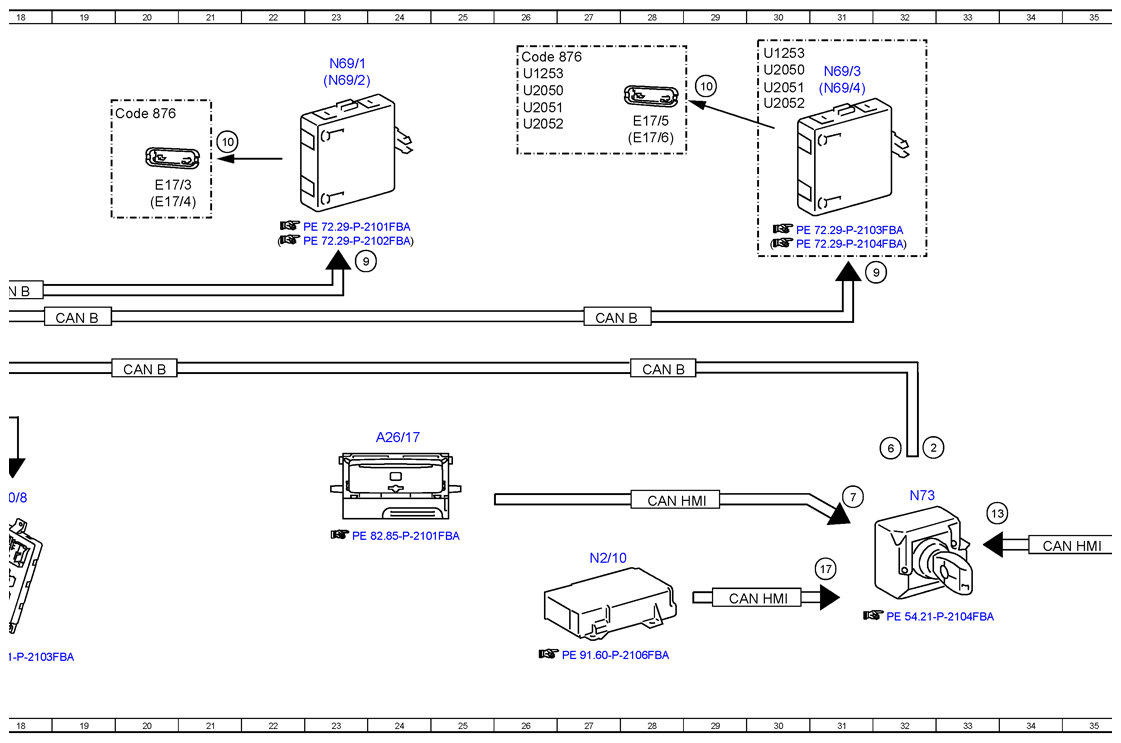

Automatic Interior Lights Control Electrical Function Schematic - PE82.20-P-2052-97FBA
Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Automatic function switch, status | 8F |
| 1 | Automatic function switch, status | 7C |
| 10 | Exit and warning lamp, actuation | 21B |
| 10 | Exit and warning lamp, actuation | 29B |
| 11 | Dusk setting, signal | 8G |
| 12 | Illuminated door sill molding actuation | 8J |
| 12 | Illuminated door sill molding actuation | 9J |
| 13 | Vehicle speed, signal | 11F |
| 13 | Vehicle speed, signal | 33H |
| 14 | Trunk lid/liftgate lock main catch switch, status | 11G |
| 15 | Ambient lamp, request | 17H |
| 16 | Ambient lamp, actuation | 16J |
| 16 | Ambient lamp, actuation | 16K |
| 17 | Crash, signal | 12F |
| 17 | Crash, signal | 31J |
| 2 | Central locking, status | 10F |
| 2 | Central locking, status | 32G |
| 3 | Interior lamp, request | 5F |
| 4 | Interior lamp, actuation | 3E |
| 4 | Interior lamp, actuation | 3D |
| 4 | Interior lamp, actuation | 4C |
| 4 | Interior lamp, actuation | 8C |
| 5 | Footwell lamp, actuation | 11J |
| 6 | Circuit 15, status | 11F |
| 6 | Circuit 15, status | 32G |
| 7 | OFF delay time, status | 11F |
| 7 | OFF delay time, status | 31H |
| 8 | Door rotary tumbler switch, status | 10D |
| 8 | Door rotary tumbler switch, status | 10F |
| 9 | Exit and warning lamp, request | 23D |
| 9 | Exit and warning lamp, request | 32E |
| A1 | Instrument cluster | 37H |
| A26/17 | Head unit | 24G |
| A67 | Inside rearview mirror | 1D |
| A67e1 | Left reading lamp | 1E |
| A67e2 | Right reading lamp | 2E |
| B38/2 | Rain/light sensor with additional functions | 6J |
| B38/2b2 | Light sensor | 6J |
| CAN B | Interior CAN | 20F |
| CAN B | Interior CAN | 28F |
| CAN B | Interior CAN | 13F |
| CAN B | Interior CAN | 18E |
| CAN B | Interior CAN | 13E |
| CAN B | Interior CAN | 27E |
| CAN B | Interior CAN | 19E |
| CAN B | Interior CAN | 16G |
| CAN HMI | User interface CAN | 34J |
| CAN HMI | User interface CAN | 29K |
| CAN HMI | User interface CAN | 28H |
| Code 876 | Interior lights package | 26A |
| Code 876 | Interior lights package | 11J |
| Code 876 | Interior lights package | 20B |
| Code 876 | Interior lights package | 9A |
| Code 877 | Ambiance illumination | 7J |
| E11/1 | Left rear dome lamp | 3F |
| E11/1e2 | Left rear interior lamp | 3G |
| E11/2 | Right rear dome lamp | 3G |
| E11/2e2 | Right rear interior lamp | 3G |
| E15/10 | Left rear vanity mirror unit | 3H |
| E15/10e2 | Left rear vanity mirror dome lamp | 3H |
| E15/11 | Right rear vanity mirror unit | 3J |
| E15/11e2 | Right rear vanity mirror dome lamp | 3J |
| E15/3 | Rear dome lamp | 9B |
| E17/15 | Right front footwell lamp | 11K |
| E17/16 | Left front footwell lamp | 11K |
| E17/17 | Left rear footwell lamp | 11L |
| E17/18 | Right rear footwell lamp | 11L |
| E17/3 | Left front door exit and warning lamp | 20C |
| E17/4 | Right front door exit and warning lamp | 20C |
| E17/47 | Left front illuminated door sill molding | 8L |
| E17/48 | Right front illuminated door sill molding | 8L |
| E17/5 | Left rear door exit and warning lamp | 28B |
| E17/51 | Left rear illuminated door sill molding | 10L |
| E17/52 | Right rear illuminated door sill molding | 10L |
| E17/6 | Right rear door exit and warning lamp | 28B |
| E18/4 | Right luggage compartment lamp | 15J |
| E18/5 | Left luggage compartment lamp | 15J |
| E40/2 | Left trunk lid/liftgate ambient lamp and warning lamp | 15K |
| E40/3 | Right trunk lid/liftgate ambient lamp and warning lamp | 15L |
| LIN B13 | Roof LIN | 6F |
| LIN B16 | Rain and light sensor LIN | 6H |
| N10/6 | Front SAM control unit | 9E |
| N10/8 | Rear SAM control unit | 18H |
| N2/10 | Supplemental restraint system control unit | 27J |
| N69/1 | Left front door control unit | 23A |
| N69/2 | Right front door control unit | 23A |
| N69/3 | Left rear door control unit | 31A |
| N69/4 | Right rear door control unit | 31B |
| N70 | Overhead control panel control unit | 5C |
| N70e1 | Front dome lamp | 4B |
| N70e4 | Left interior/reading lamp | - |
| N70e5 | Right interior/reading lamp | - |
| N70s3 | Interior lamp automatic function button | 8A |
| N73 | Electronic ignition switch control unit | 32H |
| U1253 | Valid for model 253 | 2F |
| U1253 | Valid for model 253 | 26A |
| U1253 | Valid for model 253 | 30A |
| U1253 | Valid for model 253 | 2A |
| U1253 | Valid for model 253 | 14K |
| U2050 | Valid for model 205.0 | 26B |
| U2050 | Valid for model 205.0 | 30A |
| U2050 | Valid for model 205.0 | 2F |
| U2050 | Valid for model 205.0 | 2B |
| U2051 | Valid for model 205.1 | 2H |
| U2051 | Valid for model 205.1 | 7K |
| U2051 | Valid for model 205.1 | 9J |
| U2051 | Valid for model 205.1 | 26B |
| U2051 | Valid for model 205.1 | 30B |
| U2051 | Valid for model 205.1 | 2F |
| U2051 | Valid for model 205.1 | 2B |
| U2052 | Valid for model 205.2 | 2G |
| U2052 | Valid for model 205.2 | 14L |
| U2052 | Valid for model 205.2 | 26B |
| U2052 | Valid for model 205.2 | 30B |
| U2052 | Valid for model 205.2 | 2B |
| U2053 | Valid for model 205.3 | 9B |
| U2053 | Valid for model 205.3 | 2B |
| U2054 | Valid for model 205.4 | - |
