Retrofit Illuminated Door Sill Molding With Mercedes-Benz Lettering - AZ82.20-P-0005LWG

Model 253.3/9

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Detach driver-side fuse and relay module (K40/6)
2	Detach door seals from entrance area at left and right
3	Use suitable means to remove front right door sills and remove adhesive residue Notes on removing adhesive residues and foils on paint and metal surfaces with surface conditioning disks	Commercially available devices/tools  Battery-operated drill Left and right door sill moldings are no longer required. Use commercially available surface conditioning disk with dia.100 mm.	AH00.00-P-0013-01AK
		Long wedge	Fig 1
4	Remove front floor covering on driver side
			AR68.20-P-2050LW
5	Remove front floor covering on front passenger side
			AR68.20-P-2070LW
6	Remove front footrest on passenger side
	Install
7	Fit electrical wiring harness of illuminated door sill molding with Mercedes-Benz lettering to the front		AZ82.20-P-0005-01LWG
	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
		Right front footwell ground point (CAN)	*BA00.19-P-1019-01E
8	Install control unit for illuminated door sill moldings with Mercedes-Benz lettering		AZ82.20-P-0005-05LWG
		Self-adhesive felt strip 40x2 mm	*BR00.45-Z-1074-01A
		Binder Duotec® Pilz in Pilz Klett - with adhesive 32	*BR00.45-Z-1084-02A

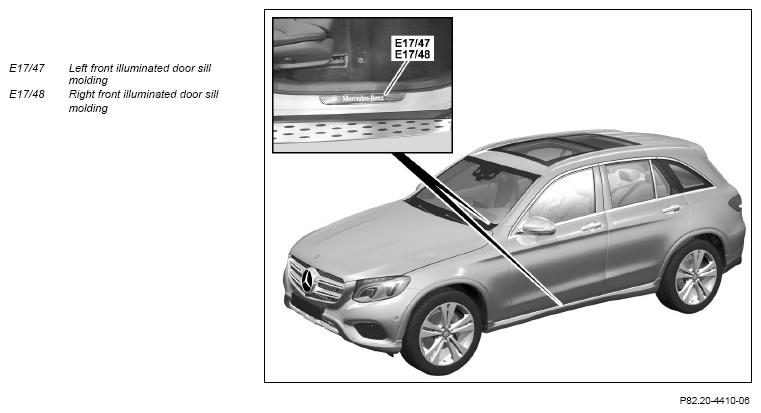

9	Install front left illuminated door sill molding (E17/47) and front right illuminated door sill molding (E17/48)		AZ82.20-P-0005-10LWG
		Cleaner	*BR00.45-Z-1025-04A
	Check
10	Carry out function check	Front left illuminated door sill molding (E17/47) or front right illuminated door sill molding (E17/48) is switched on by opening corresponding front door. Automatic shutoff takes place after approx. 5 min.
	Install
11	Install remaining parts
	Update Vehicle Documentation (VeDoc)
12	Attach "Illuminated door sill molding retrofitted as per AZ82.20-P-0005LWG note" under field organization texts on design group 68 and KG82

GROUND POINTS

Number	Designation			Model 253 (except 253.99)	Model 253.99
BA00.19-P-1019-01E	Right front footwell ground point (CAN)	W15/8	Nm	10	10

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
BR00.45-Z-1074-01A	Self-adhesive felt strip 40x2 mm	A 001 983 23 10
BR00.45-Z-1084-02A	Binder Duotec® Pilz in Pilz Klett - with adhesive 32	Klettband Technik Schultz UG

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG98	Parts kit for illuminated door sill moldings with Mercedes-Benz lettering.	1
