Remove/Install Rear Taillamp Unit - AR82.10-P-4731LWX
Model 253.3
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | Model 253.3 with code 871 (HANDS-FREE ACCESS) with code 889 (KEYLESS-GO) | AH80.61-P-0001-01A | |
| Remove/install | |||

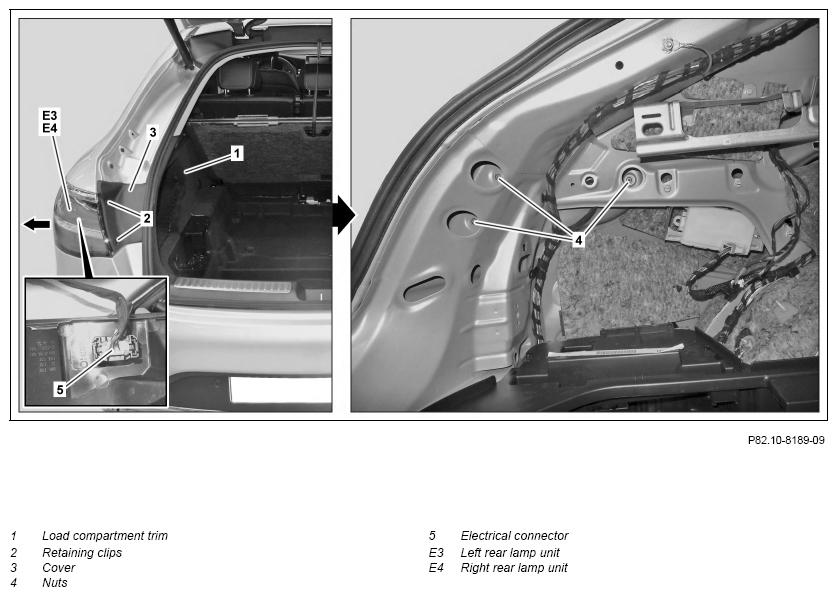

| 1 | Remove side load compartment trim (1) at left or right | AR68.30-P-1180LWG | |
| 2 | Remove retaining clips (2) and remove cover (3) | ||
| 3 | Unscrew nuts (4) | ||
| 4 | Slide left rear lamp unit (E3) or right rear lamp unit (E4) outwards in direction of arrow and detach far enough from body until the electrical connector (5) is accessible | ||
| 5 | Disconnect electrical connection (5) | ||
| 6 | Remove left rear lamp unit (E3) and right rear lamp unit (E4) | ||
| 7 | Install in the reverse order |
