Remove/Install License Plate Lamps - AR82.10-P-5161LWX

Model 253.3

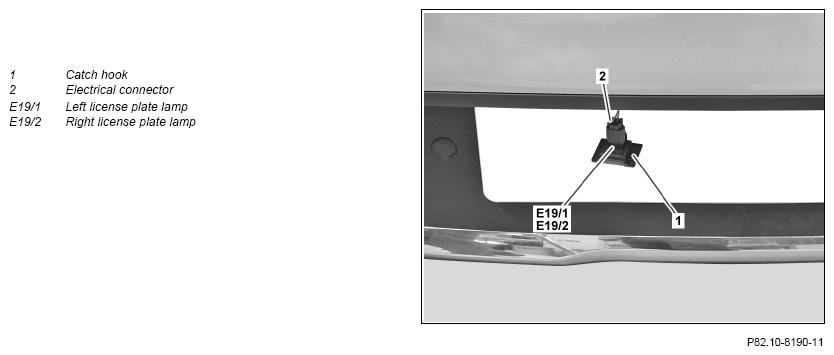

Fig 1: License Plate Lamps Components Location - Model 253.3

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on sensor system for trunk lid opening/closing	Model 253.3 with code 871 (HANDS-FREE ACCESS) with code 889 (KEYLESS-GO)	AH80.61-P-0001-01A
	Remove/install
1	Unclip left license plate lamp (E19/1) or right license plate lamp (E19/2) from the rear bumper with a suitable tool	Carefully unclip left license plate lamp (E19/1) or right license plate lamp (E19/2). Otherwise the catch hook (1) on the left license plate lamp (E19/1) or right license plate lamp (E19/2) may be damaged.
2	Disconnect electrical connector (2) and remove left license plate lamp (E19/1) or right license plate lamp (E19/2)
3	Install in the reverse order
