Remove/Install Emergency Call System Antenna - AR82.95-P-0017LWX
Model 253.3
with code 360 (HERMES UMTS)
Model 253.3
with code 362 (HERMES communications module LTE)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove center liftgate paneling | AR72.20-P-6618LWS | |

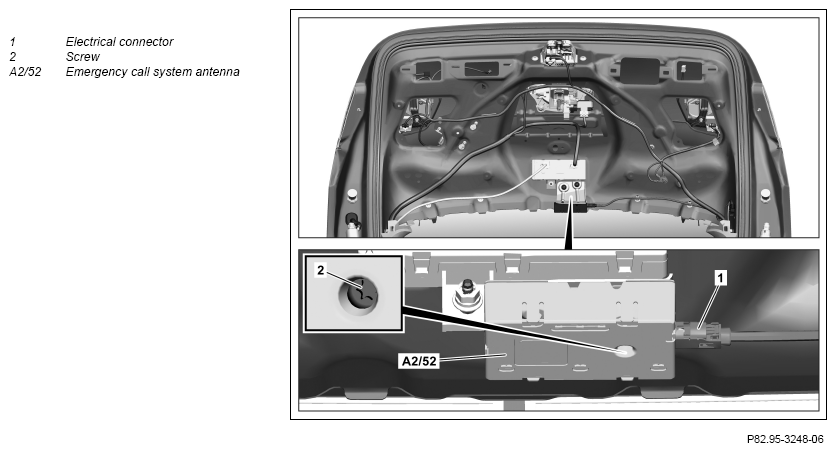

| 2 | Disconnect electrical connection (1) | ||
| 3 | Loosen screw/bolt (2) | ||
| 4 | Remove emergency call system antenna (A2/52) | ||
| 5 | Install in the reverse order |
