Remove/Install Antenna Splitter - AR82.70-P-8953LWG

Model 253

with code 348 (Emergency call/assistant system)

Model 253

with code 386 (Comfort telephony)

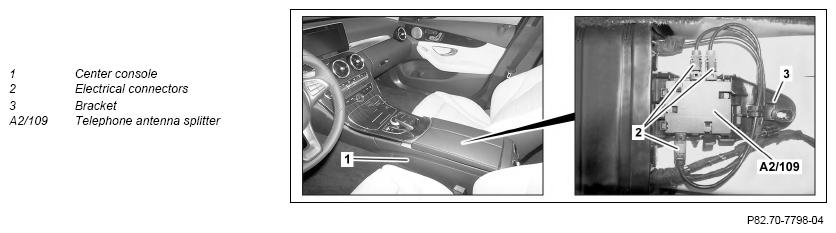

Fig 1: Antenna Splitter Components Location - Model 253 with code(s) 348 and 386

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove center console (1)	Model 253 with transmission 716 with code 348 (Emergency call/assistant system)	AR68.20-P-2000LWA
		Model 253 with transmission 716 with code 386 (Comfort telephony) Model 253 with transmission 724, 725 with code 348 (Emergency call/assistant system) Model 253 with transmission 724, 725 with code 386 (Comfort telephony)	AR68.20-P-2000LWG
2	Separate electrical connectors (2)	Note color coding of electrical connections.
3	Unclip telephone antenna splitter (A2/109) from bracket (3) and guide out toward rear
4	Install in the reverse order
