Remove/Install Additional Brake Lamp - AR82.10-P-5376LWX
Model 253.3
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | Model 253.3 with code 871 (HANDS-FREE ACCESS) with code 889 (KEYLESS-GO) | AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Remove upper liftgate paneling | AR72.20-P-6631LWG | |

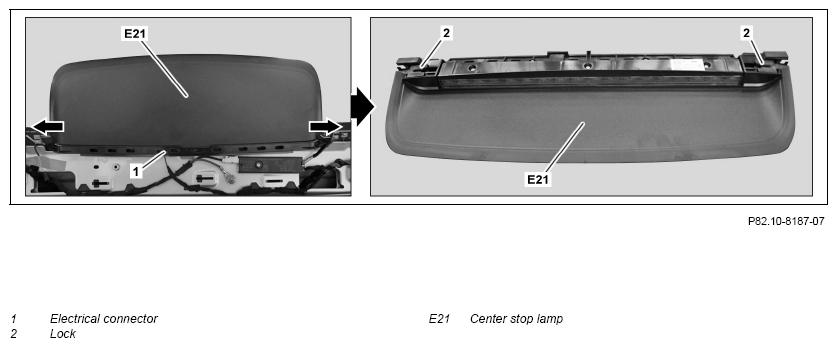

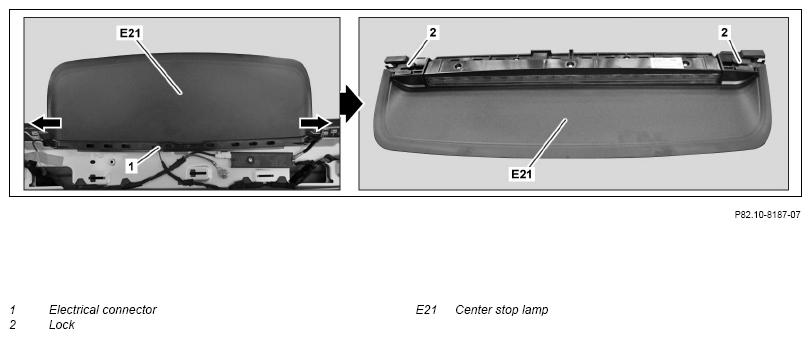

| 2 | Disconnect electrical connection (1) | ||
| 3 | Use suitable tool to release catches (2) from below in direction of arrow and remove center brake lamp (E21) | ||
| 4 | Install in the reverse order |
