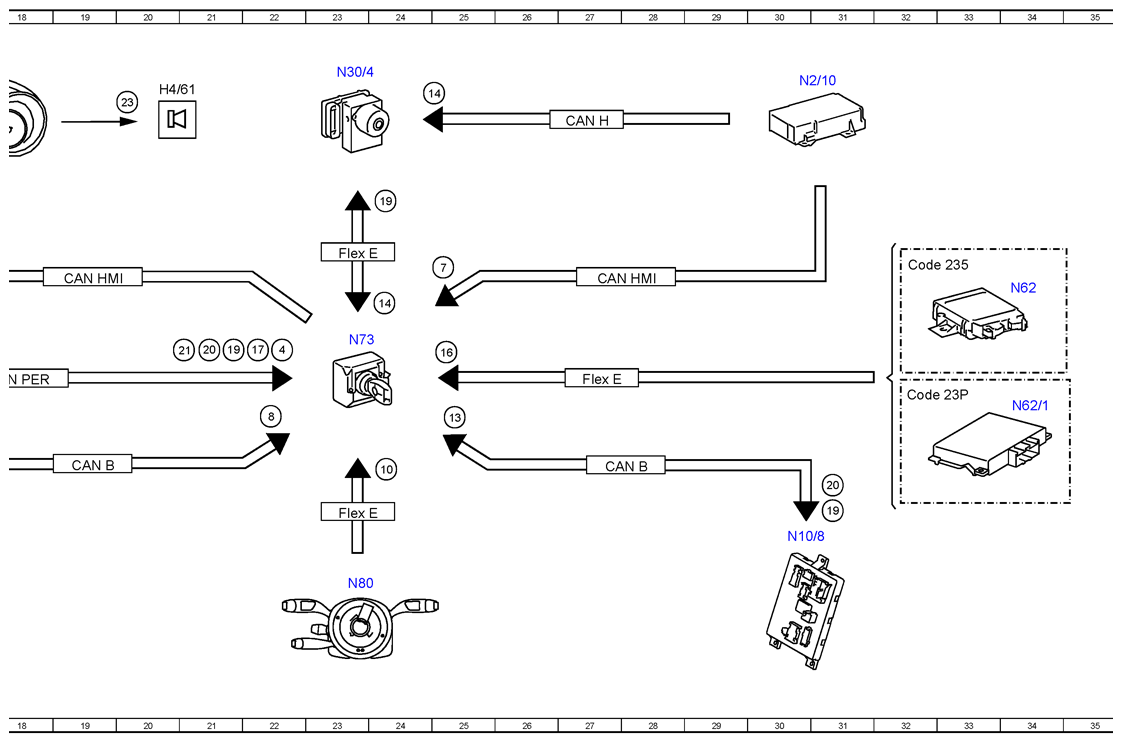

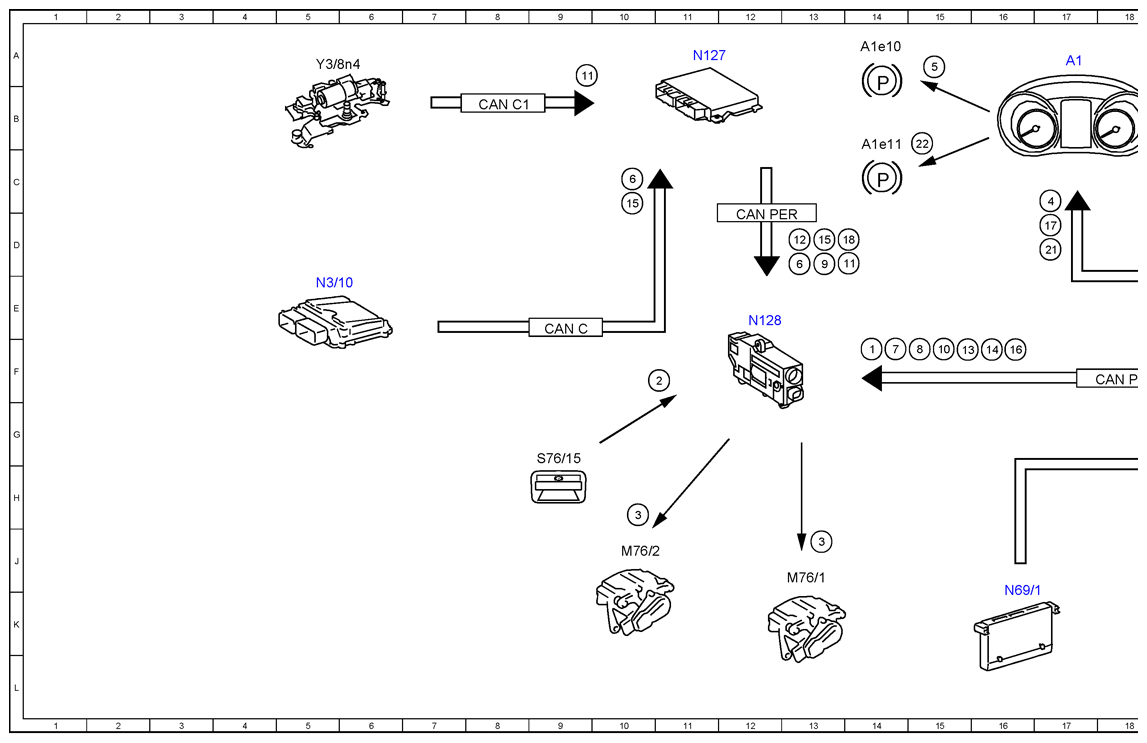

Electrical Function Schematic For Electric Parking Brake - PE42.20-P-2050-97FBB
Model 205, 253 with engine 177 up to model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 14F |
| 10 | Selector lever position, status | 24H |
| 10 | Selector lever position, status | 15F |
| 11 | Gear range, status | 9A |
| 11 | Gear range, status | 14D |
| 12 | Accelerator pedal position, signal | 13D |
| 13 | Trunk lid/liftgate lock main catch switch, status | 16F |
| 13 | Trunk lid/liftgate lock main catch switch, status | 25G |
| 14 | Speed, turn rate and lateral acceleration, signal | 24B |
| 14 | Speed, turn rate and lateral acceleration, signal | 16F |
| 14 | Speed, turn rate and lateral acceleration, signal | 24E |
| 15 | Engine torque, signal | 10C |
| 15 | Engine torque, signal | 13D |
| 16 | Electric parking brake, request | 16F |
| 16 | Electric parking brake, request | 25F |
| 17 | Parking brake, status | 17D |
| 17 | Parking brake, status | 22F |
| 18 | Drivetrain operational, signal | 14D |
| 19 | Emergency stop, signal | 24C |
| 19 | Emergency stop, signal | 31H |
| 19 | Emergency stop, signal | 22F |
| 2 | Electric parking brake switch, status | 11F |
| 20 | Brake lights, request | 31H |
| 20 | Brake lights, request | 21F |
| 21 | Instrument cluster, message | 17D |
| 21 | Instrument cluster, message | 21F |
| 22 | Parking brake warning lamp, actuation | 15B |
| 23 | Speaker, actuation | 20B |
| 3 | Electric parking brake actuator motor, actuation | 10H |
| 3 | Electric parking brake actuator motor, actuation | 13J |
| 4 | Indicator lamp, request | 22F |
| 4 | Indicator lamp, request | 17C |
| 5 | Parking brake indicator lamp, actuation | 15A |
| 6 | Engine running, signal | 10C |
| 6 | Engine running, signal | 13D |
| 7 | Seat belt buckle restraint system switch, status | 25D |
| 7 | Seat belt buckle restraint system switch, status | 14F |
| 8 | Door rotary tumbler switch, status | 22G |
| 8 | Door rotary tumbler switch, status | 15F |
| 9 | Engaged gear, signal | 13D |
| A1 | Instrument cluster | 17A |
| A1e10 | Parking brake indicator lamp | 14A |
| A1e11 | Parking brake indicator lamp | 14B |
| CAN B | Interior CAN | 19H |
| CAN B | Interior CAN | 27H |
| CAN C | Engine CAN | 9E |
| CAN C1 | Drive train CAN | 8B |
| CAN H | Vehicle dynamics CAN | 27B |
| CAN HMI | User interface CAN | 19E |
| CAN HMI | User interface CAN | 27E |
| CAN PER | Peripherals CAN | 12D |
| CAN PER | Peripherals CAN | 18F |
| Code 235 | Active Park Assist | 32D |
| Code 23P | Driver assistance package | 32F |
| Flex E | Chassis FlexRay | 23H |
| Flex E | Chassis FlexRay | 23D |
| Flex E | Chassis FlexRay | 27F |
| H4/61 | Instrument cluster speaker | 20B |
| M76/1 | Left electric parking brake actuator motor | 13J |
| M76/2 | Right electric parking brake actuator motor | 10J |
| N10/8 | Rear SAM control unit | 30J |
| N127 | Drivetrain control unit | 11A |
| N128 | Electric parking brake control unit | 12E |
| N2/10 | Supplemental restraint system control unit | 30A |
| N3/10 | ME-SFI [ME] control unit | 5E |
| N30/4 | Electronic Stability Program control unit | 23A |
| N62 | Parking system control unit | 34E |
| N62/1 | Radar sensors control unit | 34G |
| N69/1 | Left front door control unit | 16K |
| N73 | Electronic ignition switch control unit | 23F |
| N80 | Steering column module control unit | 23J |
| S76/15 | Electric parking brake switch | 9G |
| Y3/8n4 | Fully integrated transmission control, control unit | 5A |
