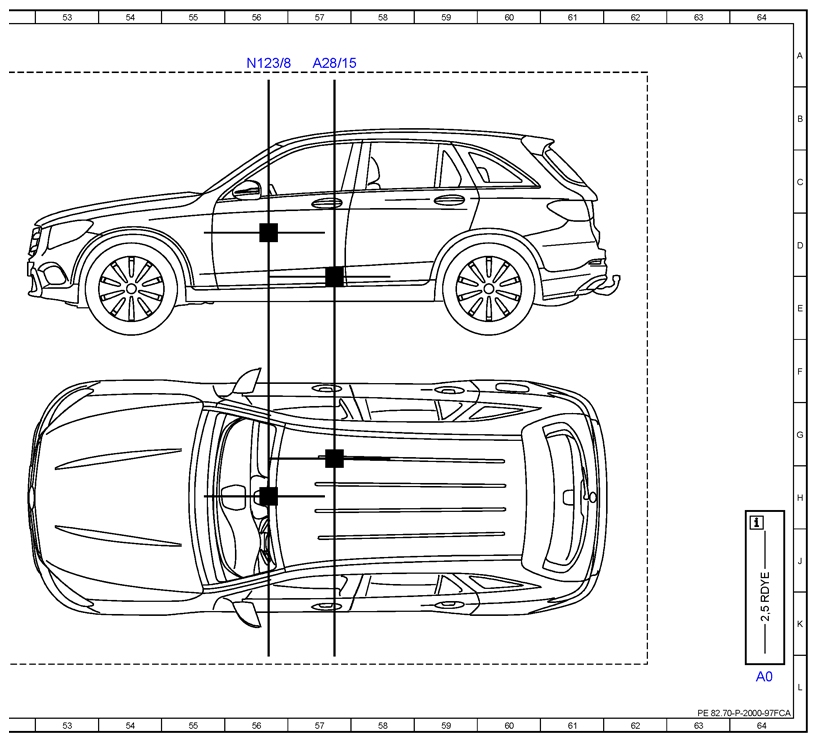

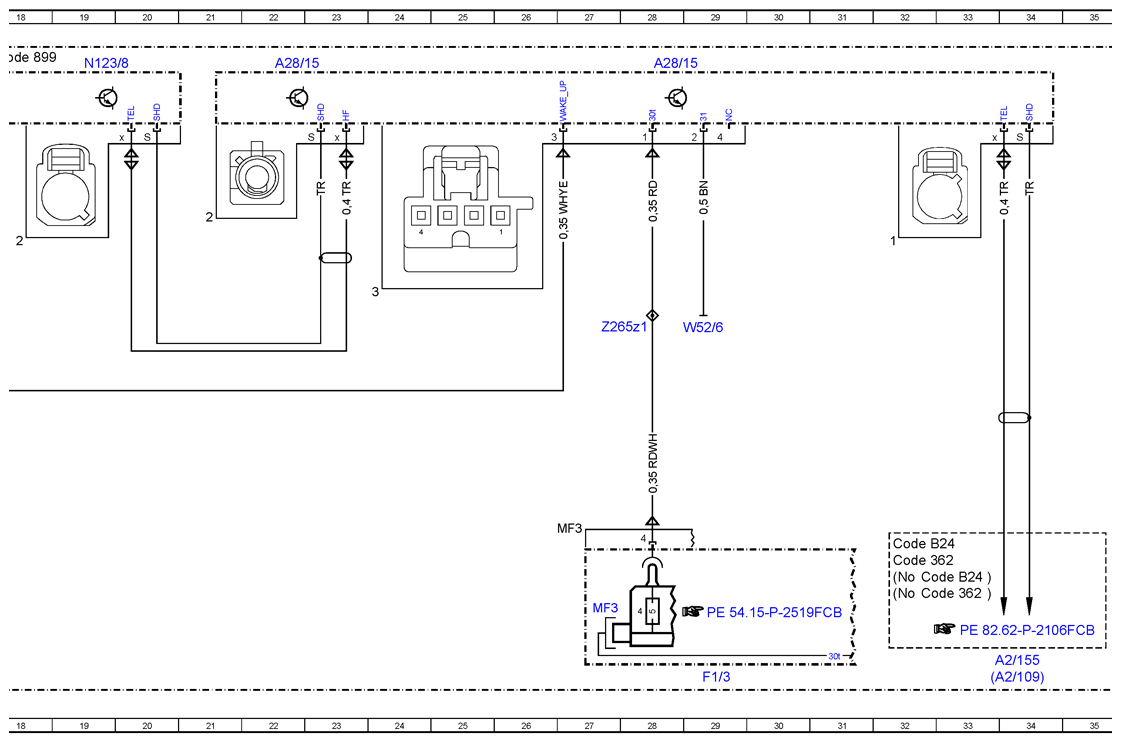

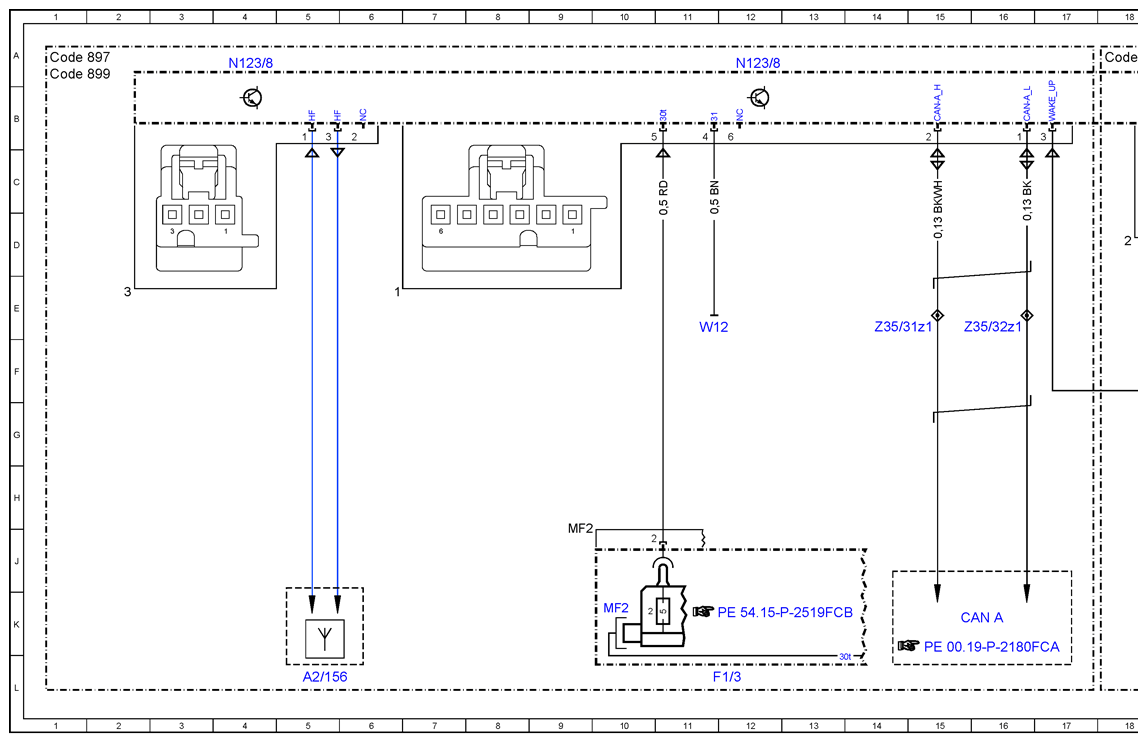

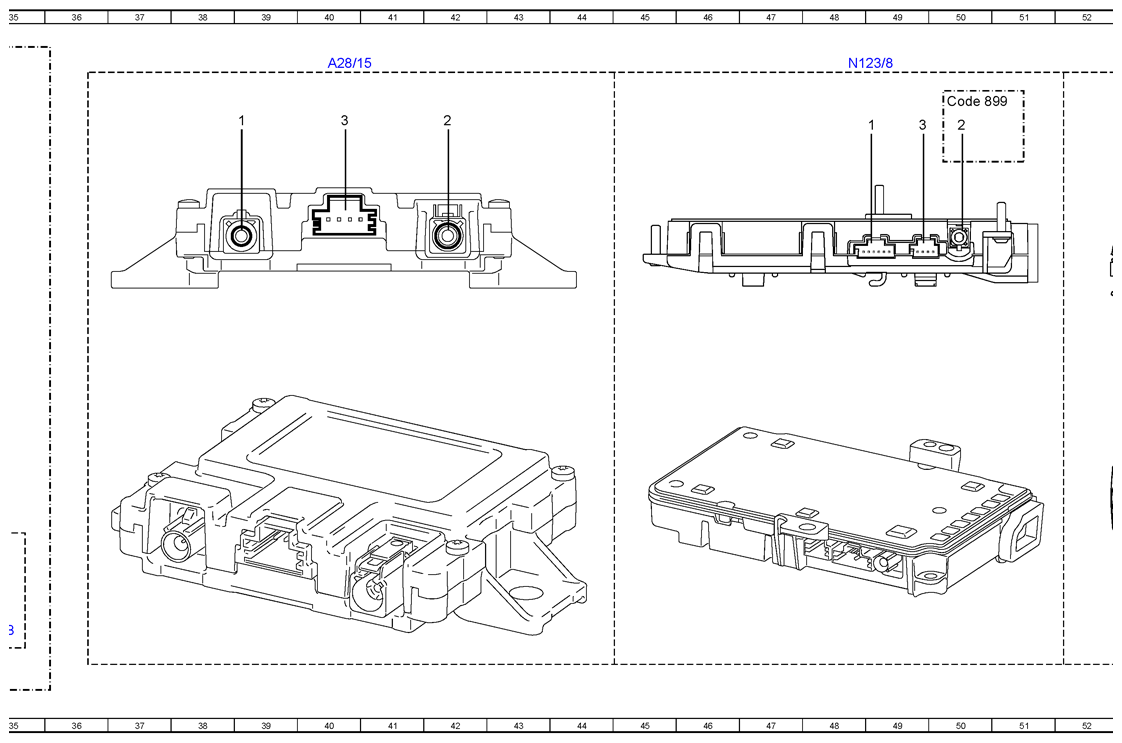

Telephone (TEL) Wiring Diagram - PE82.70-P-2000-97FCA
Model 253 (except 253.99) as of model year 2020 with code 897 (Front wireless telephone charging) with code 899 (Multifunction telephony)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| A2/109 | Telephone antenna splitter | 34L |
| A2/155 | Telephone and stationary heater antenna changeover switch | 34L |
| A2/156 | Near Field Communication antenna | 5L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 22A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 28A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 40A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 57A |
| CAN A | Telematics CAN | 16K |
| Code 362 | HERMES LTE | 32J |
| Code 362 | HERMES LTE | 32K |
| Code 897 | Wireless mobile phone charging | 1A |
| Code 899 | Wireless phone charging at front and antenna | 1A |
| Code 899 | Wireless phone charging at front and antenna | 18A |
| Code 899 | Wireless phone charging at front and antenna | 50B |
| Code B24 | Radio remote control for stationary heater | 32J |
| Code B24 | Radio remote control for stationary heater | 32J |
| F1/3 | Passenger-side A-pillar fuse box | 12L |
| F1/3 | Passenger-side A-pillar fuse box | 29L |
| F1/3MF2 | Multiple fuse 2 | 10K |
| F1/3MF3 | Multiple fuse 3 | 27K |
| N123/8 | Mobile phone cradle control unit | 12A |
| N123/8 | Mobile phone cradle control unit | 4A |
| N123/8 | Mobile phone cradle control unit | 19A |
| N123/8 | Mobile phone cradle control unit | 48A |
| N123/8 | Mobile phone cradle control unit | 56A |
| W12 | Ground point (center console) | 11E |
| W52/6 | Right center longitudinal member ground point | 29E |
| Z265z1 | Terminal 30t connector sleeve | 28E |
| Z35/31z1 | Head unit CAN (high) connector sleeve | 14E |
| Z35/32z1 | Head unit CAN (low) connector sleeve | 16E |
