Remove/Install TV Card Reader - AR82.85-P-7367LXM
Model 253
as of model year 2020
with code 865 (digital TV)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Open glove compartment. | ||

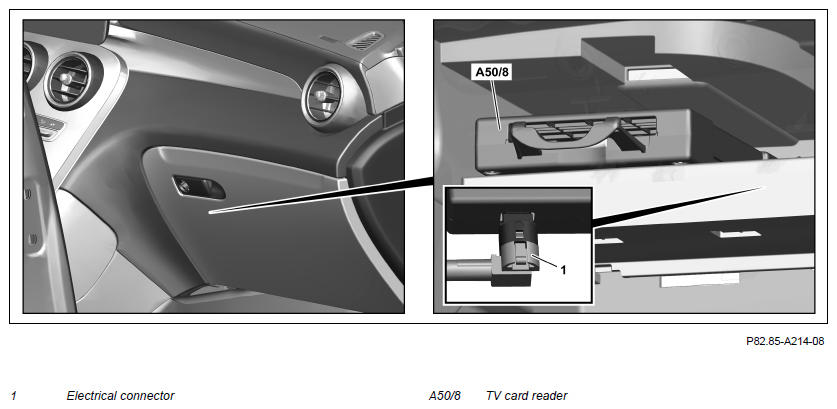

| 3 | Unclip TV card reader (A50/8) and remove until electrical connector (1) is accessible. | Fig 1 | |
| 4 | Disconnect electrical connector (1) and remove TV card reader (A50/8) from glove compartment. | ||
| 5 | Install in the reverse order. |
