Wiper Blade Heater, Basic Function - GF82.30-P-2005A
Model all (CAR)
with code 874 (MAGIC VISION CONTROL, heated)

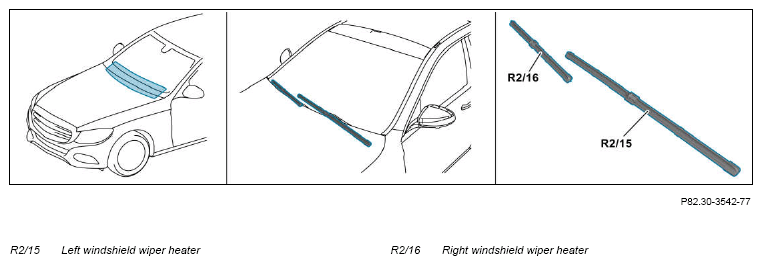

Location
The wiper blade heater is integrated as foil into the wiper blades.
Task
When a voltage is applied, the foil heats up because of the electrical resistance. The heat is used to prevent the washer fluid nozzles in the wiper blades from freezing and to prevent the wiper rubber sticking to the windshield.
Their flexibility is retained by heating up the wiper blades all over.
The wiper blade heater is actuated by the front central control unit.
