Augmented Reality Camera, Component Description - GF82.85-P-3144RFM
Model 253 (except 253.99)
as of model year 2020
with code 21U (Video recording function (Dash cam))
Model 253 (except 253.99)
as of model year 2020
with code U19 (Augmented reality video)
Show on model 253.9

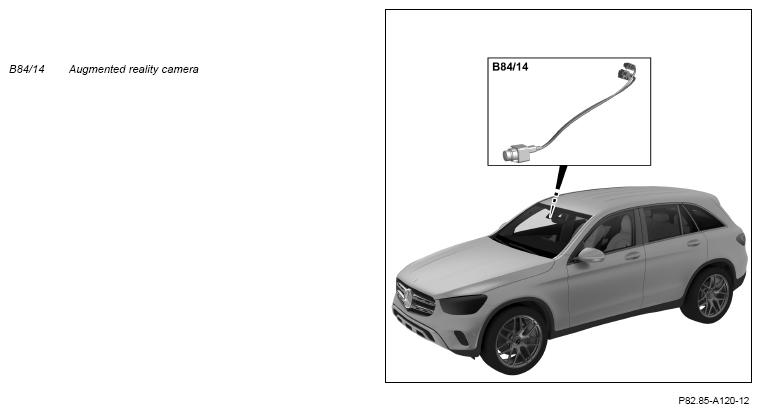

Fig 1: Augmented Reality Camera Component Location - Model 253 (Except 253.99) As Of M.Y. 2020 With Code 21U, U19 (Shown On Model 253.9)
Location
The augmented reality camera is installed on the top windshield in front of the inside rearview mirror.
Tasks
The augmented reality camera records the surroundings in front of the vehicle and forwards the video images to the head unit (A26/17). As a result, the augmented reality camera fulfills the following tasks in detail:
- Reception of control signals via the user interface CAN (CAN HMI) from the head unit
- Image recording
- Sending video images via a HSVL line (high speed video link) to the head unit
| Wiring diagram for augmented reality camera | PE54.21-P-2159-97FCA |
