Exterior Lights Function - GF82.10-P-0003RF
Model 205, Model 253

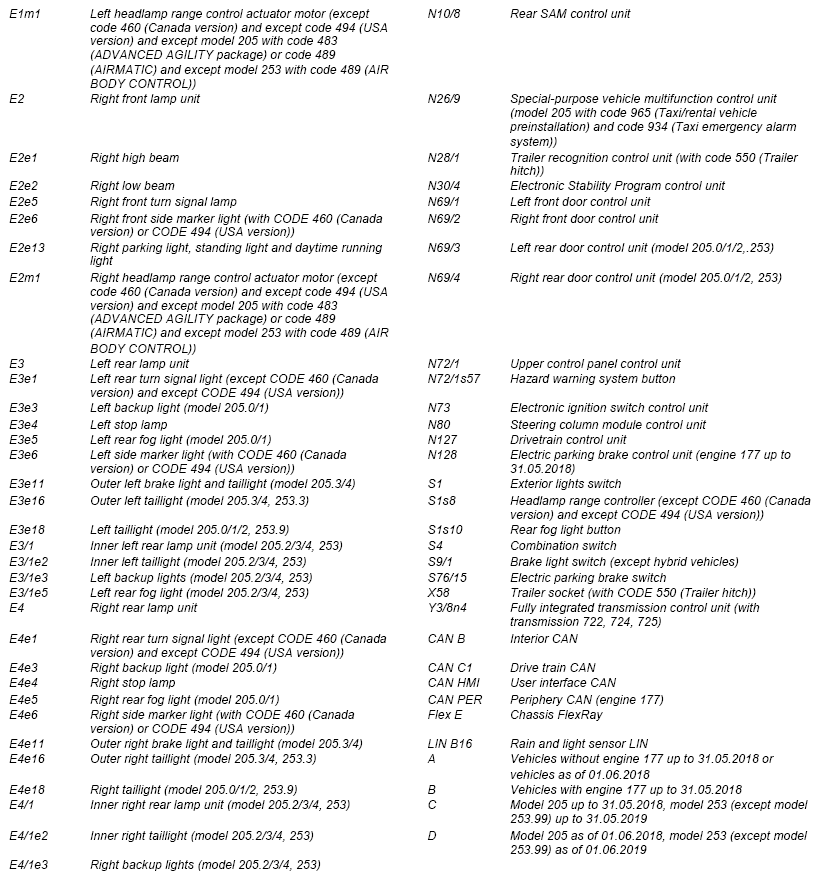

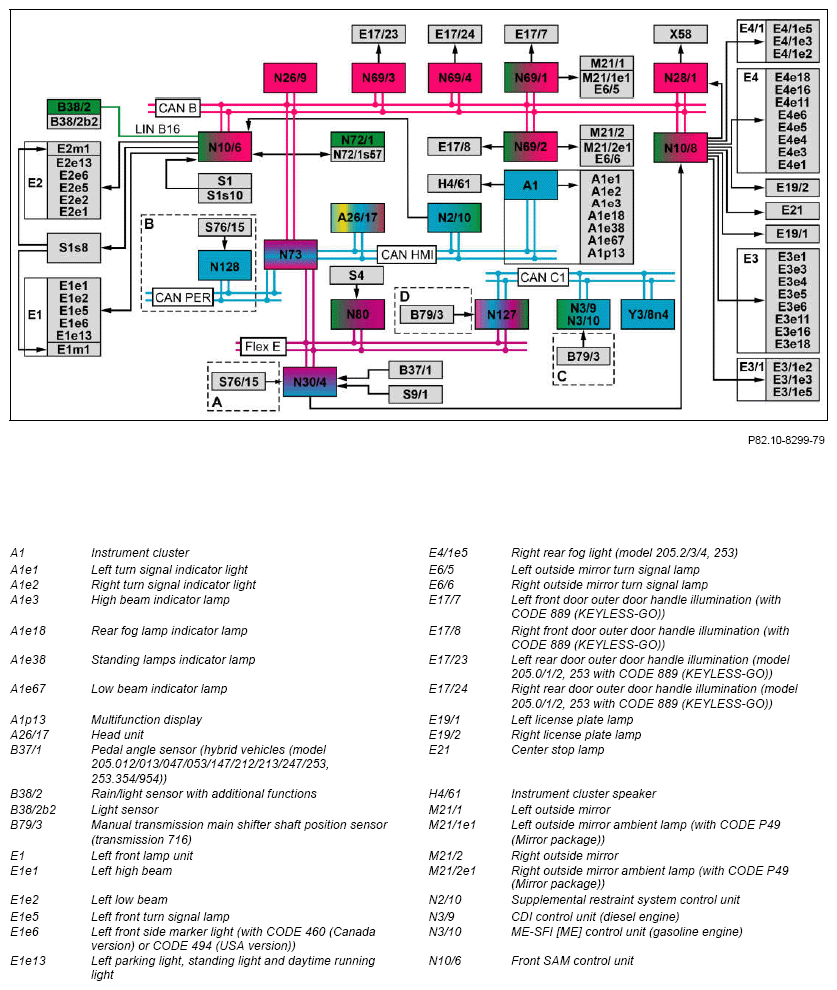

Except CODE 631 (Static left-hand traffic LED headlamp), and except CODE 632 (Static right-hand traffic LED headlamp), and except CODE 640 (High Performance LED), and except CODE 641 (DYNAMIC LEFT-HAND TRAFFIC LED HEADLAMP), and except CODE 642 (DYNAMIC RIGHT-HAND TRAFFIC LED HEADLAMP)

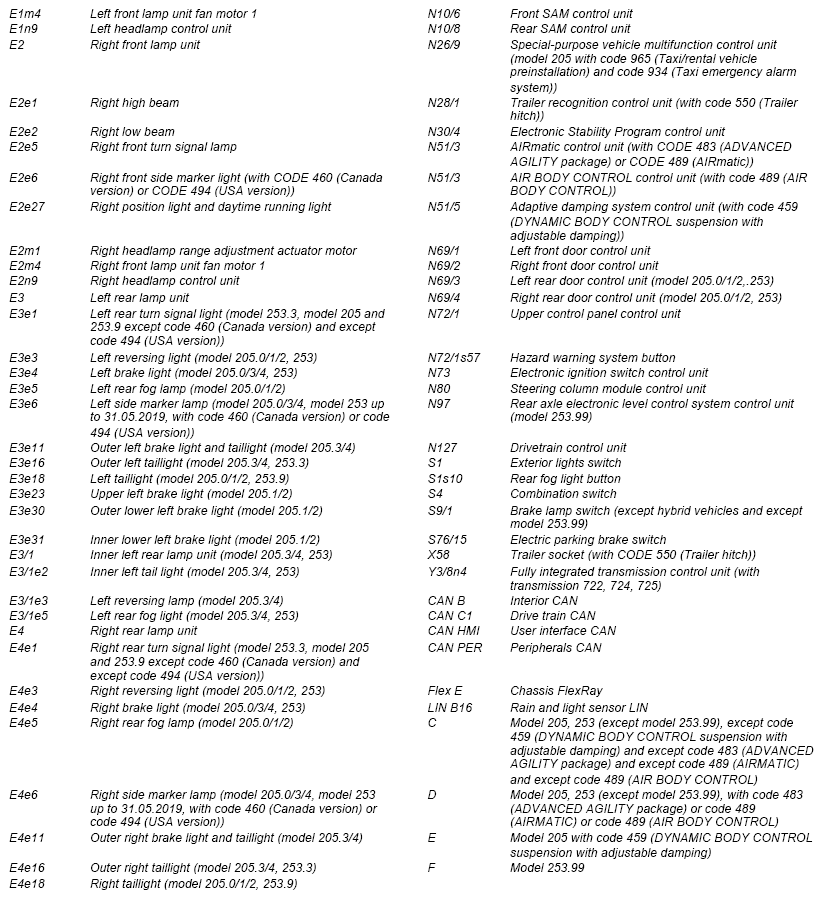

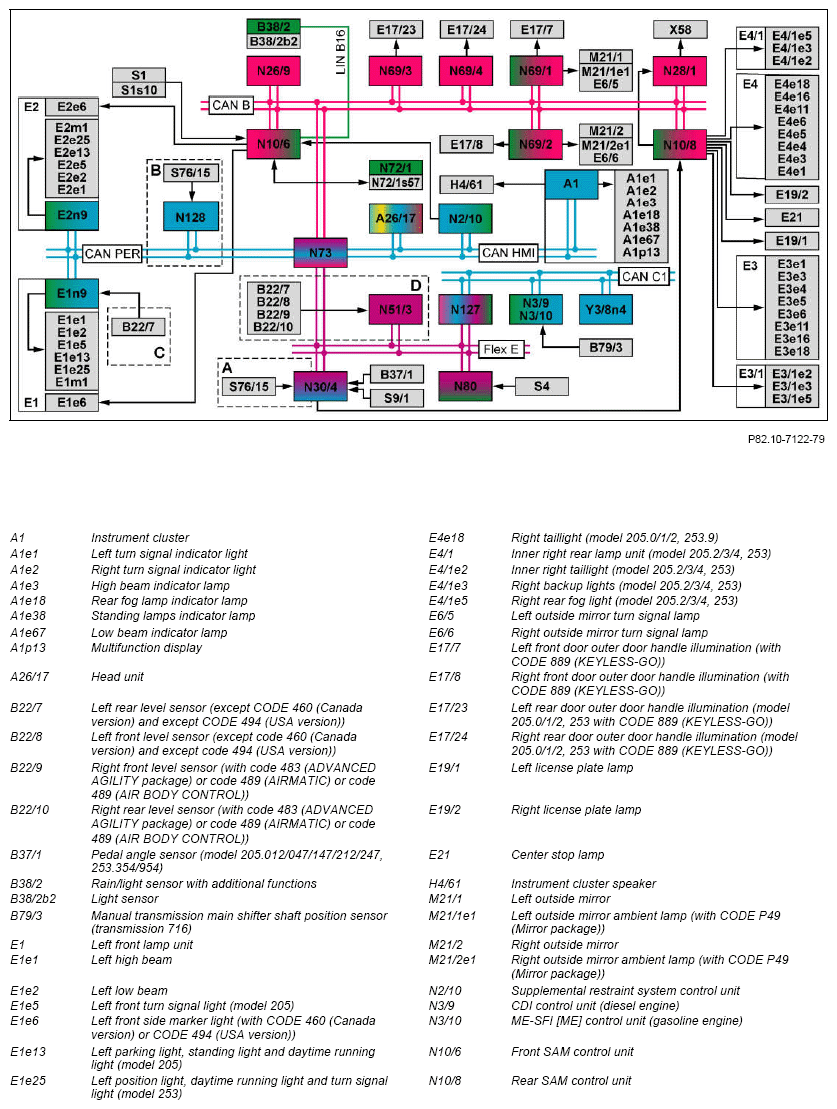

Model 205 as of 01.06.2018, Model 253 (except model 253.99) as of 01.06.2019, Model 253.99, with code 631 (Left-hand drive static LED headlamp), or code 632 (Right-hand drive static LED headlamp)

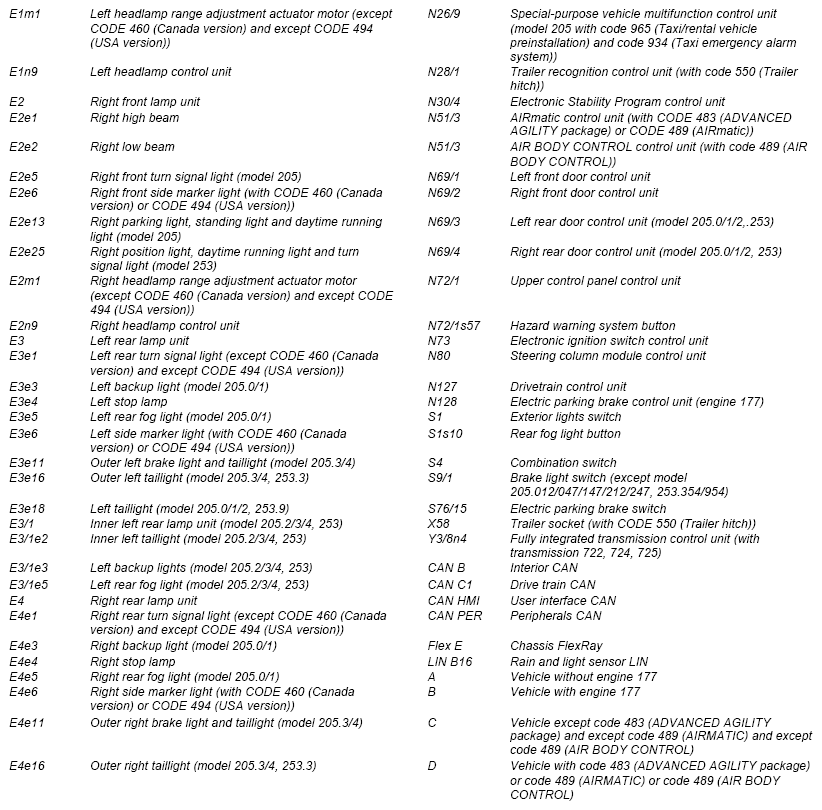

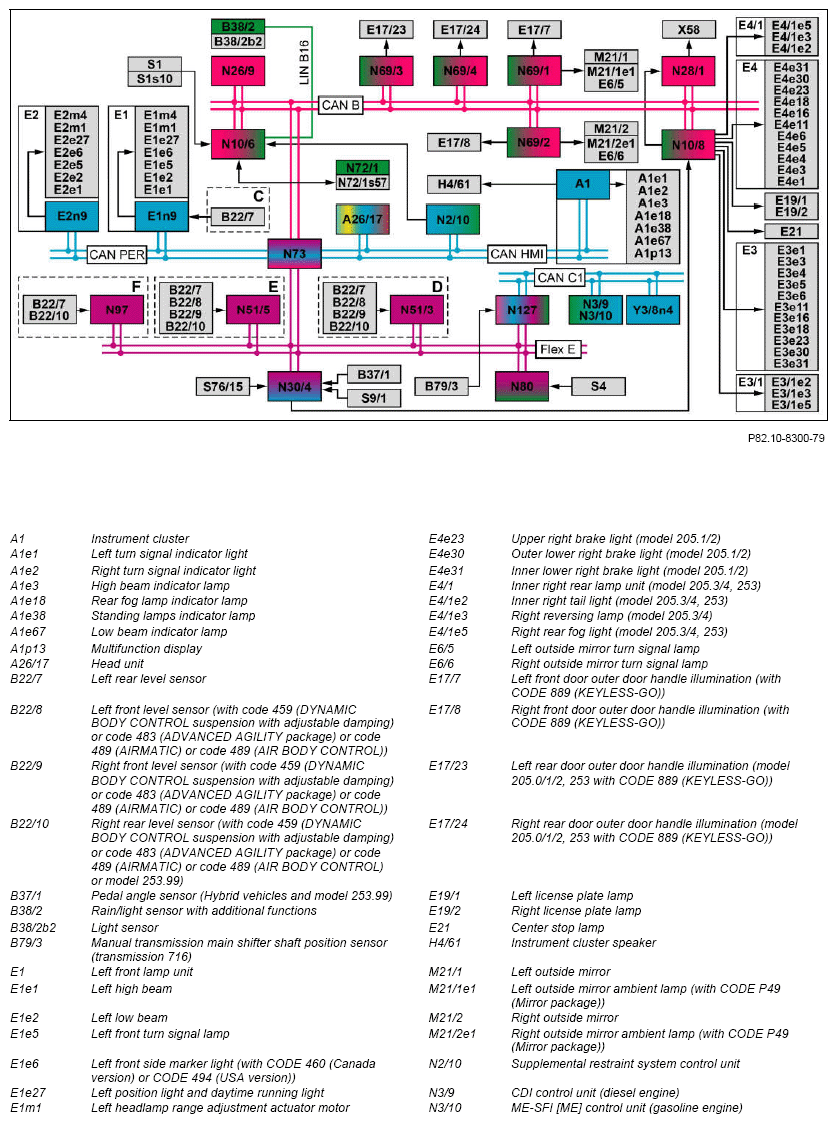

Model 205 up to 31.05.2018, Model 253 (except model 253.99) up to 31.05.2019, with code 631 (Left-hand drive static LED headlamp), or code 632 (Right-hand drive static LED headlamp)

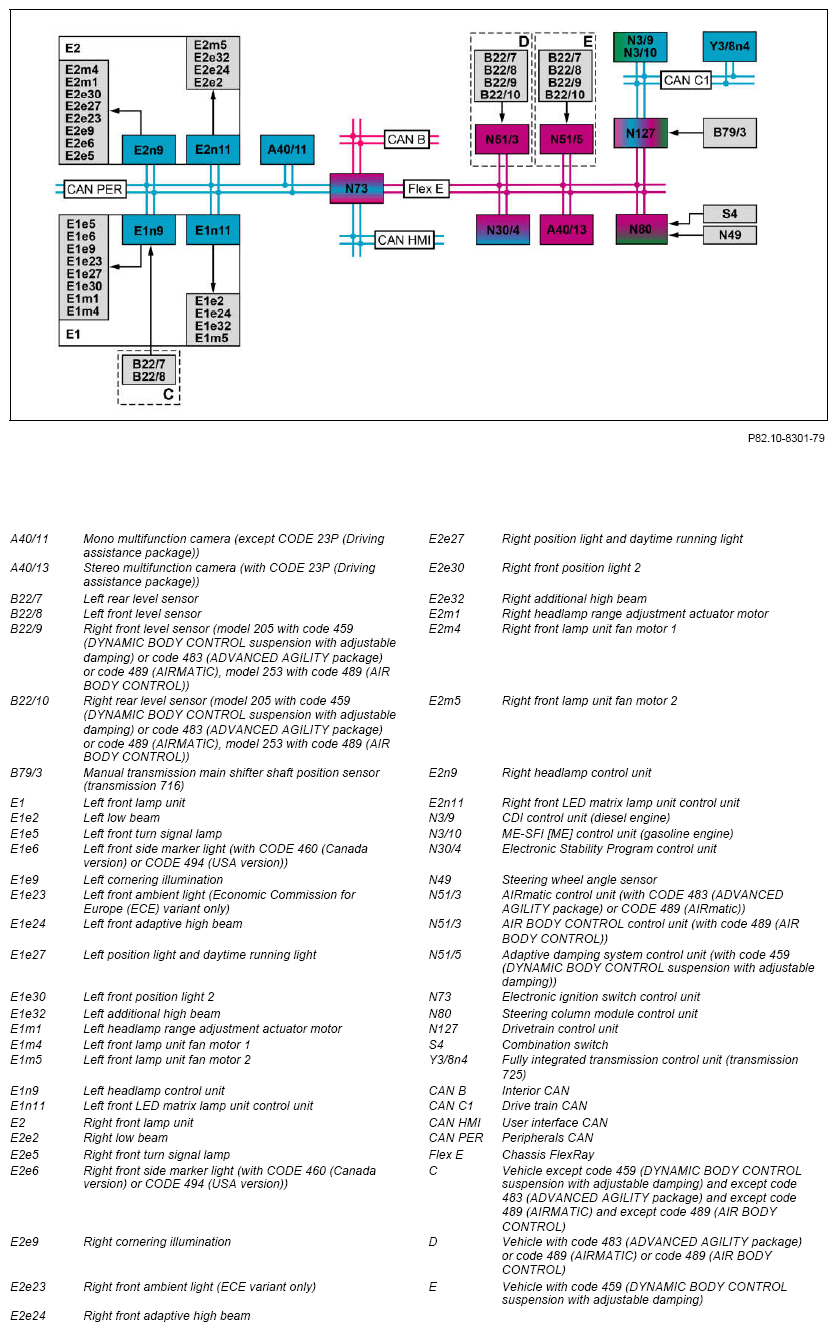

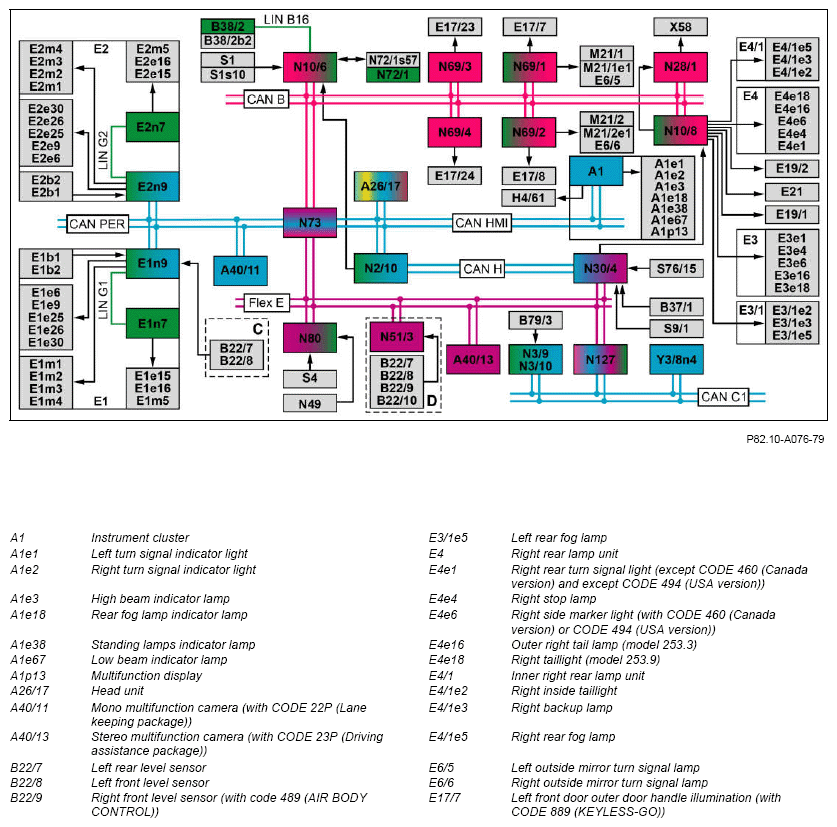

Model 205 as of 01.06.2018, Model 253 (except model 253.99) as of 01.06.2019, with code 640 (High Performance LED), or code 641 (left-hand drive dynamic LED headlamp), or code 642 (right-hand drive dynamic LED headlamp)

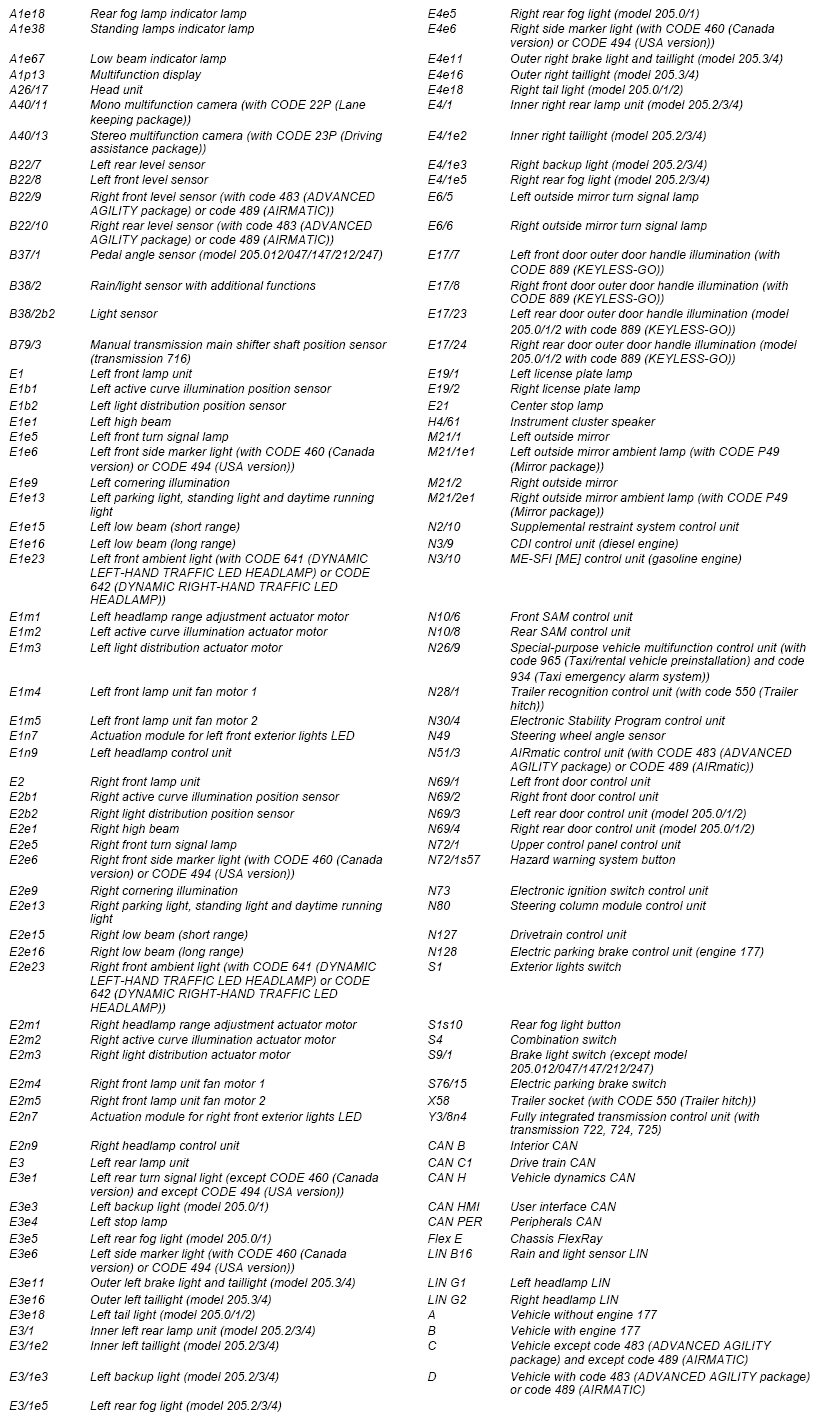

Model 205 as of 01.06.2018, Model 253 (except model 253.99) as of 01.06.2019, with code 640 (High Performance LED), or code 641 (left-hand drive dynamic LED headlamp), or code 642 (right-hand drive dynamic LED headlamp)

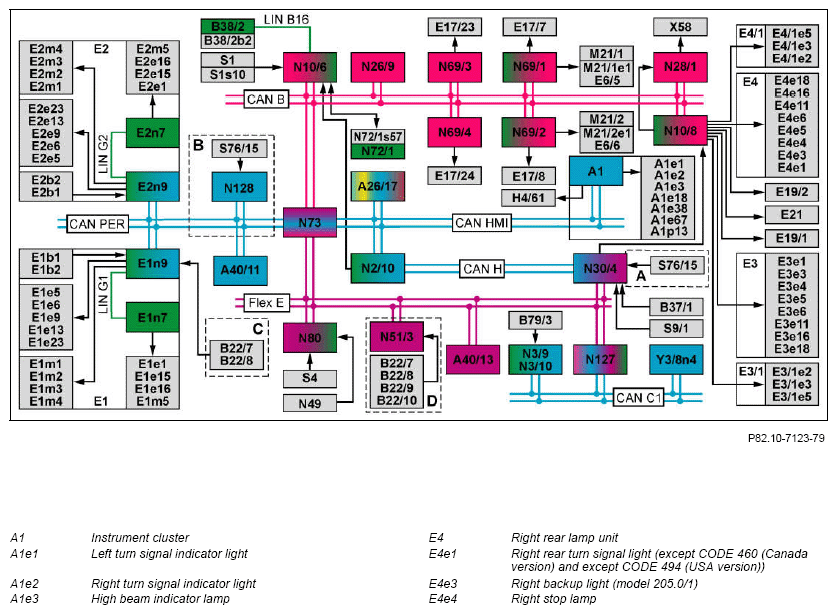

Model 205 up to 31.05.2018 with code 640 (High Performance LED), or code 641 (Left-hand drive dynamic LED headlamp), or code 642 (Right-hand drive dynamic LED headlamp)

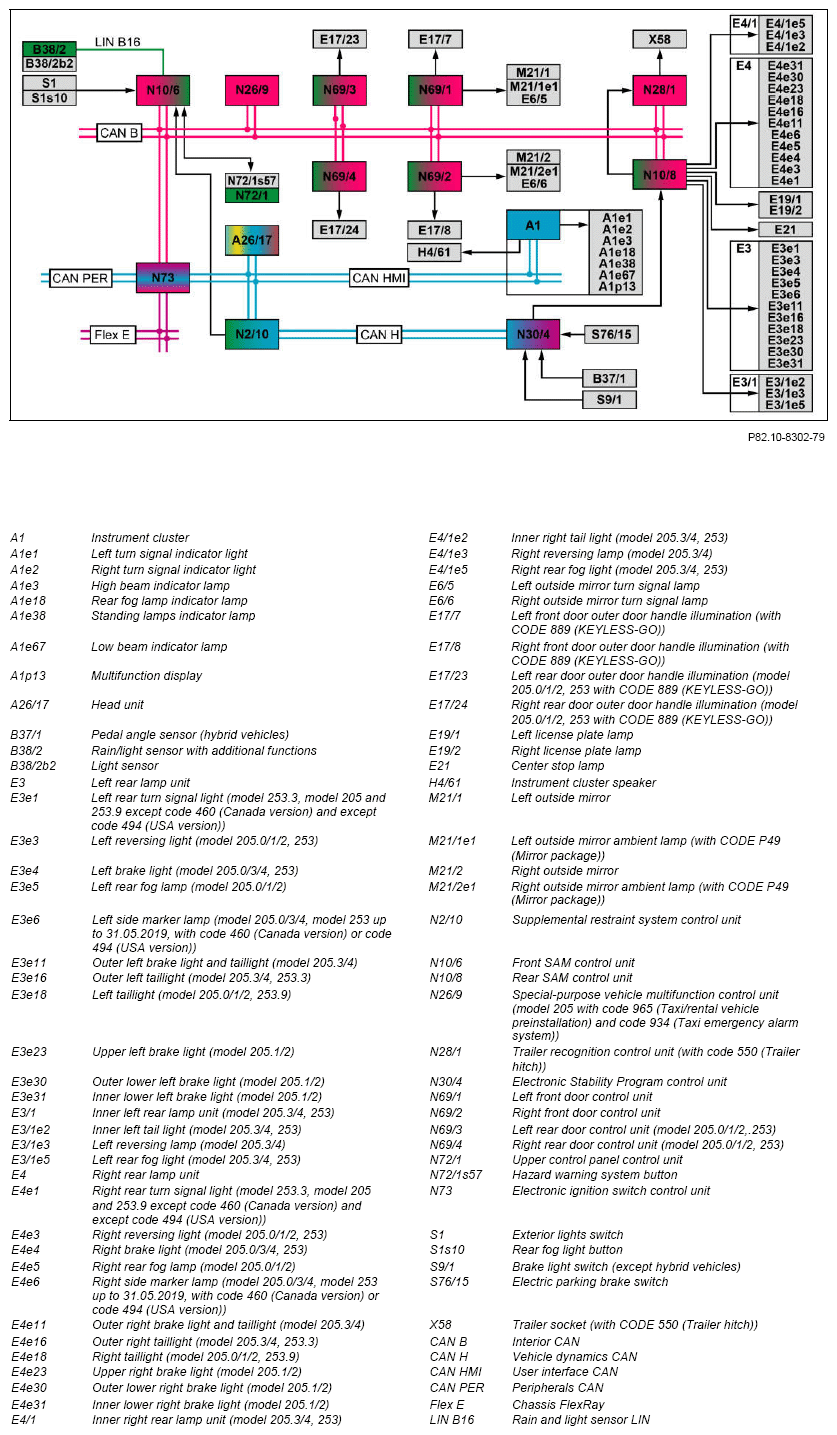

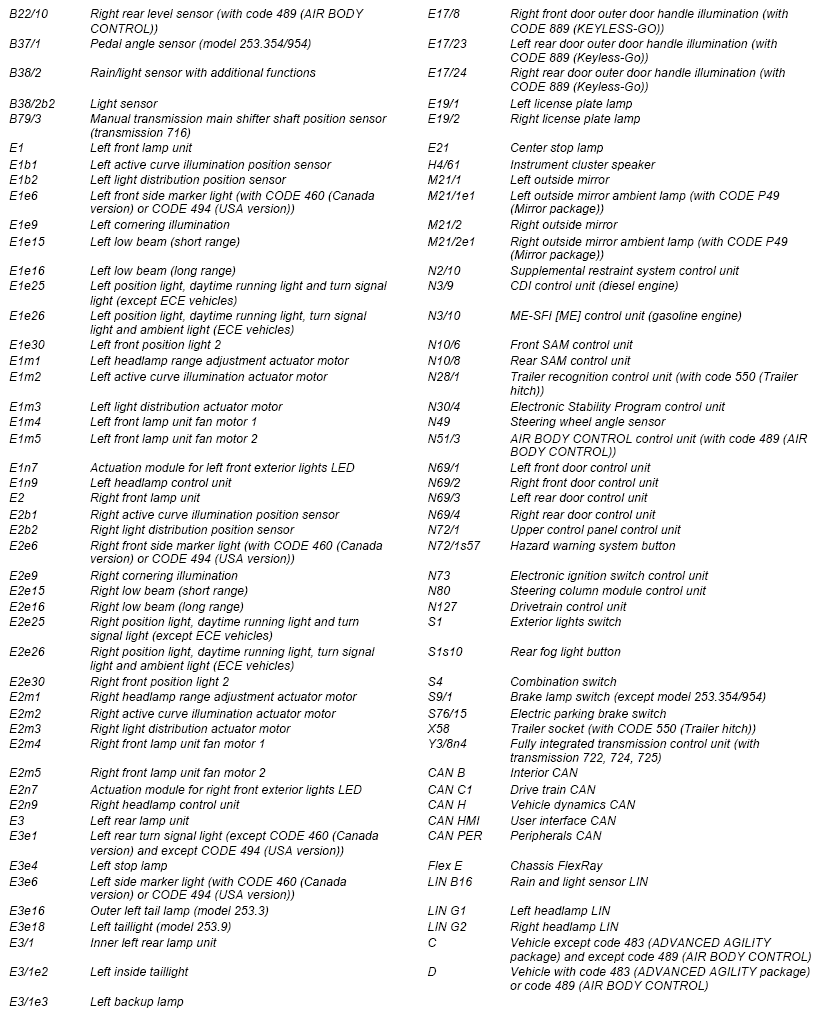

Model 253 (except model 253.99) up to 31.05.2019 with code 640 (High Performance LED), or code 641 (Left-hand drive dynamic LED headlamp), or code 642 (Right-hand drive dynamic LED headlamp)
Function requirements, general
- Circuit 30 ON
Exterior lights, general
The exterior lights control all the safety and comfort-relevant functions of the front, side and rear lights of the vehicle.
Several functions of the exterior lights are only restrictedly available if transport, production, roller or trade fair mode has been activated or if a testing function has been activated (e.g. Technical Inspection Association check).
- Transport mode:
Transport mode describes a special status during transport of the vehicle from the manufacturer's to the end customer's. In transport mode, only the base functions of the exterior lights (e.g. low beams, turn signal) are available.
If circuit 15 is ON and the vehicle is not at a standstill, the low beams are switched on automatically after 2 s. These conditions can also be fulfilled if the vehicle is moved in any direction by a vehicle lift or during loading.
- Production mode:
Production mode describes a special status during production of the vehicle. In production mode, only the base functions of the exterior lights (e.g. low beams, turn signal) are available. The switch position of the exterior lights switch is ignored.
- Roller mode:
Roller mode describes a special status for the time in which the vehicle is on a roller dynamometer (e.g. brake test, certification). In roller mode, only the daytime running lights are actuated, even when it is dark (request for auto on/off driving lights via the light sensor).
- Trade fair mode:
Trade fair mode describes a special status for the time in which the vehicle is exhibited (e.g. consumer fair, exhibition, presentation). In trade fair mode, all light functions can be switched on via the diagnostic tester (regardless of the switch position of the exterior lights switch).
- Check function:
All lighting functions can be switched on via the diagnostic tester for the technical vehicle inspection.
A differentiation is made between the following versions of the front lamp units in accordance with the vehicle equipment:
- Halogen headlamps
(Except CODE 631 (Static left-hand traffic LED headlamp), and except CODE 632 (Static right-hand traffic LED headlamp), and except CODE 640 (High Performance LED), and except CODE 641 (DYNAMIC LEFT-HAND TRAFFIC LED HEADLAMP), and except CODE 642 (DYNAMIC RIGHT-HAND TRAFFIC LED HEADLAMP))
- LED headlamp (static)
(With CODE 631 (Static left-hand traffic LED headlamp), or code 632 (Static right-hand traffic LED headlamp))
- LED headlamp (dynamic)
(With CODE 640 (High Performance LED), or code 641 (DYNAMIC LEFT-HAND TRAFFIC LED HEADLAMP), or code 642 (DYNAMIC RIGHT-HAND TRAFFIC LED HEADLAMP))
The exterior lights include the following subfunctions:
- Function sequence for front lamp unit thermal management (LED headlamp (static) (Model 205 as of 01.06.2018, Model 253 (except model 253.99) as of 01.06.2019, Model 253.99), LED headlamp (dynamic))
- Function sequence for increasing on-board electrical system voltage (halogen headlamps)
- Function sequence for switching off the exterior lights
Further functions are described in separate documents:
- Standing/parking lights actuation function
- Standing lights actuation
- Lights on warning
- Parking lamp actuation
- Headlamp control function
- Low beam actuation
- High beam actuation (high beams, headlamp flasher)
- Daytime running lamps actuation
- Auto on/off driving lights (via rain/light sensor with additional functions, via wiper activities)
- Headlamp range adjustment (HRA)
- Intelligent Light System function (LED headlamp (dynamic))
- Cornering illumination
- Active curve illumination
- Active light distribution (motorway lights, extended fog light function)
- Adaptive Highbeam Assist function (LED headlamp (dynamic))
- Optical headlamp range adjustment
- Automatic high beams
- Partial high beams
- Front fog light actuation, function
- Turn signal light actuation function
- Turn signaling (left turn signal, right turn signal, one-touch turn signaling)
- Hazard warning flashing
- Brake lights actuation function
- Backup light actuation function
- Ambient illumination, function
- Headlamp delayed switch-off
- Locator lighting (AFB)
- Substitute lamp control/emergency light actuation function
Function sequence for front lamp unit thermal management (LED headlamp (static) (Model 205 as of 01.06.2018, Model 253 (except model 253.99) as of 01.06.2019, Model 253.99), LED headlamp (dynamic))
The front lamp units have temperature sensors that are used to sense the heat development in the areas actuated by the LED. If the LED or the plastic housings for the front lamp units threaten to overheat as a consequence of excessively high outside temperatures or high actuation currents, the actuating currents of the LEDs are reduced, thereby lowering the heat development. The headlamp control units evaluate the signals from five temperature sensors each. The front actuation modules, LED exterior lighting evaluate the signals of three temperature sensors each.
The following components are integrated into the front lamp units for active ventilation:
- Fan motor 1, left front lamp unit, actuated by left headlamp control unit (Model 205 as of 01.06.2018, Model 253 (except model 253.99) as of 01.06.2019, Model 253.99)
- Fan motor 2, left front lamp unit, actuated by left front LED matrix lamp unit control unit (LED headlamp (dynamic)) (Model 205 as of 01.06.2018, Model 253 (except model 253.99) as of 01.06.2019)
- Fan motor 2, left front lamp unit, actuated by left front LED exterior lighting actuation module (LED headlamp (dynamic)) (Model 205 up to 31.05.2018, Model 253 (except model 253.99) up to 31.05.2019)
- Fan motor 1, right front lamp unit, actuated by right headlamp control unit (Model 205 as of 01.06.2018, Model 253 (except model 253.99) as of 01.06.2019, Model 253.99)
- Fan motor 2, right front lamp unit, actuated by right front LED matrix lamp unit control unit (LED headlamp (dynamic)) (Model 205 as of 01.06.2018, Model 253 (except model 253.99) as of 01.06.2019)
- Fan motor 2, right front lamp unit, actuated by right front LED exterior lighting actuation module (LED headlamp (dynamic)) (Model 205 up to 31.05.2018, Model 253 (except model 253.99) up to 31.05.2019)
The fan motors are actuated as soon as the low beams or the high beams are switched on. The active ventilation through actuation of the fan motors is used simultaneously for defrosting and de-icing the front lamp units at low outside temperatures.
Function sequence for increasing on-board electrical system voltage (halogen headlamps)
When the on-board electrical system voltage is decreased by the energy management below the minimum voltage of a light function during normal driving operation, the front SAM control unit can suppress shutoff of the corresponding light function. For this purpose, the front SAM control unit requests the minimum voltage necessary for the corresponding light function. The light functions for which the increase of the on-board electrical system voltage is to be activated can be defined at the end of production.
The following functions can be coded:
- Actuation of low beams in dark
- Backup light actuation
- Rear fog lights actuation
Function sequence for switching off the exterior lights
By switching off the exterior lights, the on-board electrical system load by the active standing or parking lights actuation is reduced.
Discharge of the on-board electrical system battery (G1) is prevented.
The low beams can be switched on because of the auto on/off driving lights, daytime running lights (only on vehicles with code 498 (Japan version) and halogen lamp unit) or manually via the exterior lights switch. It is automatically deactivated with circuit 15 OFF if the engine was switched off beforehand and the vehicle is at a standstill. The standing lights may be switched on because of the manually switched on low beams, the auto on/off driving lights, the daytime running lights (only on vehicles with code 498 (Japan version) and LED lamp unit) or manually via the exterior lights switch.
If the driver door is opened with terminal 15C ON or if the driver door is closed when terminal 15C is switched off, the standing light is switched off.
If the energy management system determines that the starting capability of the engine is impaired, the standing lights are switched off provided that they were manually activated (exterior lights switch in standing lights or parking lights position).
If the "Ambient illumination" function has been activated via the head unit, it automatically switches itself on when the engine is turned off. The standing lights remain on for the configured period from the point at which the last door, the trunk lid or the liftgate was closed.
| Standing/parking lights actuation, function | Model 205 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99 |
GF82.10-P-3060RFM | |
| Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 |
GF82.10-P-3060RF | ||
| Headlamp control, function | Model 205, Model 253 except code 631 (Static LED headlamps, left-hand traffic) except code 632 (Headlamps, LED, static, right-side traffic) except code 640 (High-performance LED) except code 641 (Dynamic LED headlamps, left-hand traffic) except code 642 (Dynamic LED headlamps, right-hand traffic) |
GF82.10-P-2009RF | |
| Model 205 as of model year 2019 with code 631 (Static LED headlamps, left-hand traffic) Model 205 as of model year 2019 with code 632 (Headlamps, LED, static, right-side traffic) Model 205 as of model year 2019 with code 640 (High-performance LED) Model 205 as of model year 2019 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 as of model year 2019 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253 (except 253.99) as of model year 2020 with code 631 (Static LED headlamps, left-hand traffic) Model 253 (except 253.99) as of model year 2020 with code 632 (Headlamps, LED, static, right-side traffic) Model 253 (except 253.99) as of model year 2020 with code 640 (High-performance LED) Model 253 (except 253.99) as of model year 2020 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 (except 253.99) as of model year 2020 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253.99 with code 631 (Static LED headlamps, left-hand traffic) Model 253.99 with code 632 (Headlamps, LED, static, right-side traffic) |
GF82.10-P-2009RFM | ||
| Model 205 up to model year 2019 with code 631 (Static LED headlamps, left-hand traffic) Model 205 up to model year 2019 with code 632 (Headlamps, LED, static, right-side traffic) Model 205 up to model year 2019 with code 640 (High-performance LED) Model 205 up to model year 2019 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 up to model year 2019 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253 (except 253.99) up to model year 2020 with code 631 (Static LED headlamps, left-hand traffic) Model 253 (except 253.99) up to model year 2020 with code 632 (Headlamps, LED, static, right-side traffic) Model 253 (except 253.99) up to model year 2020 with code 640 (High-performance LED) Model 253 (except 253.99) up to model year 2020 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 (except 253.99) up to model year 2020 with code 642 (Dynamic LED headlamps, right-hand traffic) |
GF82.10-P-2009RFA | ||
| Function of Intelligent Light System | Model 205 as of model year 2019 with code 640 (High-performance LED) Model 205 as of model year 2019 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 as of model year 2019 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253 (except 253.99) as of model year 2020 with code 640 (High-performance LED) Model 253 (except 253.99) as of model year 2020 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 (except 253.99) as of model year 2020 with code 642 (Dynamic LED headlamps, right-hand traffic) |
GF82.10-P-3090RFM | |
| Model 205 up to model year 2019 with code 640 (High-performance LED) Model 205 up to model year 2019 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 up to model year 2019 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253 (except 253.99) up to model year 2020 with code 640 (High-performance LED) Model 253 (except 253.99) up to model year 2020 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 (except 253.99) up to model year 2020 with code 642 (Dynamic LED headlamps, right-hand traffic) |
GF82.10-P-3090RF | ||
| Function of Adaptive Highbeam Assist | Model 205, Model 253 with code 640 (High-performance LED) Model 205, Model 253 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205, Model 253 with code 642 (Dynamic LED headlamps, right-hand traffic) |
GF82.10-P-3091RF | |
| Front fog light actuation, function | GF82.10-P-3070RF | ||
| Turn signal indicator actuation, function | GF82.10-P-3008RF | ||
| Brake light actuation, function | GF82.10-P-3010RF | ||
| Backup lamp actuation, function | GF82.10-P-3011RF | ||
| Ambient illumination, function | GF82.10-P-2014RF | ||
| Substitute lights and emergency lights actuation, function | GF82.10-P-3080RF |
