Ambiance Illumination Control Unit, Component Description - GF82.20-P-5161RFM

Model 205

as of model year 2019

with code 877 (Ambient lighting)

Model 253 (except 253.99)

as of model year 2020

with code 877 (Ambient lighting)

Model 253.99

with code 877 (Ambient lighting)

Shown on model 205.0

Location

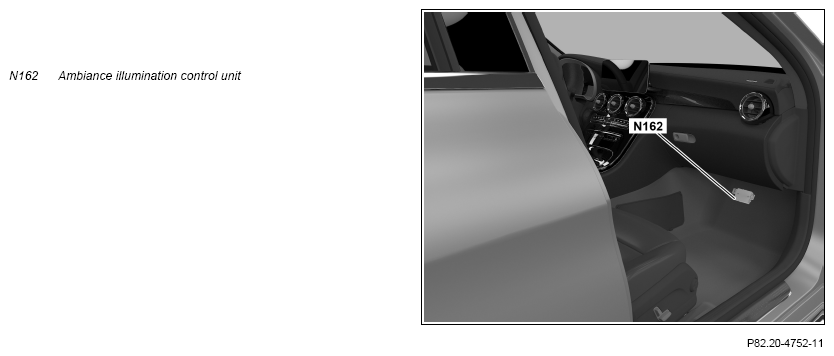

The ambiance illumination control unit is located in the front passenger footwell behind the cover.

Tasks

The ambient lighting control unit has the following tasks:

• Reading in of signals
• Evaluation of input factors
• Actuation of components

Reading in of signals

The ambiance illumination control unit reads in the following function-relevant information over the interior CAN, among other things:

• Luminosity and color with which the ambiance illumination is to be realized
• Terminal status of terminal 15
• Status of central locking
• Status of the front doors
• Status of the rear doors (Model 205.0/1/2, Model 253)
• Exit warning request (with code 23P (Driving Assistance Package), or code 234 (Blind Spot Assist))

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Actuation of components

The components are actuated via the following lines:

• Left front door ambient lighting LIN (LIN B30)
• Right front door ambient lighting LIN (LIN B31)
• Left rear door ambient lighting LIN (LIN B32) (Model 205.0/1/2, Model 253)
• Right rear door ambient lighting LIN (LIN B33) (Model 205.0/1/2, Model 253)
• Cockpit ambient lighting LIN (LIN B34)
• Vehicle interior ambient lighting LIN (LIN B35)
• Roof ambient lighting LIN (LIN B36)

Left front door ambiance illumination LIN

The signals are transmitted by the ambient lighting control unit via the left front door ambient lighting LIN.

Right front door ambiance illumination LIN

The signals are transmitted by the ambient lighting control unit via the right front door ambient lighting LIN.

Left rear door ambient lighting LIN (Model 205.0/1/2, Model 253)

The signals are transmitted by the ambient lighting control unit via the left rear door ambient lighting LIN.

Right rear door ambient lighting LIN (Model 205.0/1/2, Model 253)

The signals are transmitted by the ambient lighting control unit via the right rear door ambient lighting LIN.

Cockpit ambiance illumination LIN

The signals are transmitted by the ambient lighting control unit via the cockpit ambient lighting LIN.

Vehicle interior ambiance illumination LIN

The signals are transmitted by the ambient lighting control unit via the vehicle interior ambient lighting LIN.

Roof ambiance illumination LIN

The signals are transmitted by the ambient lighting control unit via the roof ambient lighting LIN.

	Wiring diagram of ambient lighting control unit	Model 253 (except 253.99) as of model year 2020 with code 877 (Ambient lighting), Model 253.99 as of model year 2019 with code 877 (Ambient lighting)	PE82.20-P-2101-97FCA
		Model 205 as of model year 2019 with code 877 (Ambient lighting)	PE82.20-P-2101-97FBA
