Retrofit rear-entertainment with two screens - AZ82.60-P-0015NKX

MODEL 156.9

Except vehicles with integrated head restraints

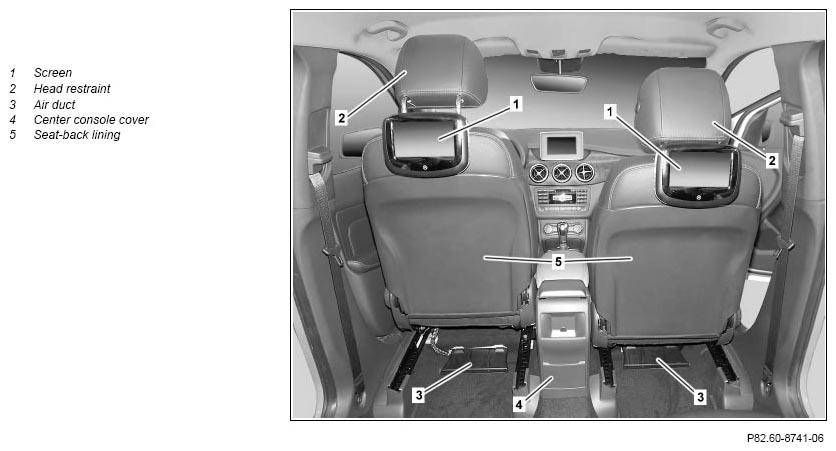

Fig 1: Screen, Head Restraint, Air Duct, Center Console Cover And Seat-Back Lining

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove center console cover (4) and detach center console in rear and central area
			AR68.20-P-2000NKB
2	Remove air duct (3) under left and right front seat
3	Remove seat-back lining (5) from left and right front seat backrest
			AR91.10-P-1910NKB
4.1	Loosen left and right head restraint motor	With CODE 242 (Electrically adjustable front passenger seat with memory) or with CODE 275 (Memory package (driver seat, mirrors))
			AR91.29-P-1432NKB
		Do not completely remove head restraint (2), simply loosen it.
4.2	Move left and right front seat head restraint (2) all the way to the top	Without CODE 242 (Electrically adjustable front passenger seat with memory) or without CODE 275 (Memory package (driver seat, mirrors))
	Install
5	Retrofit bracket for screen (1) to left and right front seat		AZ82.60-P-0015-04NKX
6	Retrofit rear entertainment wiring harness		AZ82.60-P-0015-02NKX
		Ensure that the wiring harnesses are not damaged by chafing or pinching. Otherwise the corresponding wiring harness must be replaced.
7	Attach screens (1) to bracket
8	Install remaining parts
9	Program rear entertainment infrared channel		AZ82.60-P-0015-05GZ
10	Program rear entertainment regional code		AZ82.60-P-0015-06GZ
11	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach note "Rear Seat Entertainment system with two screens retrofitted as per AZ82.60-P-0015NKX " under field organization texts .
12	Perform function test	See the appropriate rear entertainment operating instructions.

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98	Parts kit for rear entertainment with two screens	1
