Remove/install taillamp on liftgate - AR82.10-P-4925NKX

MODEL 156

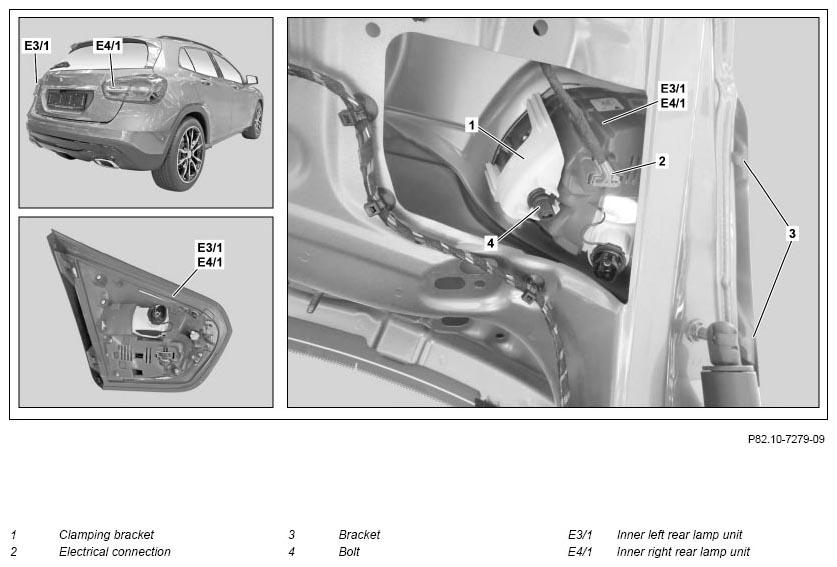

Fig 1: Taillamp On Liftgate Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove lower paneling from rear-end door
2	Disconnect electrical connection (2)
3	Detach clamping bracket (1)	Only unscrew screw/bolt (4) of clamping bracket (1) far enough until the left rear inner lamp unit (E3/1) or the right rear inner lamp unit (E4/1) is detached from the rear-end door.
4	Slightly raise left rear inner lamp unit (E3/1) or right rear inner lamp unit (E4/1), guide brackets (3) out of rear-end door and remove left rear inner lamp unit (E3/1) or right rear inner lamp unit (E4/1)	Carefully raise left rear inner lamp unit (E3/1) or right rear inner lamp unit (E4/1). The brackets (3) can break off.
5	Install in the reverse order
