Remove/install tailgate wiper arm - AR82.30-P-6910NKB
MODEL 117.9, 156, 176, 242, 246
Shown on MODEL 246
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | Always remove ignition key when working on windshield wiper mechanism. | AS82.30-Z-0001-01A | |
| Remove/install | |||
| 1 | Move windshield wiper system to park position | ||
| 2 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | ||
| 3 | Mark position of wiper arm (1) using strip of adhesive tape on rear window | ||
| 4 | Raise cover (2) | ||
| 5 | Loosen nut (3) by two turns | ||

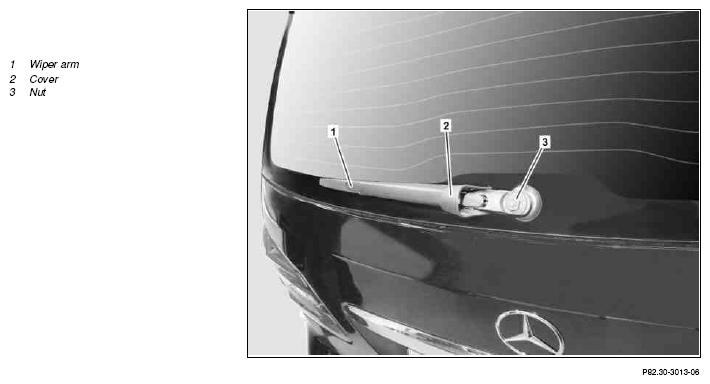

| 6 | Detach wiper arm (1) with puller from wiper motor | Figure | |
| 7 | Unscrew nut (3) and remove wiper arm (1) | ||
| *BA82.30-P-1004-01O | |||
| 8 | Install in the reverse order |
WINDSHIELD WIPER
| Number | Designation | MODEL 117 | MODEL 156 | |
|---|---|---|---|---|
| BA82.30-P-1004-01O | Wiper arm nut to rear-end door wiper motor | Nm | 20 | 20 |
WINDSHIELD WIPER
| Number | Designation | MODEL 176 | MODEL 242 | |
|---|---|---|---|---|
| BA82.30-P-1004-01O | Wiper arm nut to rear-end door wiper motor | Nm | 20 | 13 |
WINDSHIELD WIPER
| Number | Designation | MODEL 246 | |
|---|---|---|---|
| BA82.30-P-1004-01O | Wiper arm nut to rear-end door wiper motor | Nm | 13 |
