Remove/install antenna changeover switch - AR82.62-P-0010NKA
MODEL 156, 176, 242, 246 as of model year 2016 with CODE 386 (Comfort telephony) with CODE B24 (remote control for auxiliary heater)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Open service flap in paneling on right side of trunk | ||
| 3 | Release and disconnect electrical connectors at telephone and stationary heater antenna changeover switch (A2/155) | ||

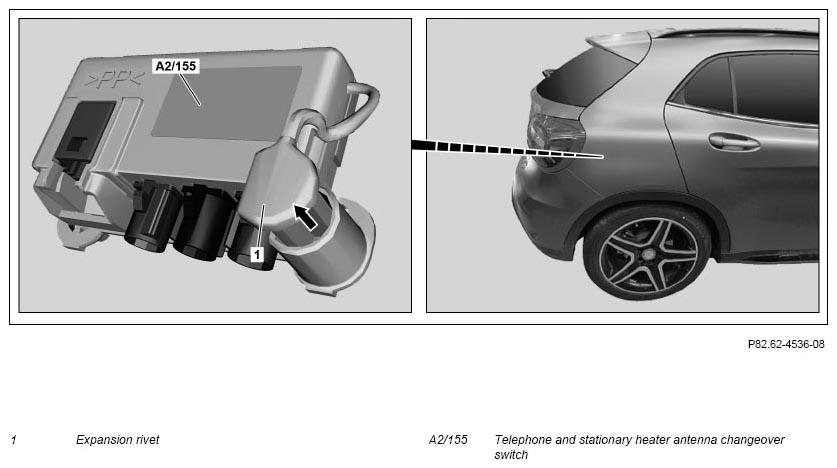

| 4 | Open expansion rivet (1) at telephone and stationary heater antenna changeover switch (A2/155) using suitable tool | ||
| 5 | Unclip and remove telephone and stationary heater antenna changeover switch (A2/155) | Figure | |
| 6 | Install in the reverse order |
