Remove/install antenna amplifier/compensator for telephone - AR82.62-P-0005NKX
MODEL 156 with CODE 386 (Comfort telephony)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

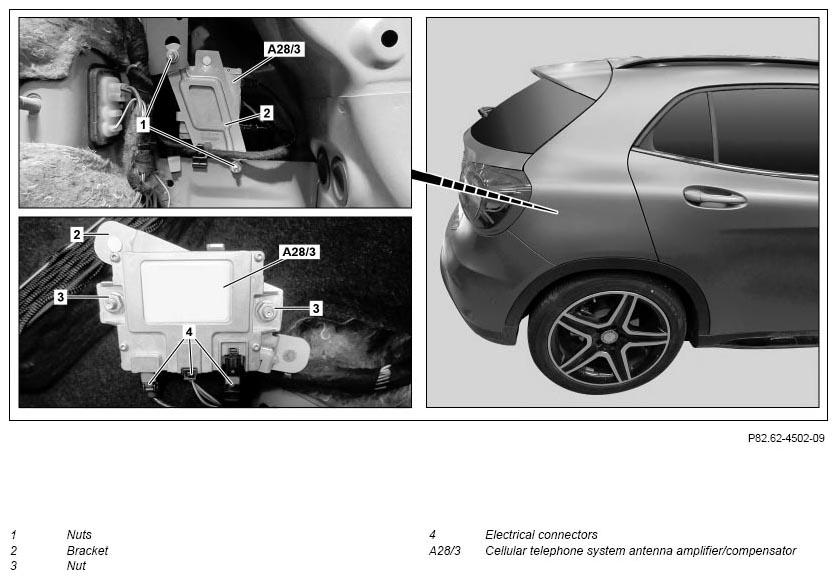

| 1 | Remove service flap from cover at side in right of trunk | ||
| 2 | Unfasten nuts (1) | ||
| 3 | Unhook, remove and turn over bracket (2) with cellular telephone system antenna amplifier/compensator (A28/3) and connected electrical connectors (4) | ||
| 4 | Release and disconnect electrical connections (4) | ||
| 5 | Unscrew nuts (3) and remove cellular telephone system antenna amplifier/compensator (A28/3) | ||
| 6 | Install in the reverse order |
