Remove/install LED module for front lamp unit - AR82.10-P-4656NKX

MODEL 156 up to model year 2016 with CODE 614 (Bi-xenon headlamps)

MODEL 156 up to model year 2016 with CODE 615 (Bi-xenon headlamps with active light function)

MODEL 156 up to model year 2016 with CODE 618 (Bi-xenon headlamps)

MODEL 156 up to model year 2016 with CODE 621 (Intelligent Light System (left-hand traffic))

MODEL 156 up to model year 2016 with CODE 622 (Intelligent Light System)

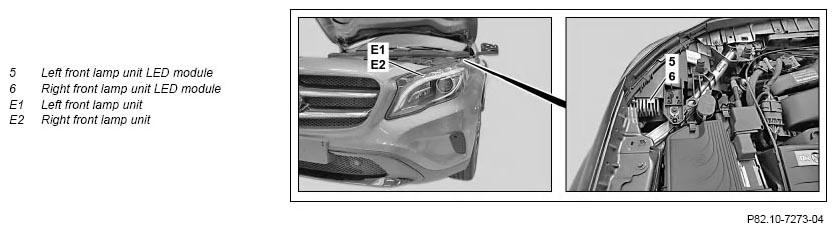

Fig 1: LED Module For Front Lamp Unit Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

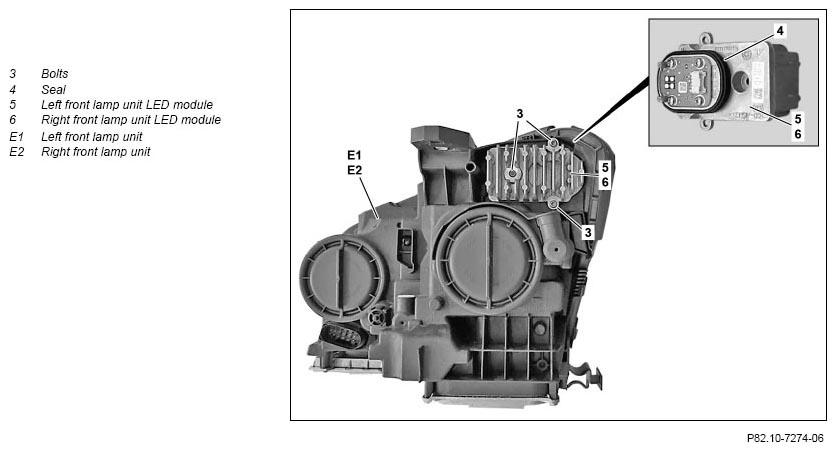

Fig 2: LED Module For Front Lamp Unit Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Perform initial startup of left front lamp unit LED module (5) or right front lamp unit LED module (6)	When replacing the left front lamp unit LED module (5) or right front lamp unit LED module (6).
			AD00.00-P-2000-04A
		Data Matrix code on the left front lamp unit (E1) or right front lamp unit (E2) must always be noted.
2	Remove left front lamp unit (E1) or right front lamp unit (E2)		AR82.10-P-4730NKX
3	Attach Data Matrix code adhesive label to left front lamp unit (E1) or right front lamp unit (E2)	When replacing the left front lamp unit LED module (5) or right front lamp unit LED module (6). The Data Matrix code adhesive label is included with the replacement part.
4	Remove bolts (3)
5	Remove left front lamp unit LED module (5) or right front lamp unit LED module (6)	Ensure that seal (4) is seated correctly.
6	Disconnect electrical connector at left front lamp unit LED module (5) or right front lamp unit LED module (6)
7	Install in the reverse order
