Remove/install HERMES antenna - AR82.95-P-0030NKA

MODEL 156, 176 with CODE 360 (HERMES UMTS)

MODEL 156, 176 with CODE 362 (HERMES LTE)

Shown on MODEL 176

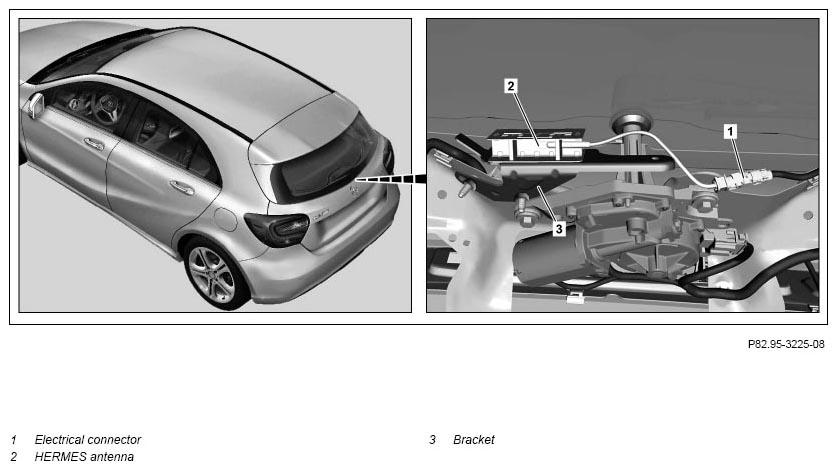

Fig 1: HERMES Antenna Remove/Install Components - Shown On Model 176

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch on ignition and store transmitter key outside of transmission range (min. 2 m)
2	Remove lower liftgate trim		AR72.20-P-6617NKA
3	Unclip center liftgate trim and remove	Long wedge	Figure
4.1	Release and disconnect electrical connection (1)	Model 176
4.2	Release and disconnect electrical connector from HERMES antenna (2)	Model 156
5.1	Unscrew nuts from bracket (3) and remove HERMES antenna (2) with bracket (3)	Model 176
5.2	Unscrew HERMES antenna (2) from bracket (3) and remove	Model 156 Screw/bolt remains on HERMES antenna (2).
6	Unclip electrical line from bracket (3)	Model 176 Only when replacing the HERMES antenna (2).
		Clip remover	Figure
7	Unfasten HERMES antenna (2) from bracket (3) with suitable tool	Model 176 Only when replacing the HERMES antenna (2). HERMES antenna (2) is secured by an adhesive joint.
		Bonding surfaces must be cleaned.
		Long wedge	Figure
8	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
