Remove/check/install front axle brake pads - AR42.10-P-1600MTA
MODEL 156.952, 176.052
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on installing brake wear indicator contact sensors | AH42.10-P-0003-01CW | ||
| Remove/install | |||
| 1 | Clean area around cap on expansion reservoir for brake fluid | ||
| 2 | Unscrew the cap on the brake fluid expansion reservoir and suction off some brake fluid | ||
| 3 | Detach front complete wheels | ||
| AP40.10-P-4050AK | |||

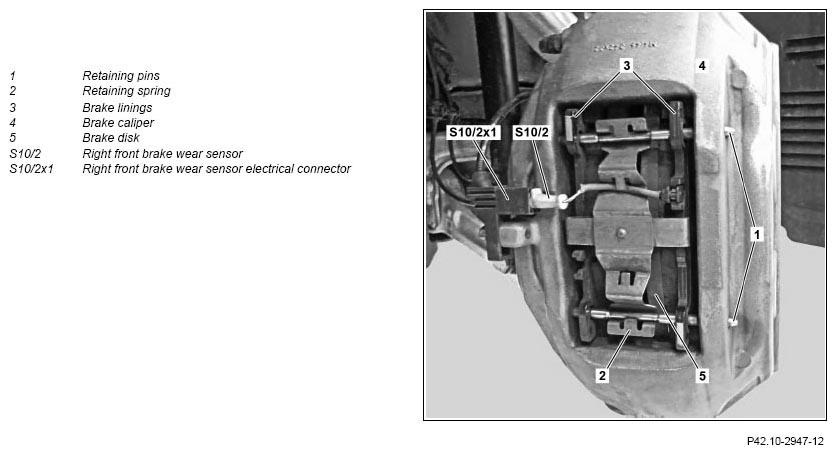

| 4 | Disconnect electrical connection for right front brake wear sensor (S10/2x1) from right front brake wear sensor (S10/2) | On the right side of the vehicle. | |
| 5 | Use suitable tool to knock out retaining pins (1) and remove retaining spring (2) | If the component condition is a problem ↓ Replace retaining pins (1) or retaining springs (2). |
|

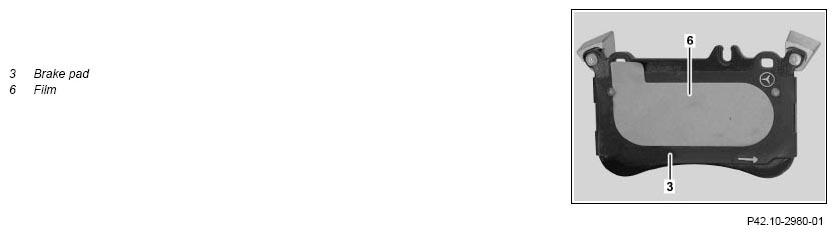

| 6 | Remove brake linings (3) from brake caliper (4) | Do not apply brake paste or lubricants to the brake linings (3) and brake calipers (4). Malfunctions may occur otherwise. If the brake linings (3) are new, the film (6) must be removed. The brake linings (3) are to be installed so that arrow on them faces towards the running direction of the brake disks (5). |
|
| Fig 5 | |||
| 7 | Pull right front brake wear sensor (S10/2) out of pad backing plate of brake lining (3) | When replacing the brake linings (3) at front right or if the front right brake wear sensor (S10/2) is defective. If the front right brake wear sensor (S10/2) has a problem ↓ Replace front right brake wear sensor (S10/2). |
|
| Measure | |||
| 8 | Check brake linings (3) for wear and condition | ||
| Model 156.952 | AP42.10-P-4252GLA | ||
| Model 176.052 If there are problems ↓ Replace brake linings (3) in sets. |
AP42.10-P-4252KN | ||
| 9 | Check brake disks (5) for wear and that they are in good condition | ||
| AP42.10-P-4258NK | |||
| If there are problems ↓ Replace brake disks (5) in sets. |
|||
| AR42.10-P-0220NKB | |||
| Check | |||
| 10 | Check brake caliper (4) as well as dust boots and brake piston for leaktightness and damage | If there are problems ↓ Replace brake caliper (4) on front axle. |
|
| AR42.10-P-0070NKB | |||
| Clean | |||
| 11 | Clean contact surfaces of brake linings (3) on brake caliper (4) and brake piston | Do not use sharp-edged or pointed objects. The dust boots of the brake piston could get damaged. |
|
| 12 | Press back brake piston using resetting device | When replacing the brake pads (3). |
|
| Figure | |||
With sluggish brake pistons ↓ |
Fig 3 | ||
| Replace brake caliper (4) on front axle. | |||
| AR42.10-P-0070NKB | |||
| 13 | Install in the reverse order | ||
| Initial startup | |||
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | ||
| 14 | Depress brake pedal several times until brake linings (3) lie against brake disks (5) | ||
| Check | |||
| 15 | Check fluid level in brake fluid reservoir, and correct if necessary | ||
| AP42.10-P-4210AK | |||
| 16 | Carry out brake test on the test stand | ||
| AP42.00-P-4290BA |
