Measuring and adjusting wheel lock - AR40.20-P-0345AC

MODEL 460, 461, 463

MODIFICATION NOTES

24.02.2015	Steering	Model 461 with VORDERACHSE 730 (except 730.308) except Spurweite 1475 mm with Bereifung 265/75 R16 BF-Goodrich All-Terrain, except Spurweite 1475 mm with Bereifung 265/75 R16 112T Goodyear Wrangler AT/SA Model 461 with VORDERACHSE 730.308 except Spurweite 1555 mm	BE46.10-P-1001-04A
24.02.2015	Steering	Model 461 with VORDERACHSE 730.308 with Spurweite 1555 mm Model 461 with Spurweite 1475 mm with Bereifung 265/75 R16 112T Goodyear Wrangler AT/SA	BE46.10-P-1001-04A
24.02.2015	Steering	Model 463 with VORDERACHSE 730 (except 730.308) Model 463 with VORDERACHSE 730.308 except with Spurweite 1555 mm	BE46.10-P-1001-04A
24.02.2015	Steering	Model 463 with VORDERACHSE 730.308 with Spurweite 1555 mm	BE46.10-P-1001-04A
02.03.2015	Steering	Model 461 Spurweite 1475 mm with Bereifung 265/75 R16 BF-Goodrich All-Terrain	BE46.10-P-1001-04A

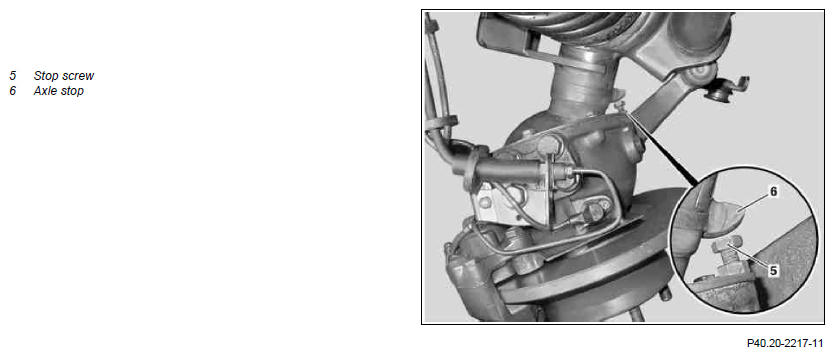

Fig 1: Identifying Stop Screw And Axle Stop

Courtesy of MERCEDES-BENZ USA

	Measure, adjust
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
1	Perform wheel alignment check		AR40.20-P-0200AC
2	Turn the steering to full left lock	The maximum steering angle must always be measured relative to the inner wheel. The measurement must not be performed when the engine is running, as otherwise the hydraulic limiter will prevent the mechanical limit stop from being reached.
3	Measure actual value for the maximum steering angle of the left front wheel	Model 460, 461, 463 Read off the actual value for the maximum steering angle on the scale of the turnplate or on the display of the electronic measuring system. With standard tires the actual value may only deviate from the specified value within the tolerance. If the maximum steering angle has to be readjusted: ↓ Undo the locknut, turn the stop screw (5) in or out to match the required adjustment and tighten the locknut again. Grease the stop screw (5) lightly.
		Steering angle	*BE46.10-P-1001-04A
		Long-life grease	*BR00.45-Z-1001-06A
4	Check the clearance between the left front tire and the trailing arm	There must be a distance of approx. 2 cm between the left front tire and the trailing arm. Irrespective of the specified value the maximum steering angle must be corrected if necessary, in particular for tires which do not correspond to standard tires.
5	Turn the steering to full right lock
6	Measuring the actual value for the maximum steering angle of the right front wheel	Procedure as for the left side.
		Steering angle	*BE46.10-P-1001-04A
7	Checking the clearance between the right front tire and the trailing arm	Procedure as for the left side.
8	Check hydraulic limiter of steering gear and adjust if necessary	Model 460, 461 with steering 760.2
		Check and adjust hydraulic limiter Model 460, 461, 463 with steering gear 765.5	AR46.25-P-3090F
		The hydraulic limiter must always be used just before the mechanical front axle end stop. Otherwise, excess forces may be applied to the steering mechanical system.
		For each change in maximum wheel angle, e.g. when fitting larger-sized tires, the hydraulic limiter of the steering gear has to be readjusted.

CHECK VALUES FOR STEERING ANGLE

Number	Designation			Model 460 with track width 1425 mm and tires 205 R16	Model 460 with track width 1425 mm and tires 225/75 R16
BE46.10-P-1001-04A	Steering angle	Specified value	∠°	35° 30'	35°
		Permissible tolerance	∠°	±30'	±30'

CHECK VALUES FOR STEERING ANGLE

Number	Designation			Model 460 with track width 1475 mm and tires 235/75 R17.5	Model 460 with track width 1425 mm and tires 7.00 R16, 7.50 R16, 235/85 R16
BE46.10-P-1001-04A	Steering angle	Specified value	∠°	33°	33°
		Permissible tolerance	∠°	±30'	±30'

CHECK VALUES FOR STEERING ANGLE

Number	Designation			Model 460 with track width 1475 mm (rim 7x15 ET 38) and tires 255/75 R16	Model 461 with front axle 730 (except 730.308) except track width 1475 mm with tires 265/70 R16 BF-Goodrich All-Terrain, except track width 1475 mm with tires 265/70 R16 112T Goodyear Wrangler AT/SA Model 461 with front axle 730.308 except track width 1555 mm
BE46.10-P-1001-04A	Steering angle	Specified value	∠°	35° 30'	35° 30'
		Permissible tolerance	∠°	±30'	±1°

CHECK VALUES FOR STEERING ANGLE

Number	Designation			Model 461 with front axle 730.308 with track width 1555 mm Model 461 with track width 1475 mm with tires 265/70 R16 112T Goodyear Wrangler AT/SA	Model 461 track width 1475 mm with tires 265/70 R16 BF-Goodrich All-Terrain
BE46.10-P-1001-04A	Steering angle	Specified value	∠°	32°	32°
		Permissible tolerance	∠°	±1°	±1°

CHECK VALUES FOR STEERING ANGLE

Number	Designation			Model 463 with front axle 730 (except 730.308) Model 463 with front axle 730.308 except with track width 1555 mm	Model 463 with front axle 730.308 with track width 1555 mm
BE46.10-P-1001-04A	Steering angle	Specified value	∠°	35° 30°	32°
		Permissible tolerance	∠°	±1°	±1°

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-06A	Long-life grease	A 000 989 63 51 11
