Remove/install anti-roll bar on rear axle - AR32.35-P-2210GX
MODEL 461
MODEL 463
MODIFICATION NOTES
| 11.10.04 | Torque of fixing bracket of stabilizer bar to trailing arm. | BA32.35-P-1001-01A |
Shown on right side of vehicle
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Raise vehicle | AR00.60-P-1000G | |

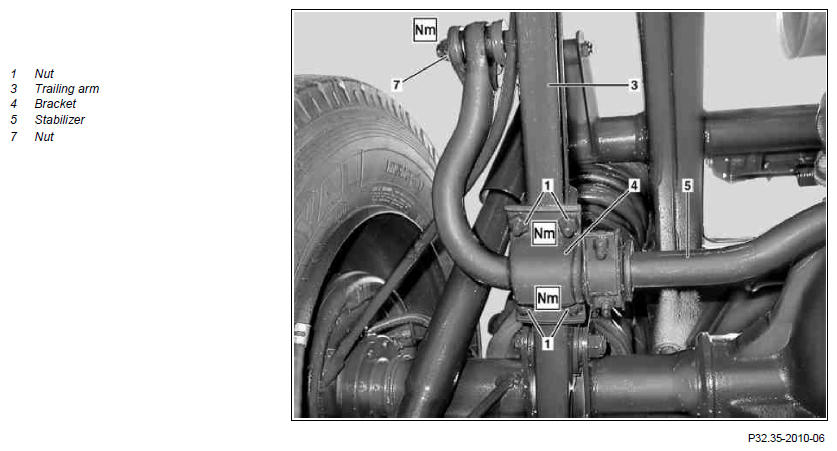

| 2 | Unscrew nuts (1) | ||
| BA32.35-P-1001-01A | |||
| 3 | Detach bracket (4) and mounting bar (2) from trailing arm (3) | ||

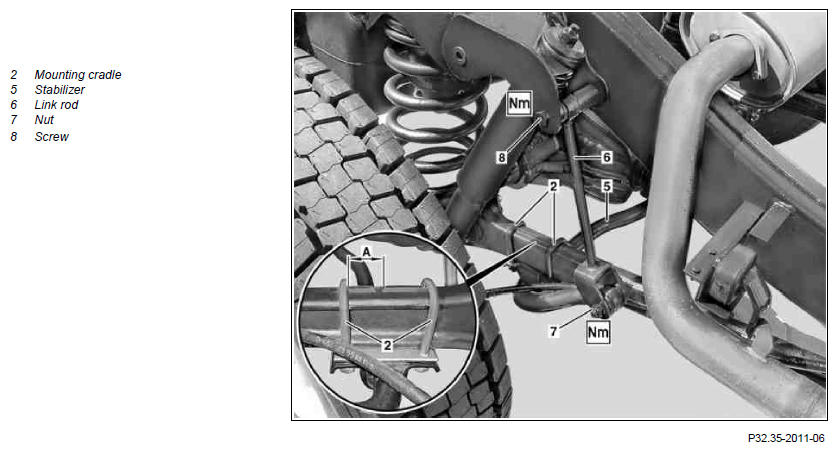

| 4 | Loosen bolt (8) and remove anti-sway bar (5) with link rod (6) | ||
| BA32.35-P-1003-01A | |||
| 5 | Detach link rod (6) from anti-sway bar (5) | When replacing stabilizer bar (5) |
|
| *BA32.35-P-1002-01A | |||
| Check | |||
| 6 | Check rubber mounts for wear and damage and replace if necessary | ||
| 7 | Install in the reverse order |
STABILIZER BAR/TORSION BAR
| Number | Designation | Model 460, 461 Model 463 up to model year 2019 |
Model 463 as of model year 2019 | |
|---|---|---|---|---|
| BA32.35-P-1001-01A | Nut, stabilizer bar mounting bar to trailing arm | Nm | 50 | - |
STABILIZER BAR/TORSION BAR
| Number | Designation | Model 460, 461 Model 463 up to model year 2019 |
Model 463 as of model year 2019 | |
|---|---|---|---|---|
| BA32.35-P-1002-01A | Nut, stabilizer bar to stabilizer bracket | Nm | 90 | - |
STABILIZER BAR/TORSION BAR
| Number | Designation | MODEL 460, 461, 463 | Model 463 as of model year 2019 | |
|---|---|---|---|---|
| BA32.35-P-1003-01A | Nut, stabilizer bracket to frame | Nm | 90 | - |
