Remove/install trailing arm - AR33.15-P-0100GW

MODEL 463 as of model year 2013

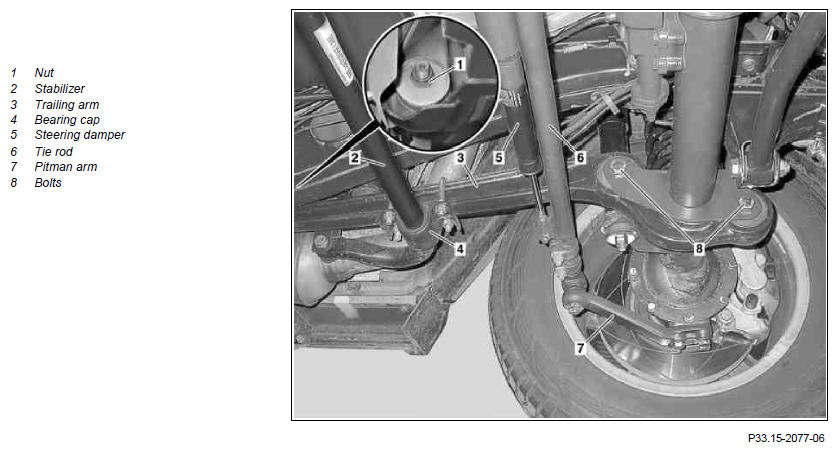

Fig 1: Trailing Arm Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Raise vehicle		AR00.60-P-1000G
2	Remove bearing cap (4) on stabilizer bar (2) at right and left and pull the stabilizer bar (2) downwards	Nut, stabilizer bar mounting bar to trailing arm	*BA32.35-P-1001-01A
3	Remove retaining bracket for level sensor and place level sensor linkage to one side	Model 463 as of model year 2016 When removing left trailing arm (3).
4	Remove steering damper (5) from tie rod (6)	Model 463 as of model year 2013 up to model year 2016 Installation:  The cotter pin must be replaced.
5	Remove tie rod (6) from pitman arm (7)	The cotter pin must be replaced.
		Castle nut, drag link to pitman arm	*BA46.40-P-1001-04B
		Puller	Figure
6	Unscrew nut (1)	Nut, trailing arm to frame	*BA33.15-P-1001-01A
7	Remove bolt (8)	Bolt/nut, trailing arm to axle	*BA33.15-P-1002-01A
8	Remove trailing arm (3)
	Check
9	Check condition of elastomer bearings at stabilizer bar (2)	If there is a problem ↓ Replace elastomer bearings at stabilizer bar (2)
10	Check condition of elastomer bearings at trailing arm (3)	If there is a problem ↓ Replace elastomer bearings at trailing arm (3)
			AR33.15-P-0101GW
11	Install in the reverse order

STABILIZER BAR

Number	Designation		Model 460, 461, 463
BA32.35-P-1001-01A	Nut, stabilizer bar mounting bar to trailing arm	Nm	50

TRAILING ARMS, TRANSVERSE CONTROL ARMS

Number	Designation		Model 460, 461, 463
BA33.15-P-1001-01A	Nut, trailing arm to frame	Nm	130

TRAILING ARMS, TRANSVERSE CONTROL ARMS

Number	Designation		Model 460, 461, 463
BA33.15-P-1002-01A	Bolt/nut, trailing arm to axle	Nm	225

DRAG LINK

Number	Designation		Model 460, 461, 463
BA46.40-P-1001-04B	Castle nut, drag link to pitman arm	Nm	140

Fig 2: Identifying Puller (601 589 04 33 00)

Courtesy of MERCEDES-BENZ USA
